LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2006
>>
STS RWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C500 - C599
>>
C500
C500

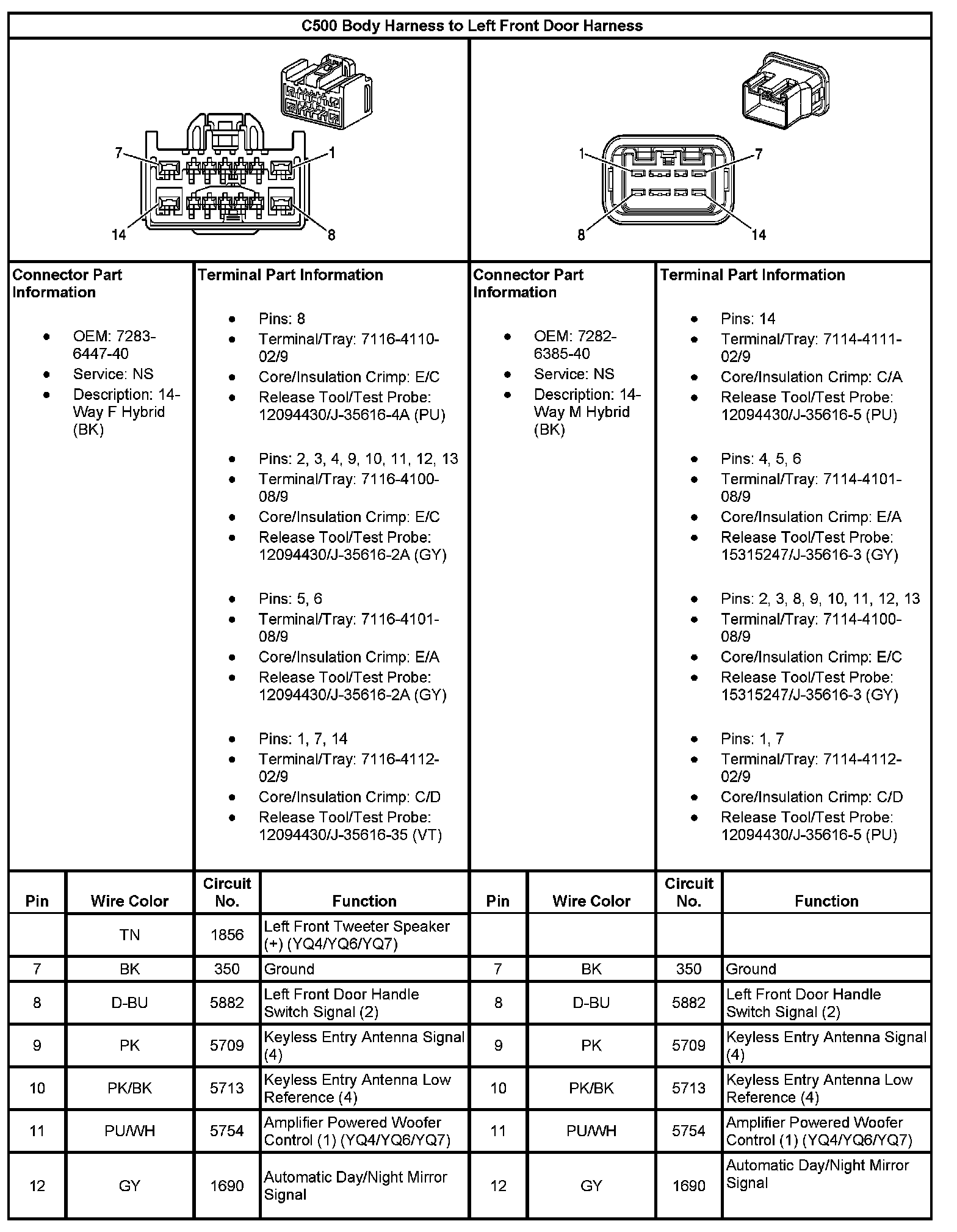

C500 Body Harness To Left Front Door Harness (Part 1):

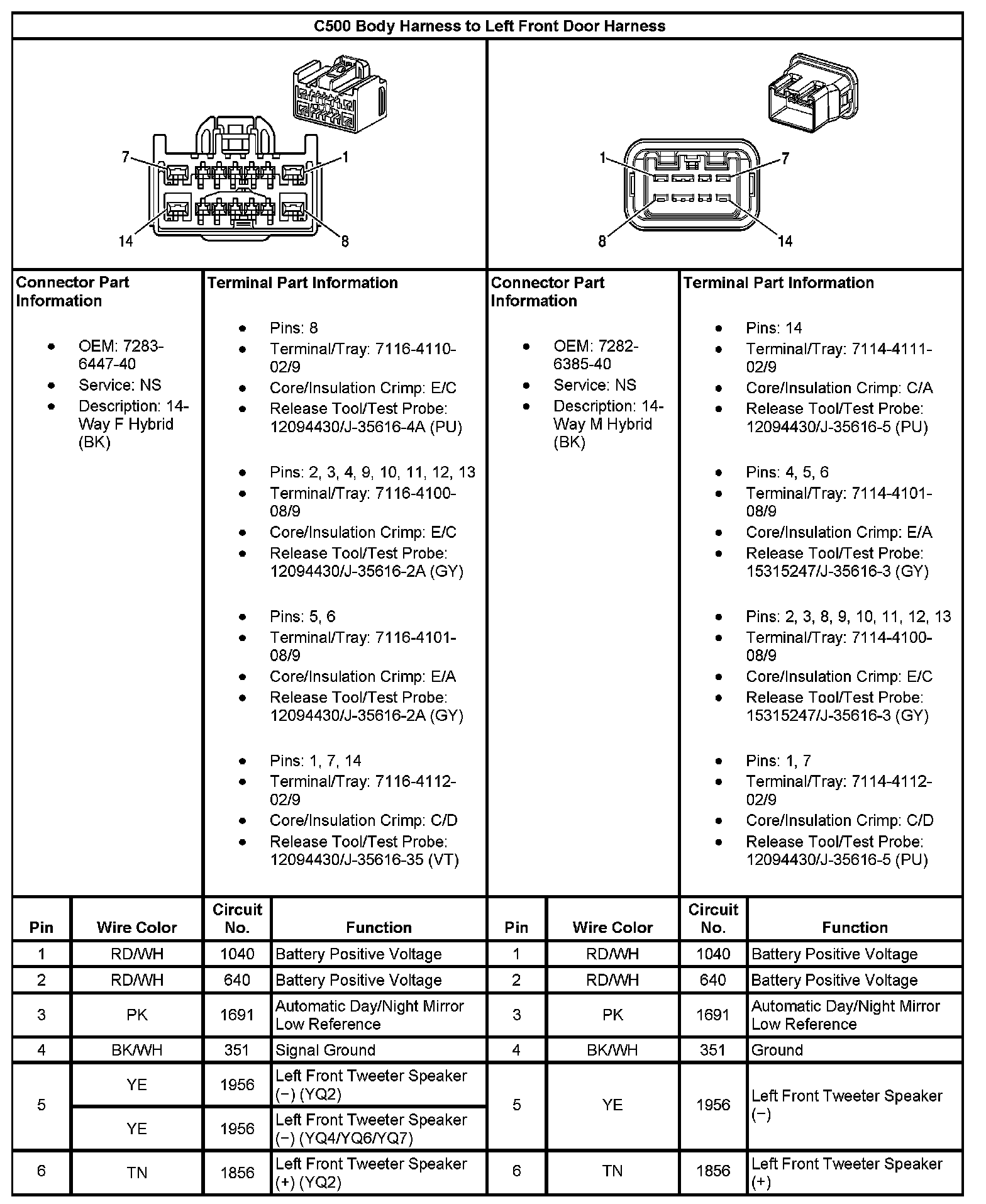

C500 Body Harness To Left Front Door Harness (Part 2):

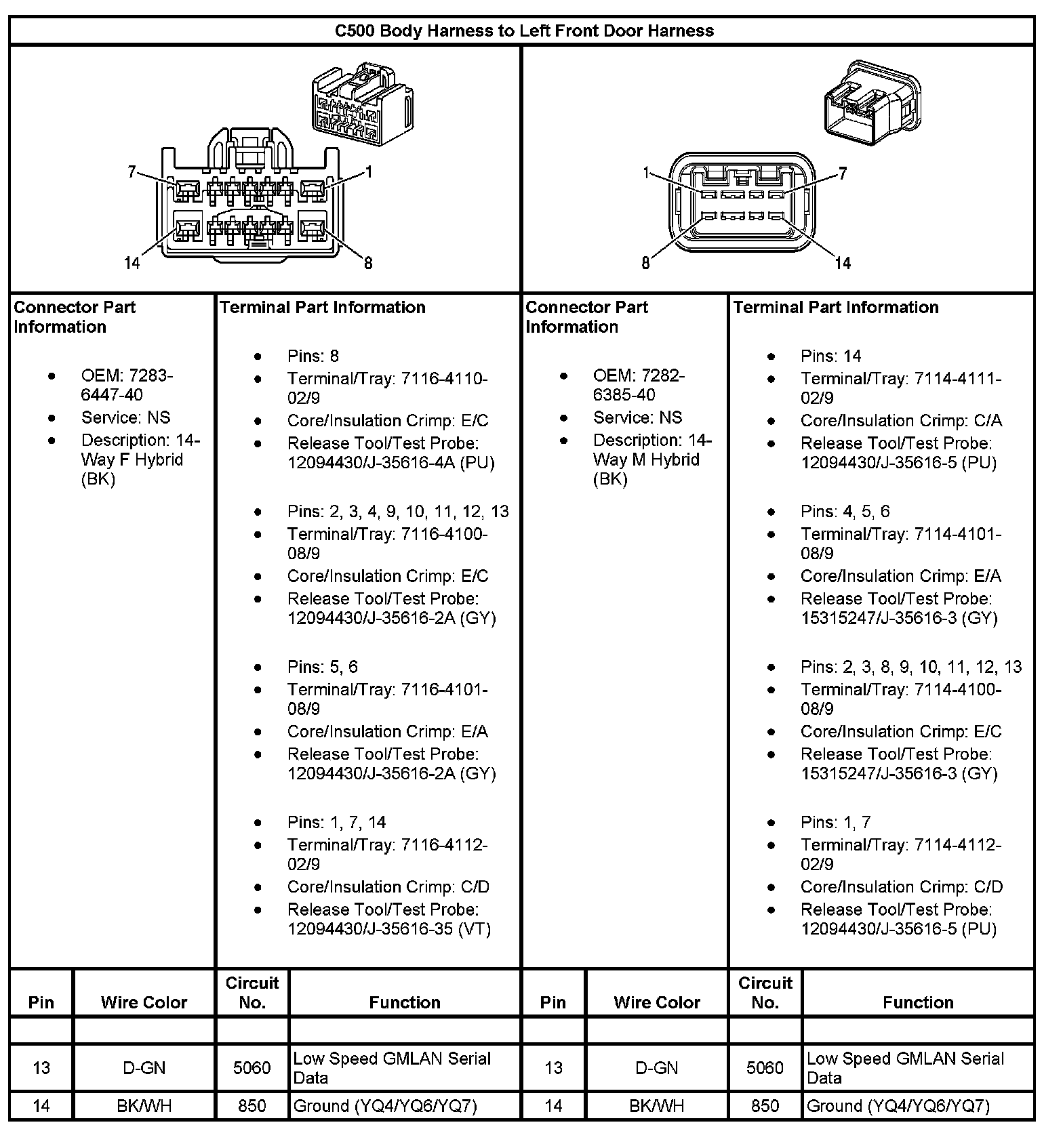

C500 Body Harness To Left Front Door Harness (Part 3):
