Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C300 - C399 >> C313

C313

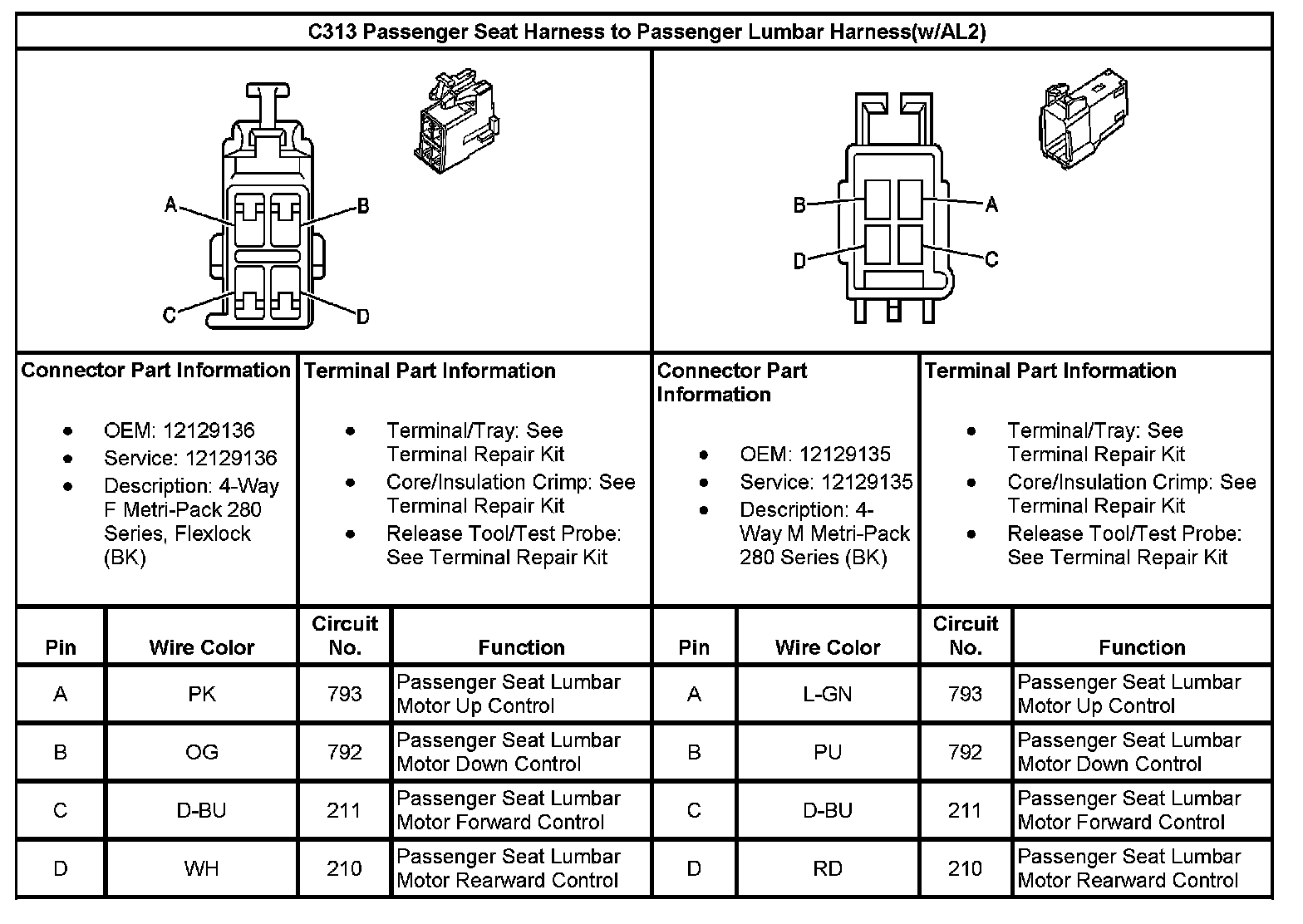

C313 Passenger Seat Harness To Passenger Lumbar Harness(With RPO Code AL2):
