C305

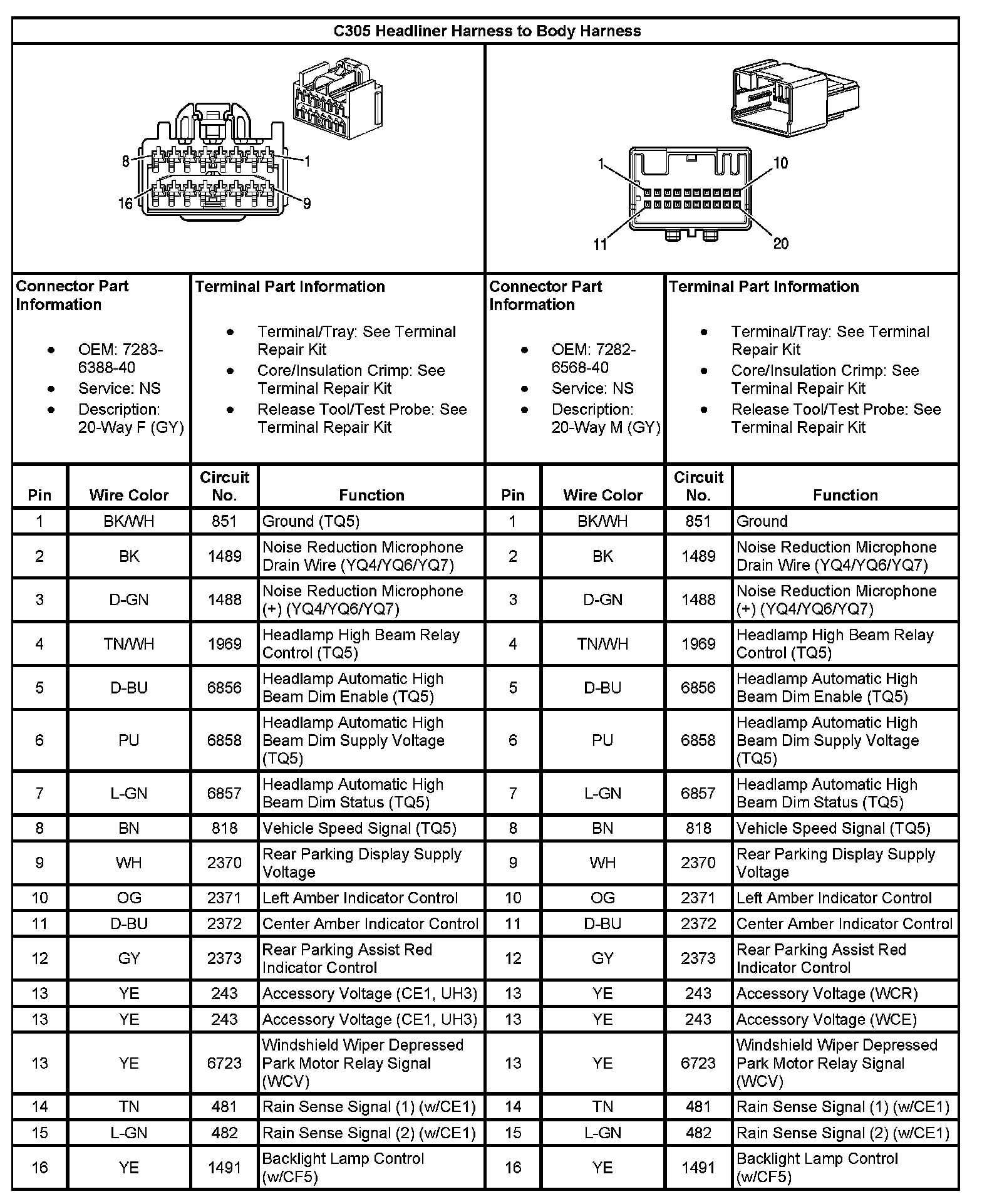

C305 Headliner Harness To Body Harness (Part 1):

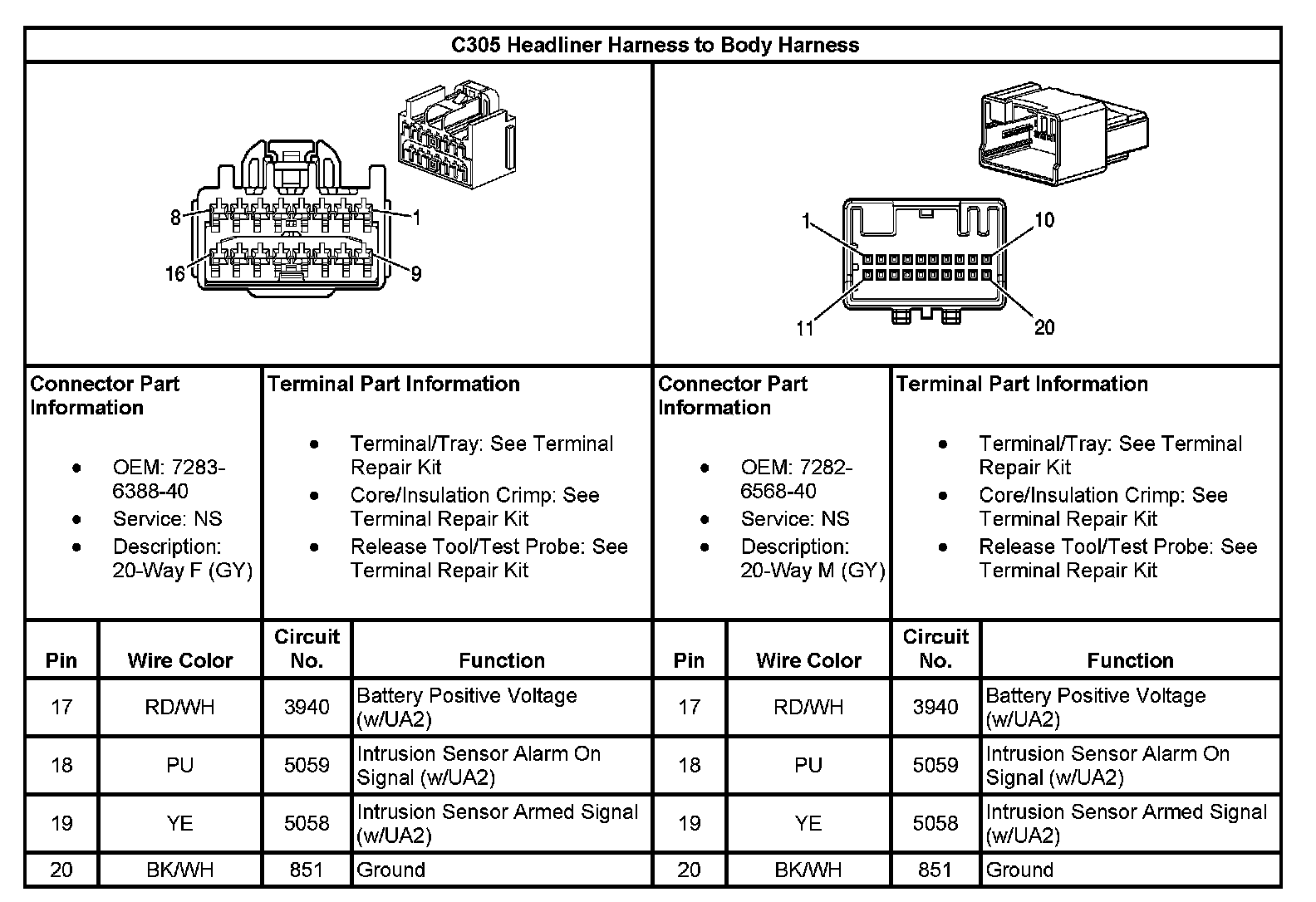

C305 Headliner Harness To Body Harness (Part 2):
