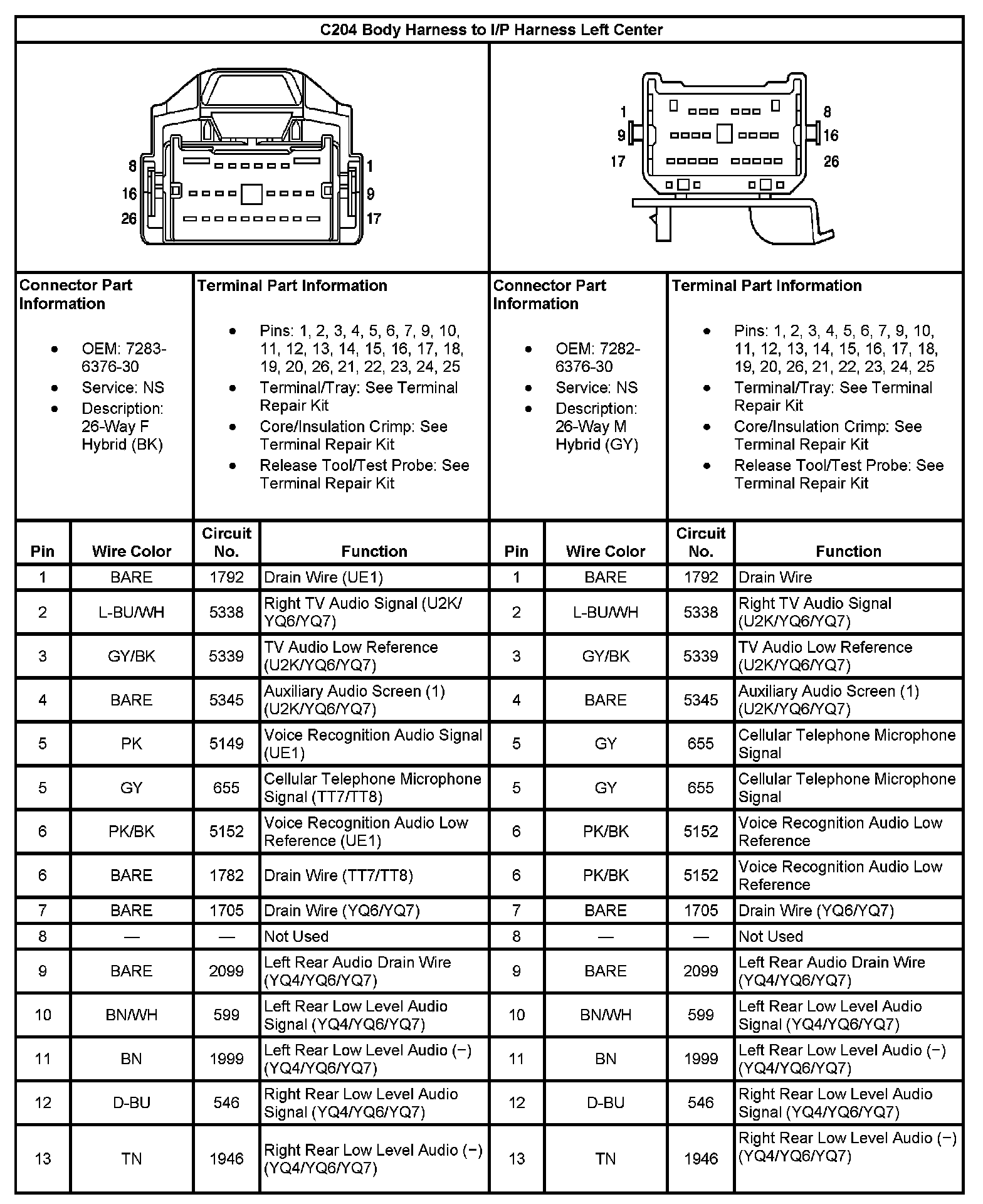

C204 Body Harness To I/P Harness Left Center (Part 1):

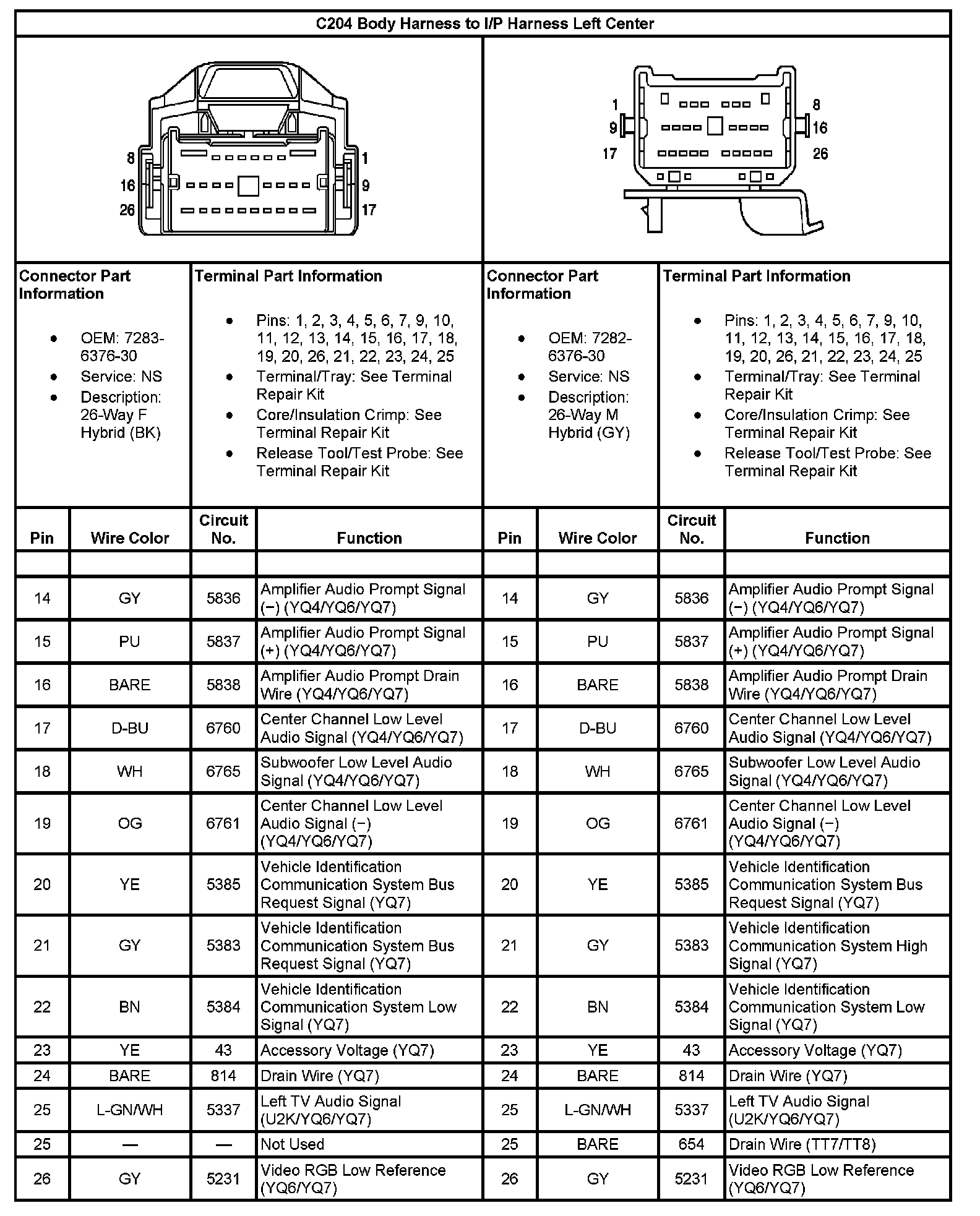

C204 Body Harness To I/P Harness Left Center (Part 2):
