Fuse Block - Underhood C1

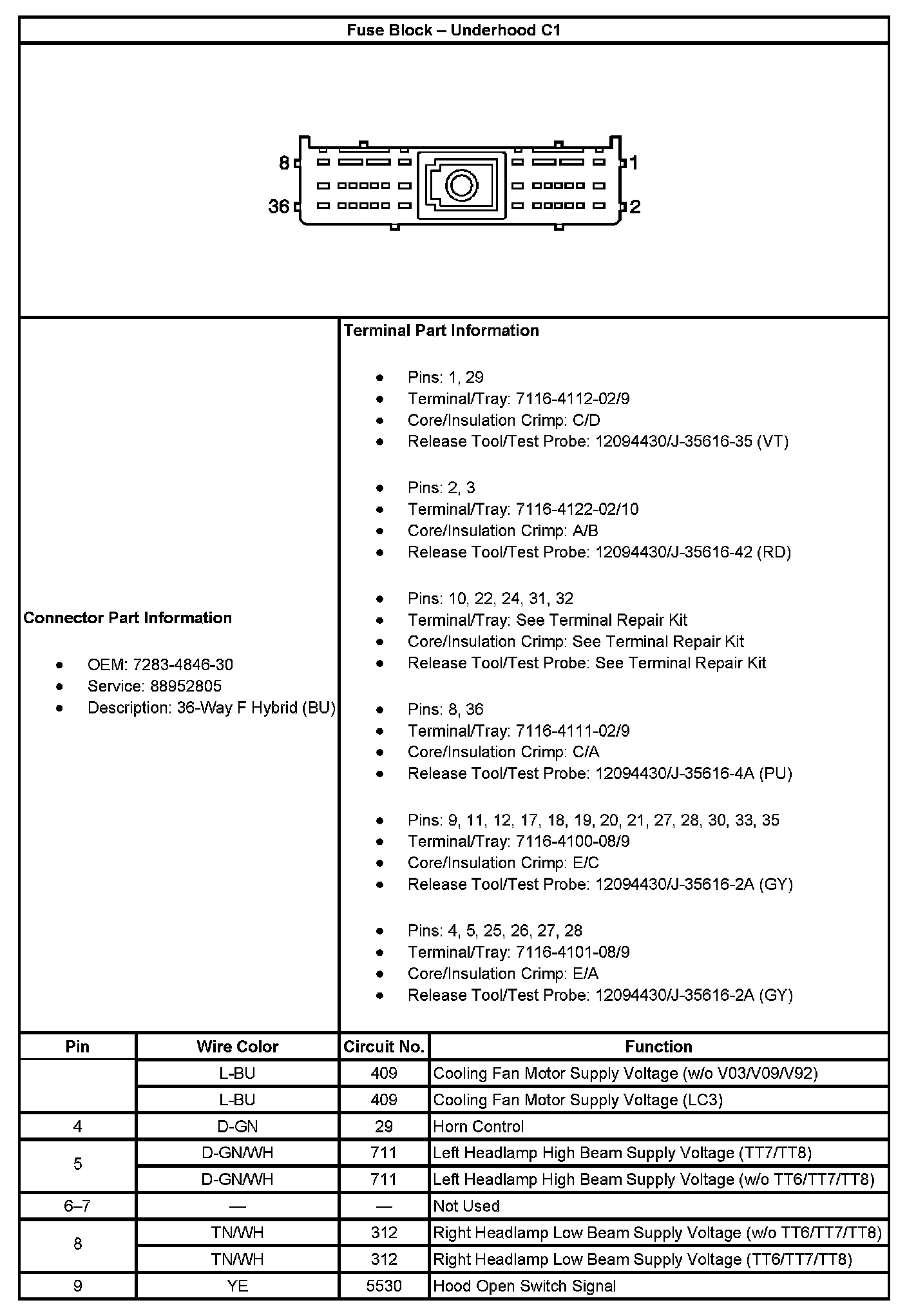

Fuse Block - Underhood C1 (Part 1):

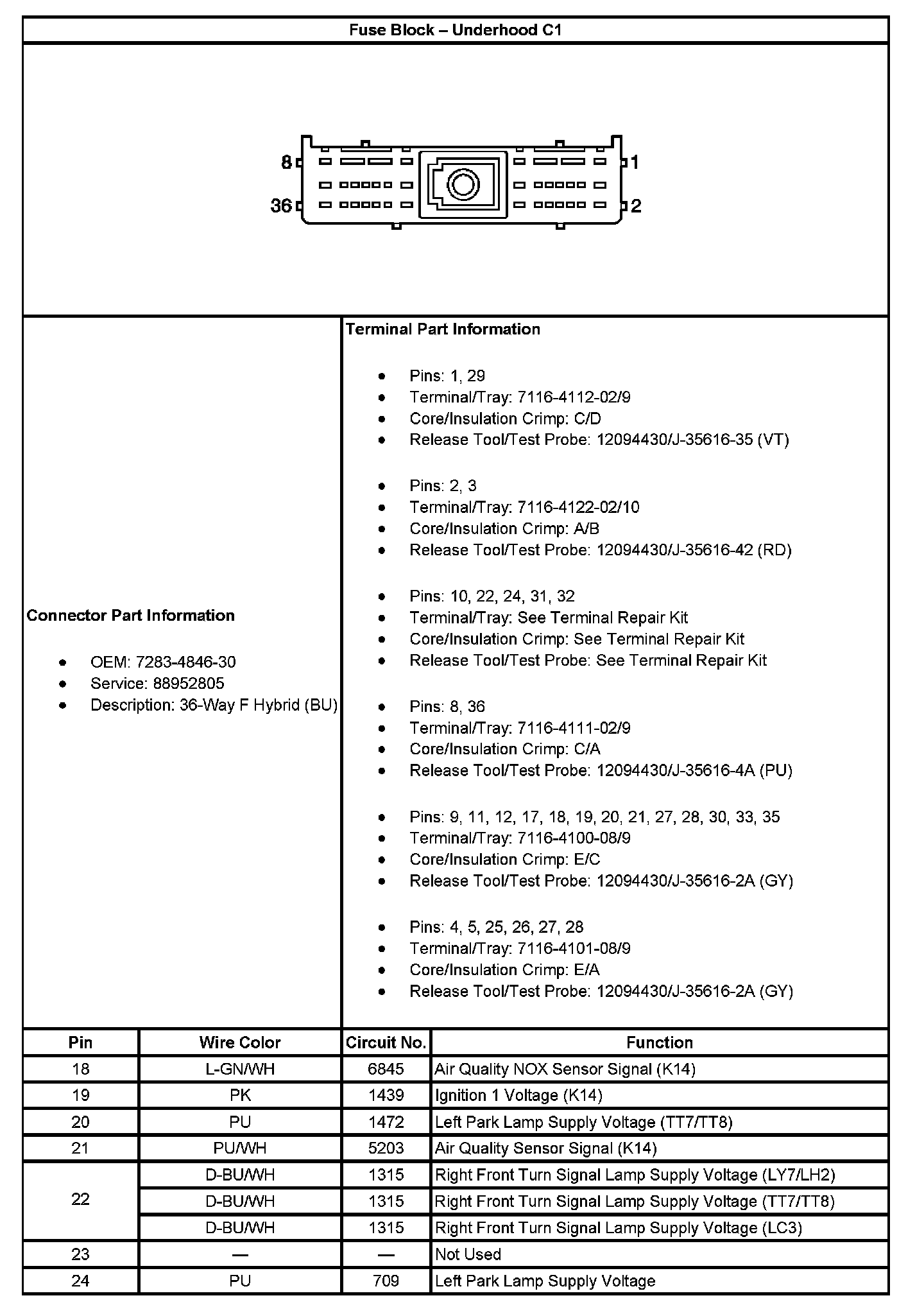

Fuse Block - Underhood C1 (Part 2):

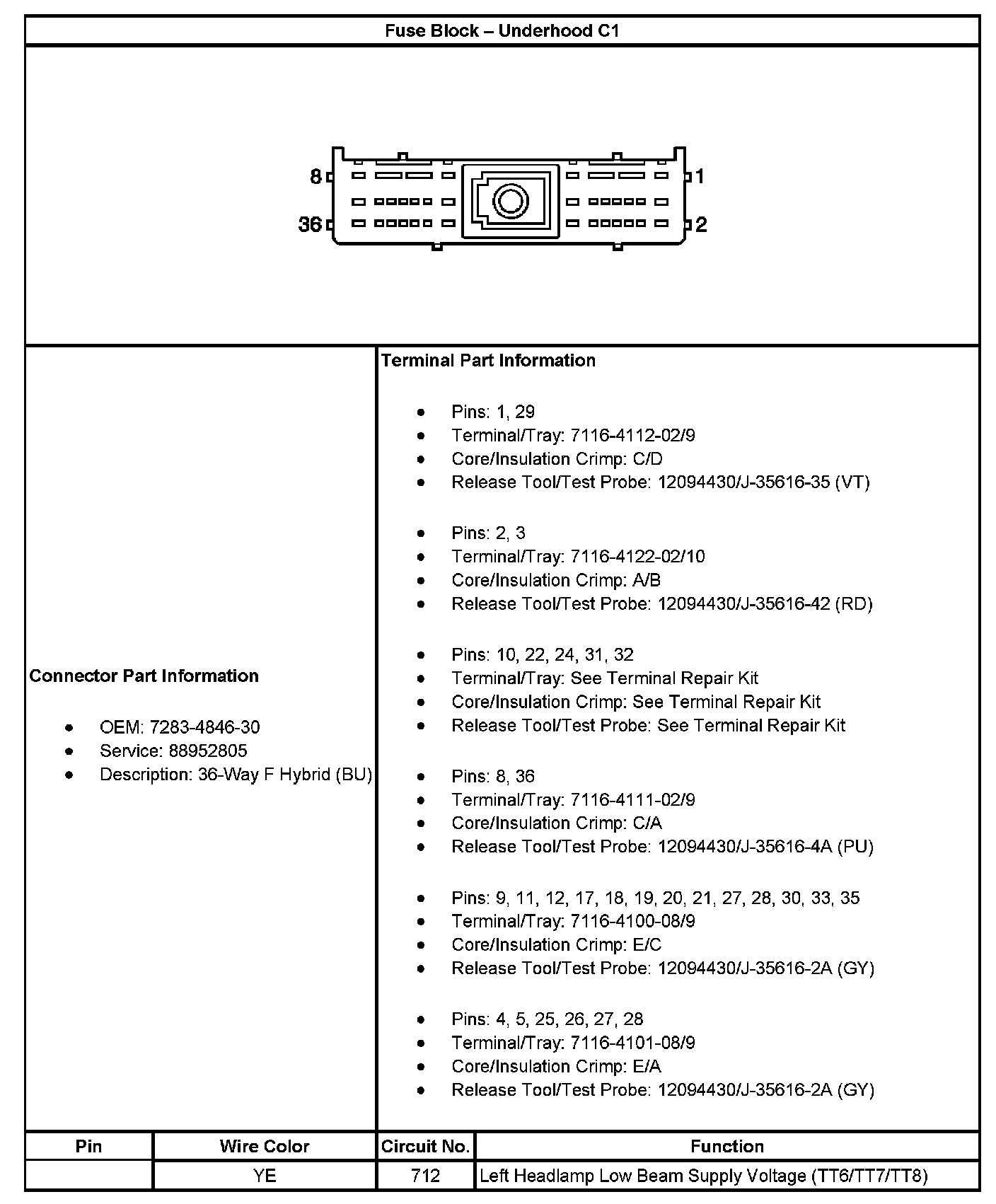

Fuse Block - Underhood C1 (Part 3):

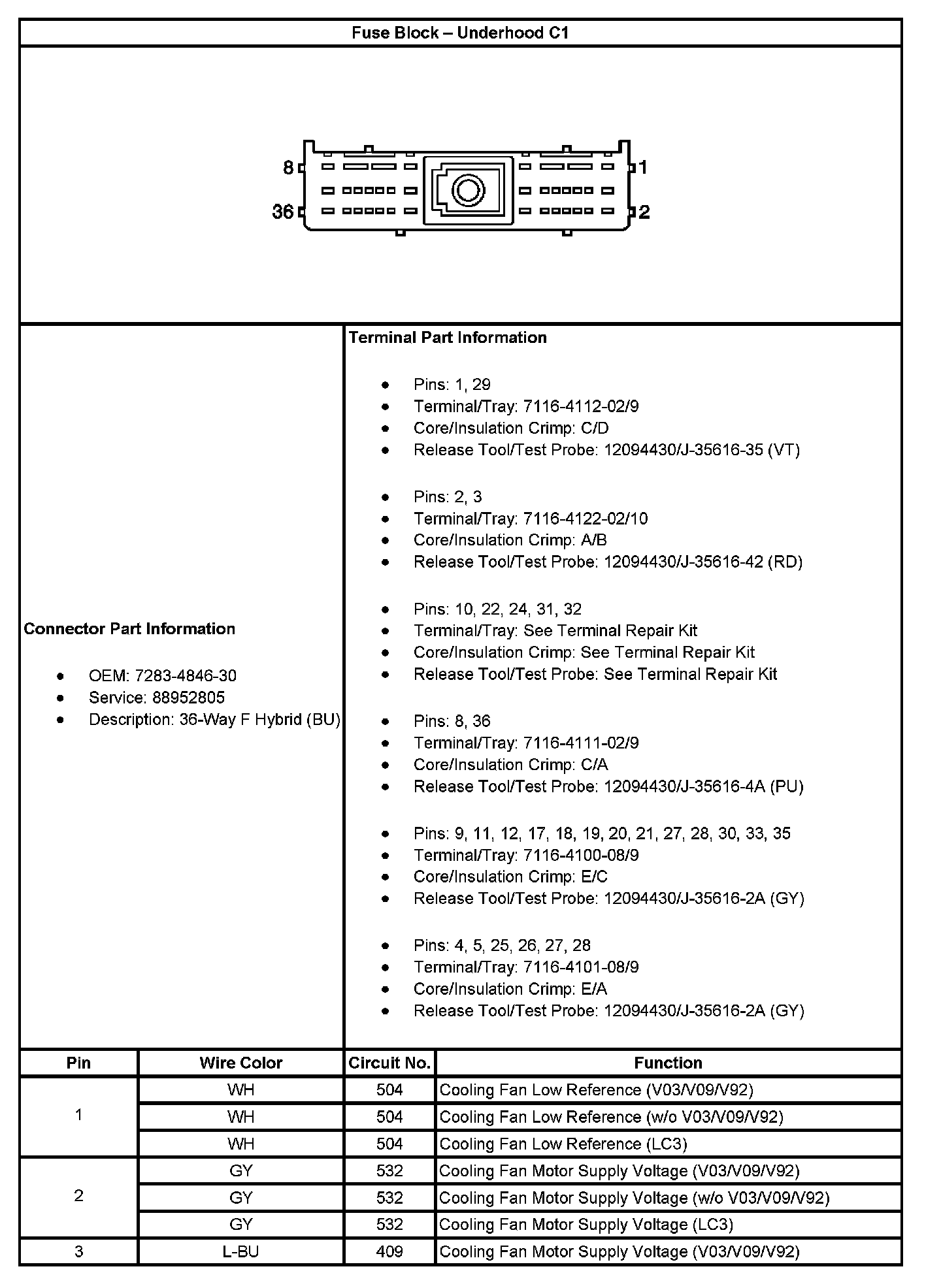

Fuse Block - Underhood C1 (Part 4):

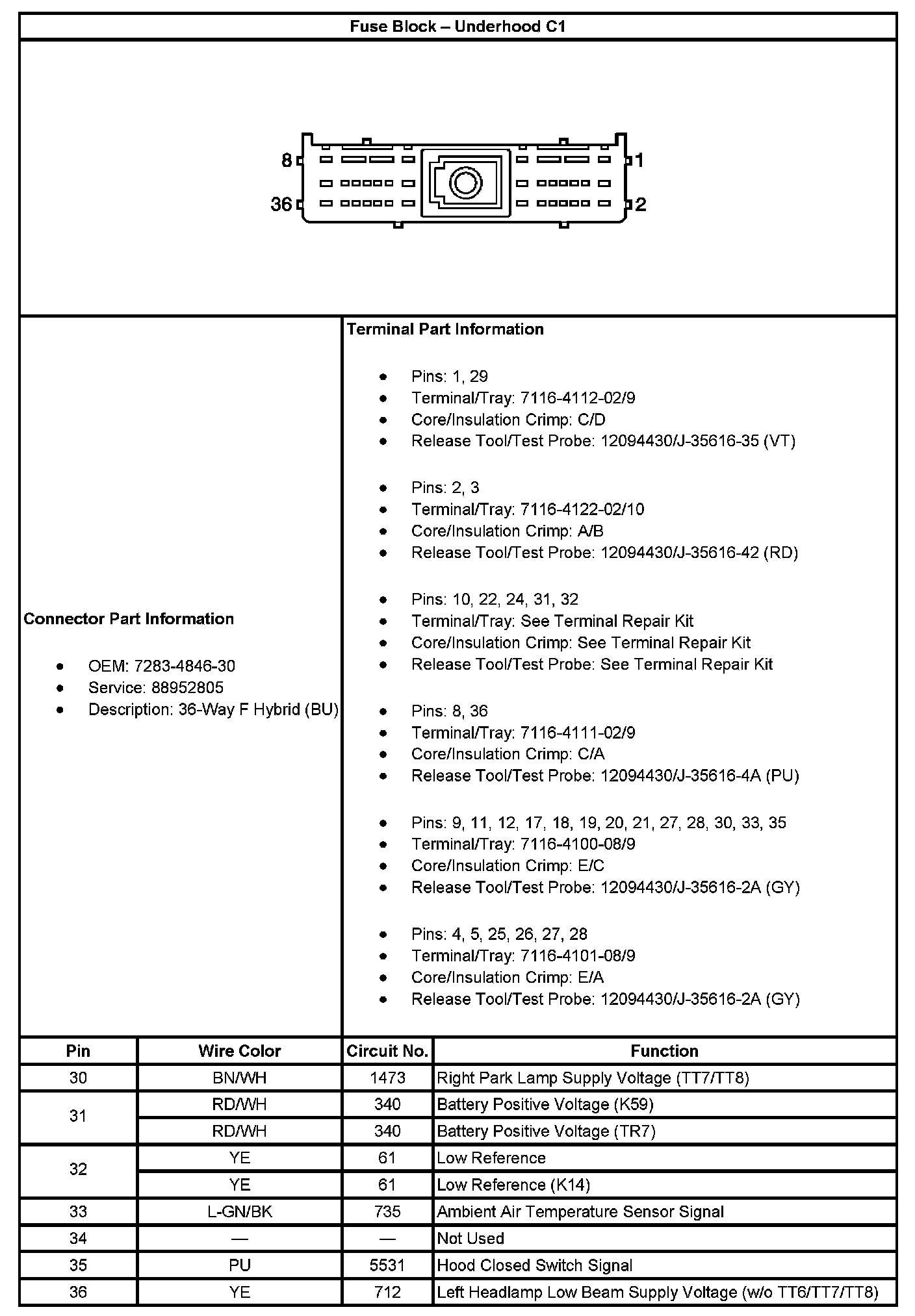

Fuse Block - Underhood C1 (Part 5):

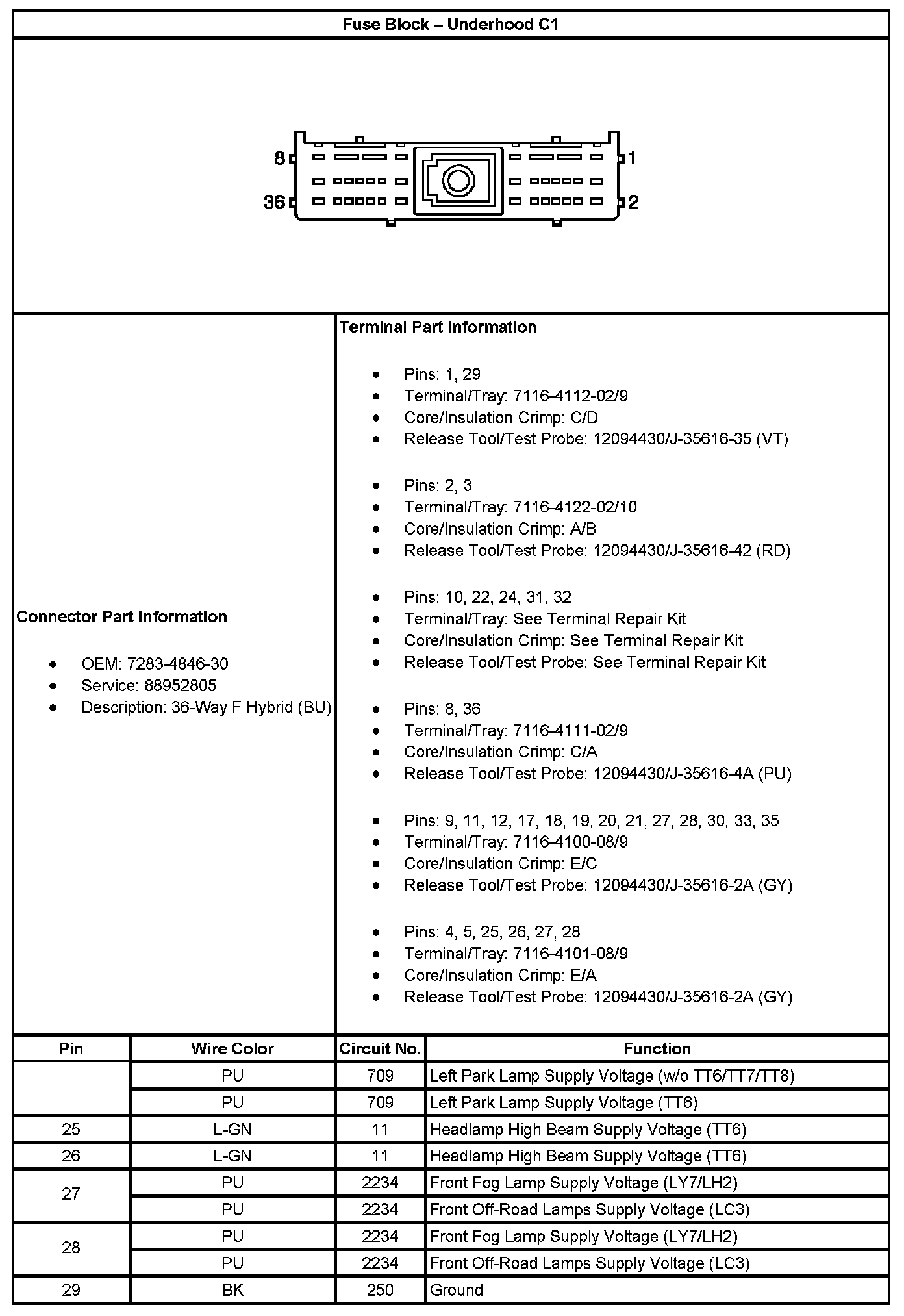

Fuse Block - Underhood C1 (Part 6):

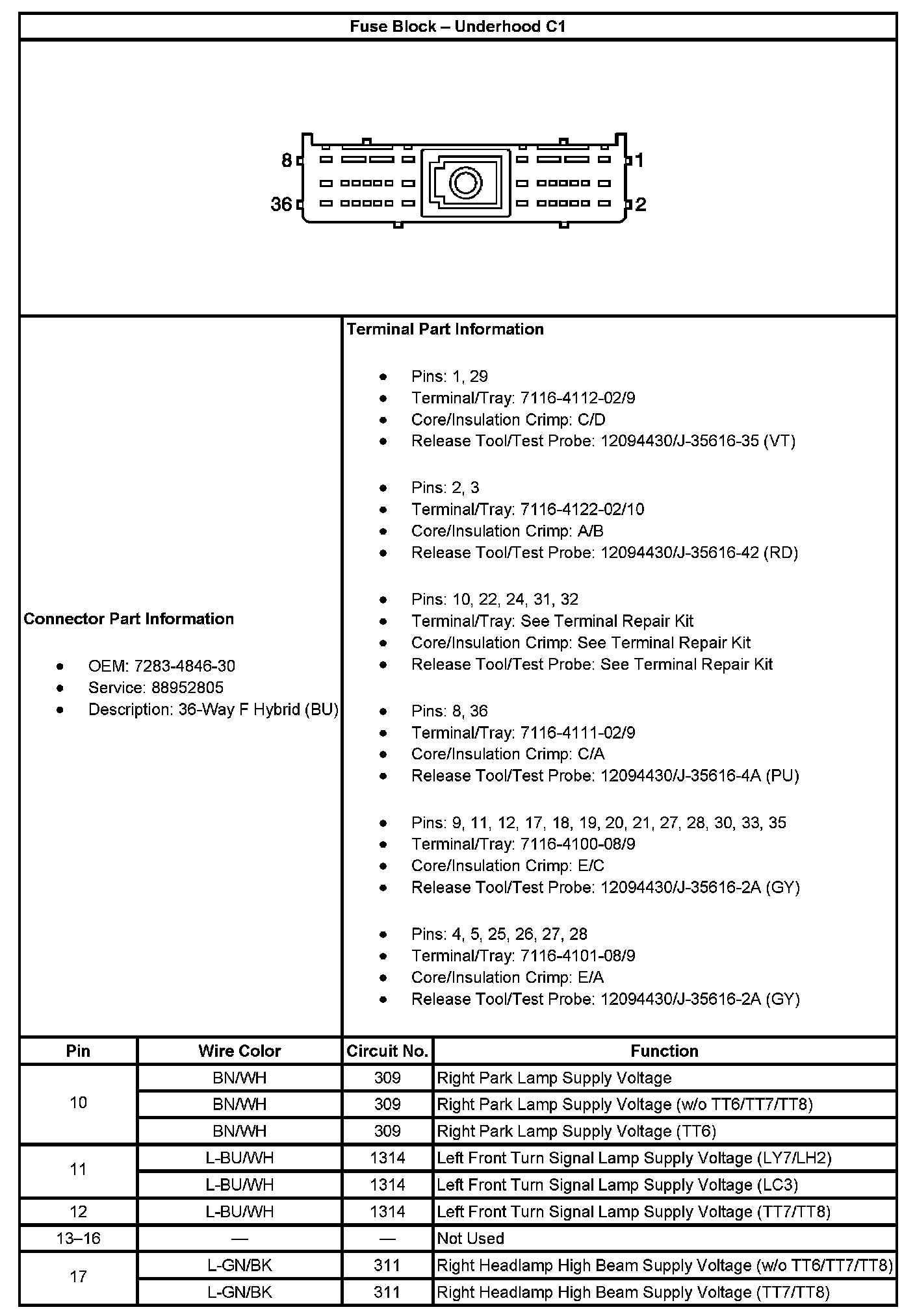

Fuse Block - Underhood C1 (Part 7):
