6L80-E - Automatic Transmission
6L80-E - Automatic Transmission
Fluid Pan

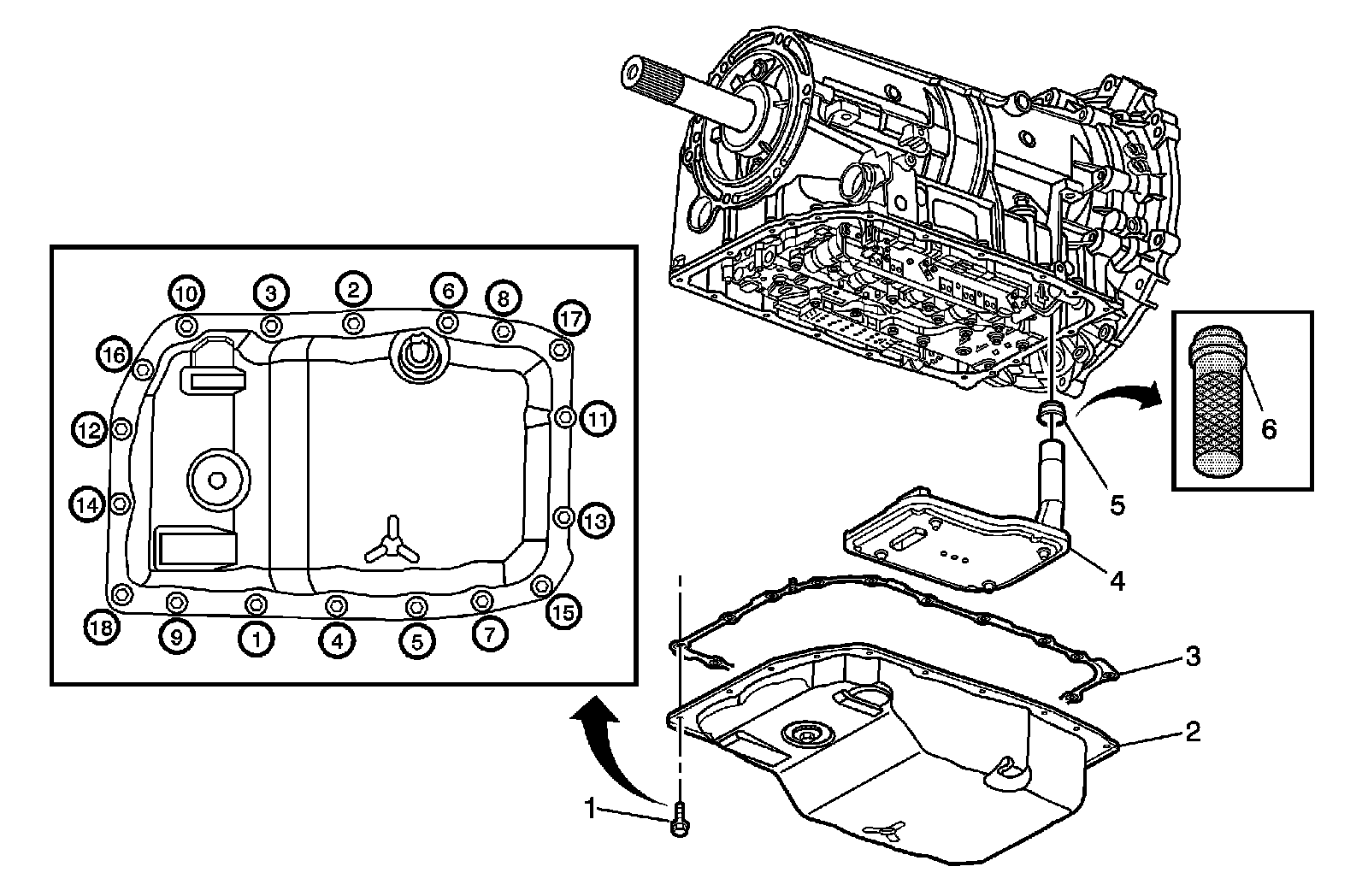

Tighten the bolts in the sequence shown
Tighten to
9 Nm (80 in.lbs.)
