Seat Belt: Service and Repair

FRONT SEAT BELT REPLACEMENT

REMOVAL PROCEDURE
1. Remove the center pillar garnish molding.

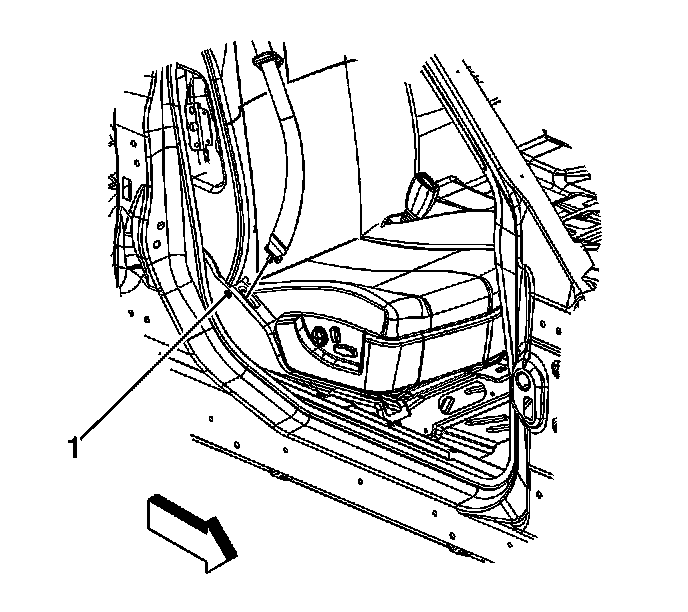

2. Insert a pointed tool into the hole (1) in order to release the seat belt from the seat.




3. Remove the bolts securing the seat belt assembly to the vehicle.

INSTALLATION PROCEDURE




1. Install the bolts securing the seat belt assembly to the vehicle.
2. Install the center pillar garnish molding.




3. Reinstall the seat belt to the seat.
