Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Diagrams >> Inflatable Restraint Instrument Panel Module

Inflatable Restraint Instrument Panel Module

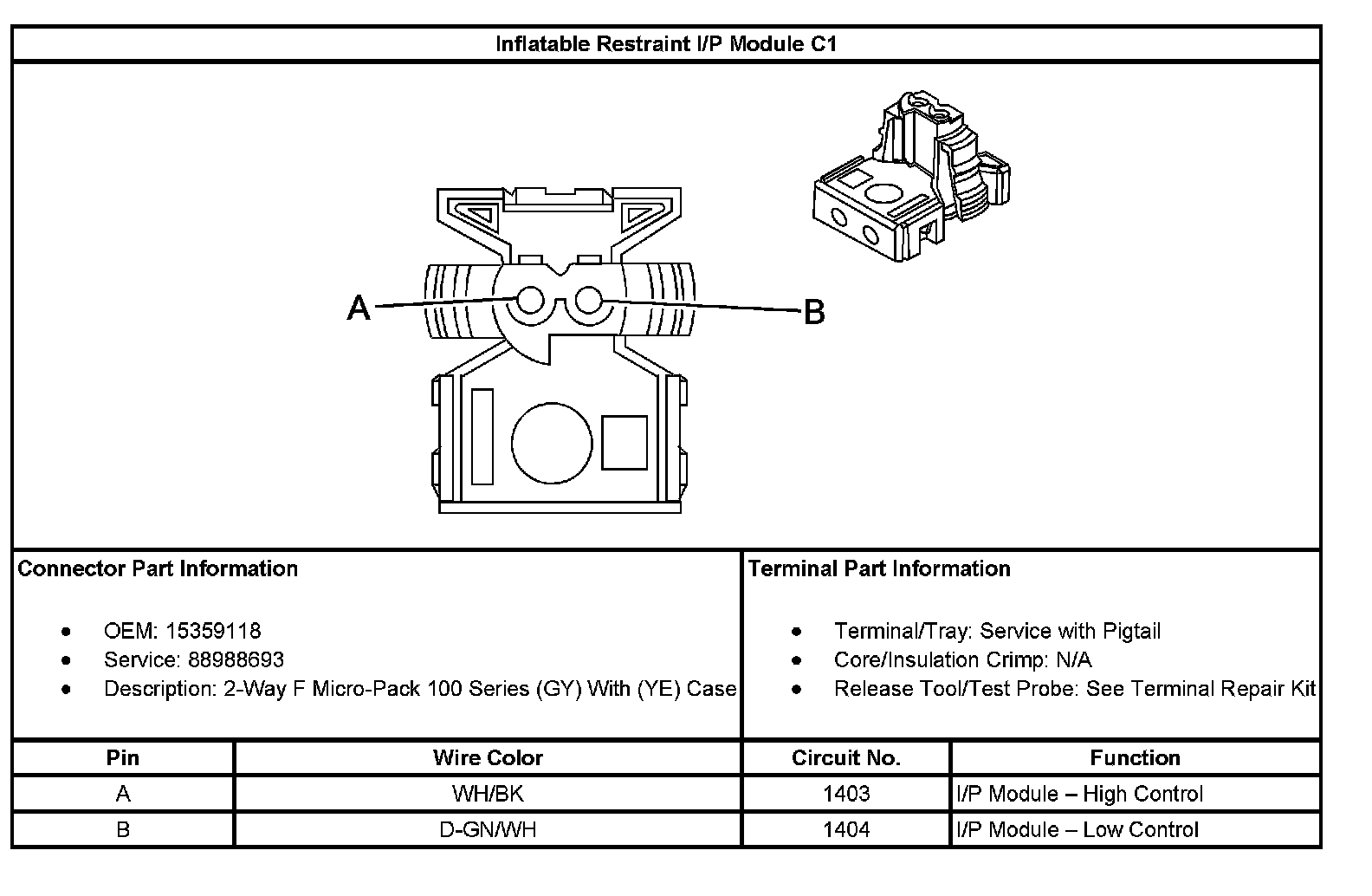

Inflatable Restraint I/P Module C1:

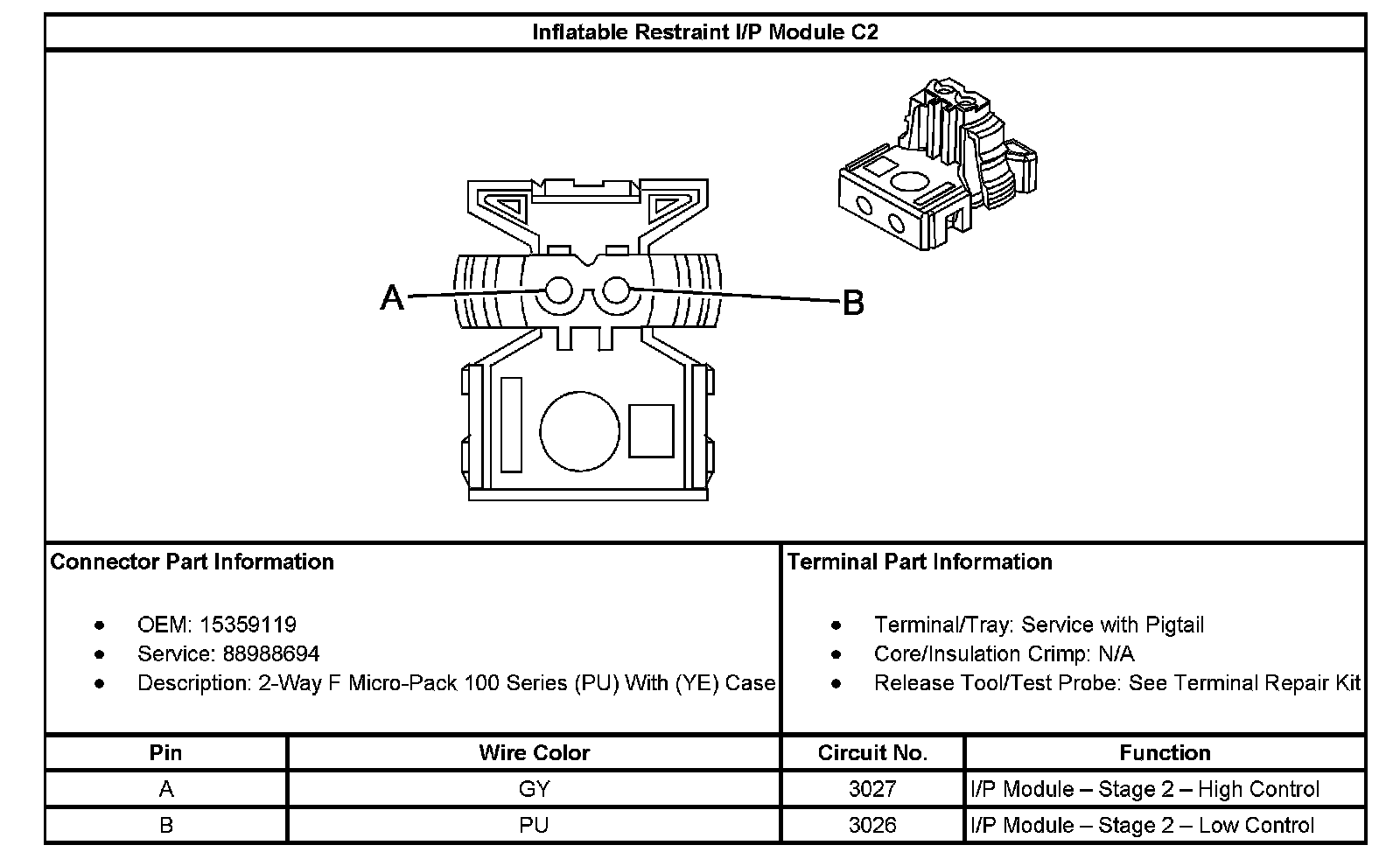

Inflatable Restraint I/P Module C2:
