Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag Deactivation Indicator >> Diagrams

Air Bag Deactivation Indicator: Diagrams

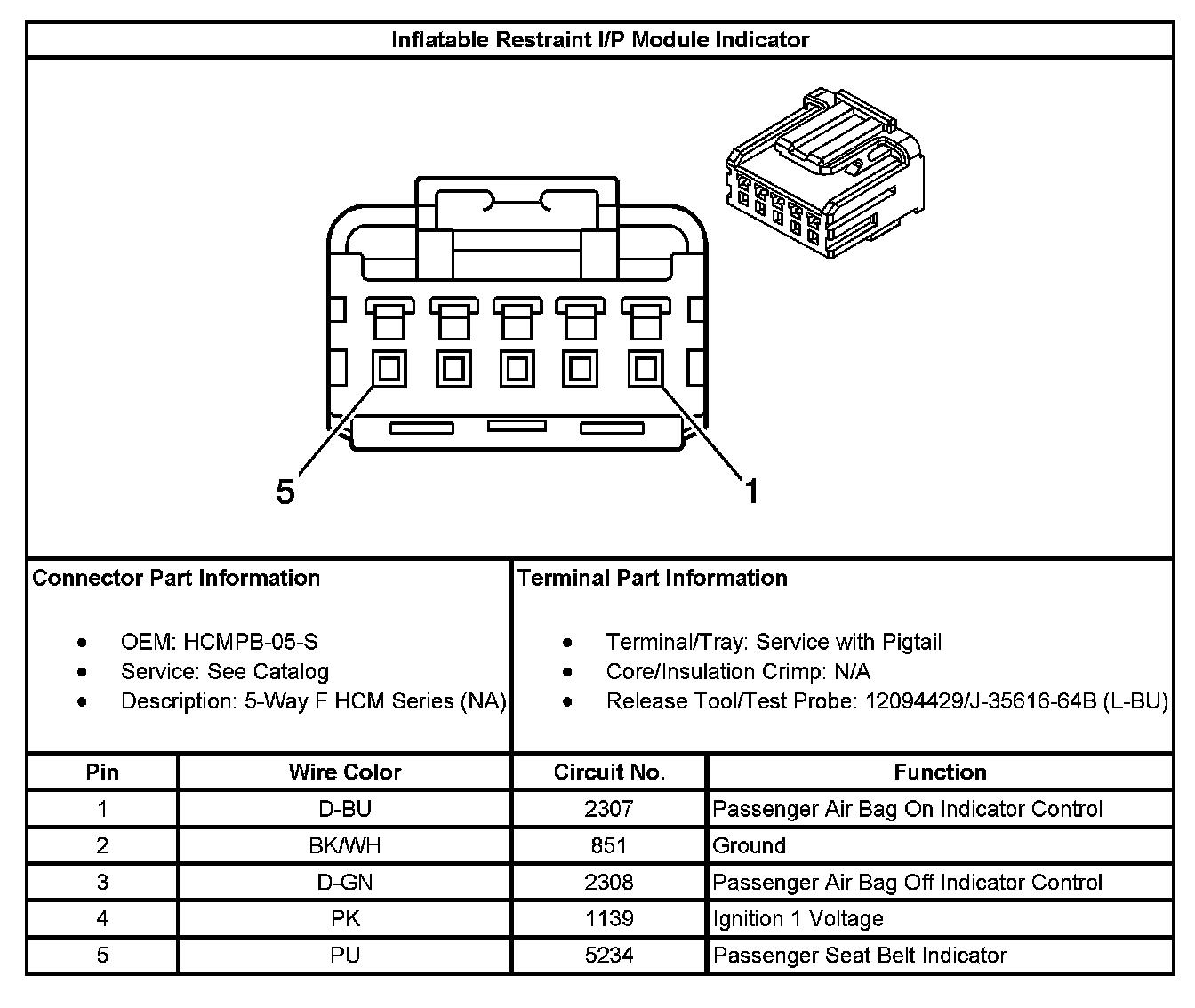

Inflatable Restraint I/P Module Indicator:
