Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> I/P Views >> I/P Harness - Left

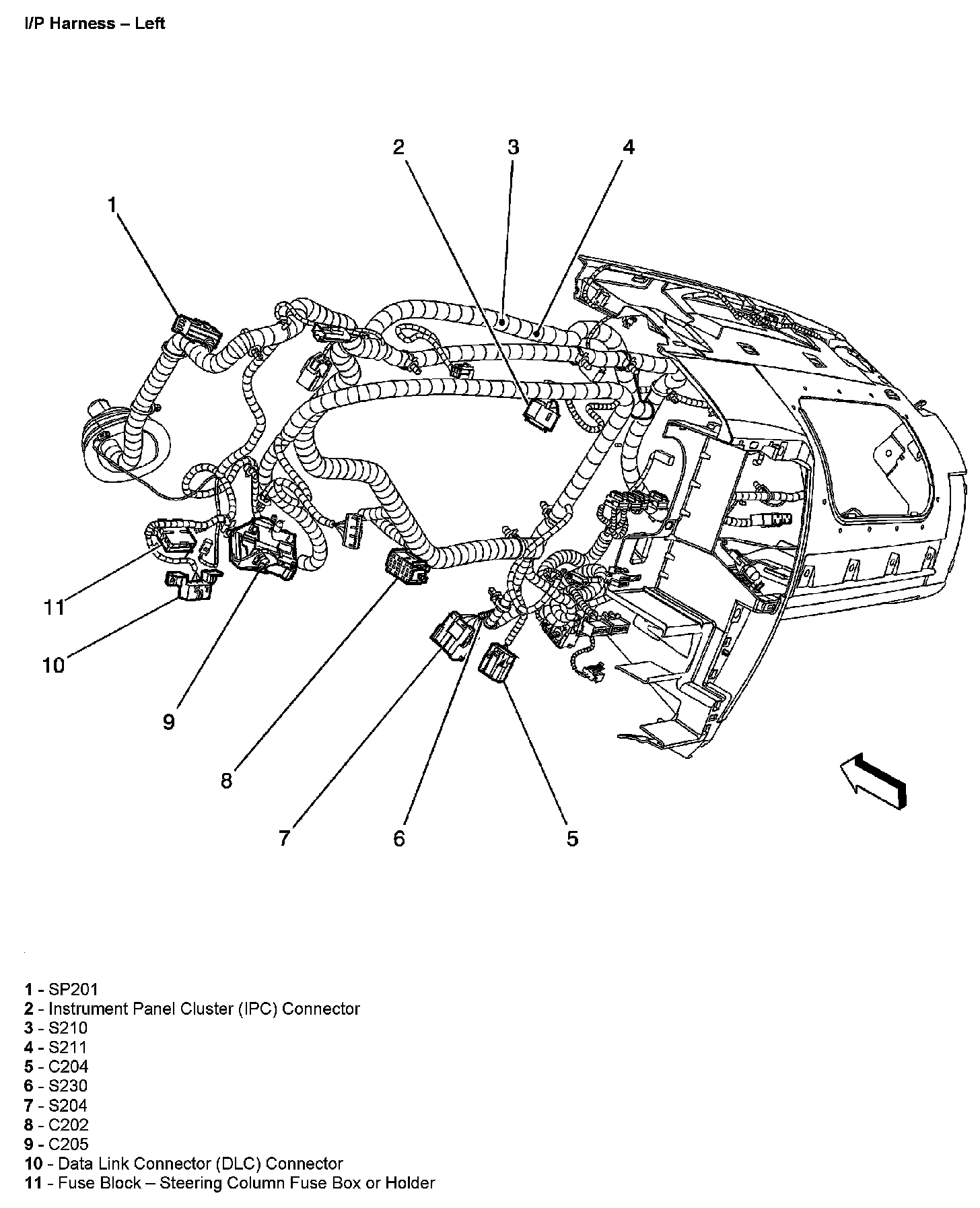

I/P Harness - Left

I/P Harness - Left:
