Cadillac
>>
2006
>>
STS RWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Right Rear Fuse Block Label
Right Rear Fuse Block Label
Location View:

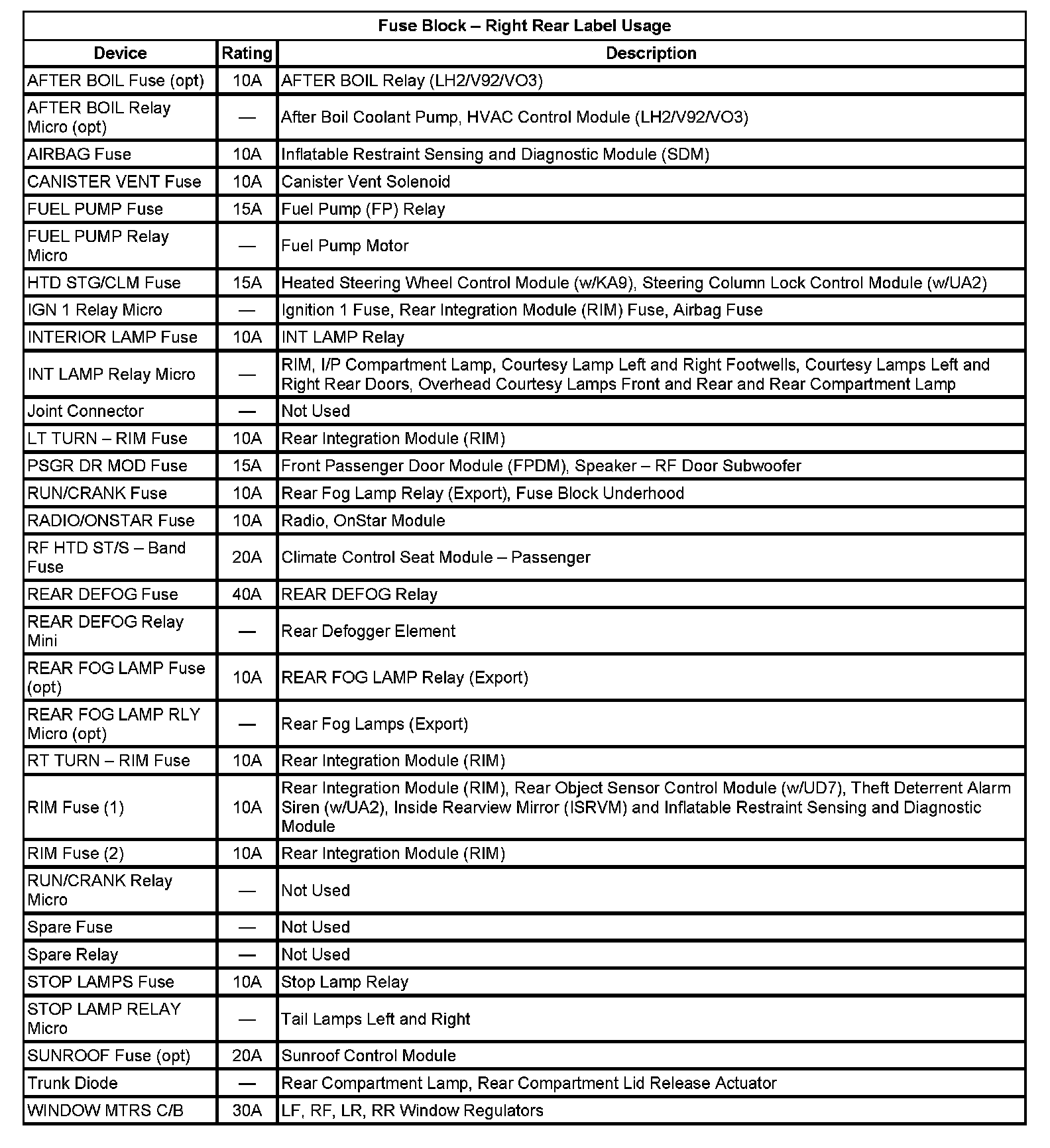

Application Table:
Location View:
Location View:
