Coolant Line/Hose: Locations

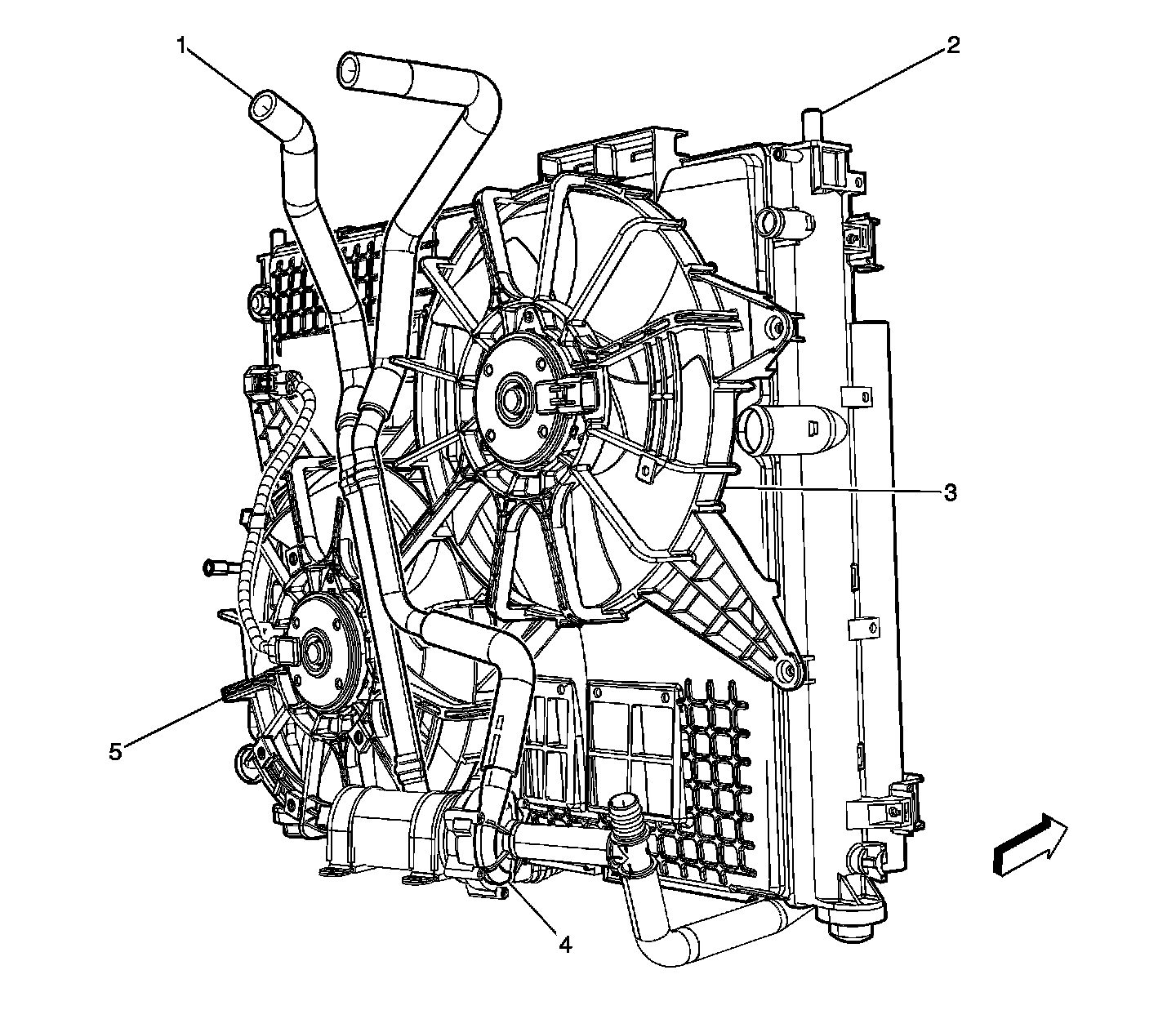

Cooling System Component Views
After Boil Heater Pump:
1 - Heater Hose
2 - Radiator
3 - Cooling Fan - Right
4 - After Boil Heater Pump (LH2/V92 Only)
5 - Cooling Fan - Left
Cooling System Component Views
1 - Heater Hose
2 - Radiator
3 - Cooling Fan - Right
4 - After Boil Heater Pump (LH2/V92 Only)
5 - Cooling Fan - Left
