Combination Switch: Diagrams

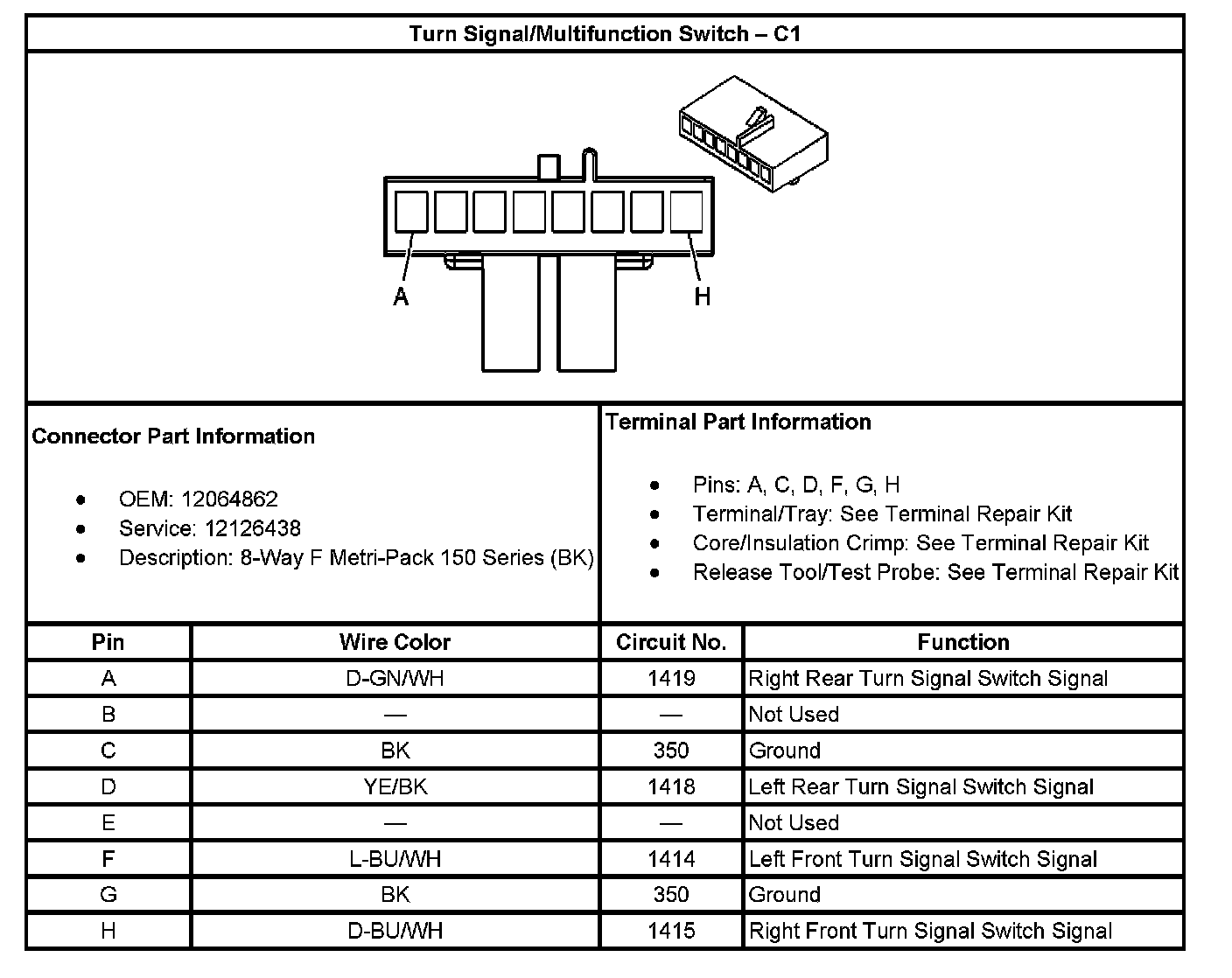

Turn Signal/Multifunction Switch - C1:

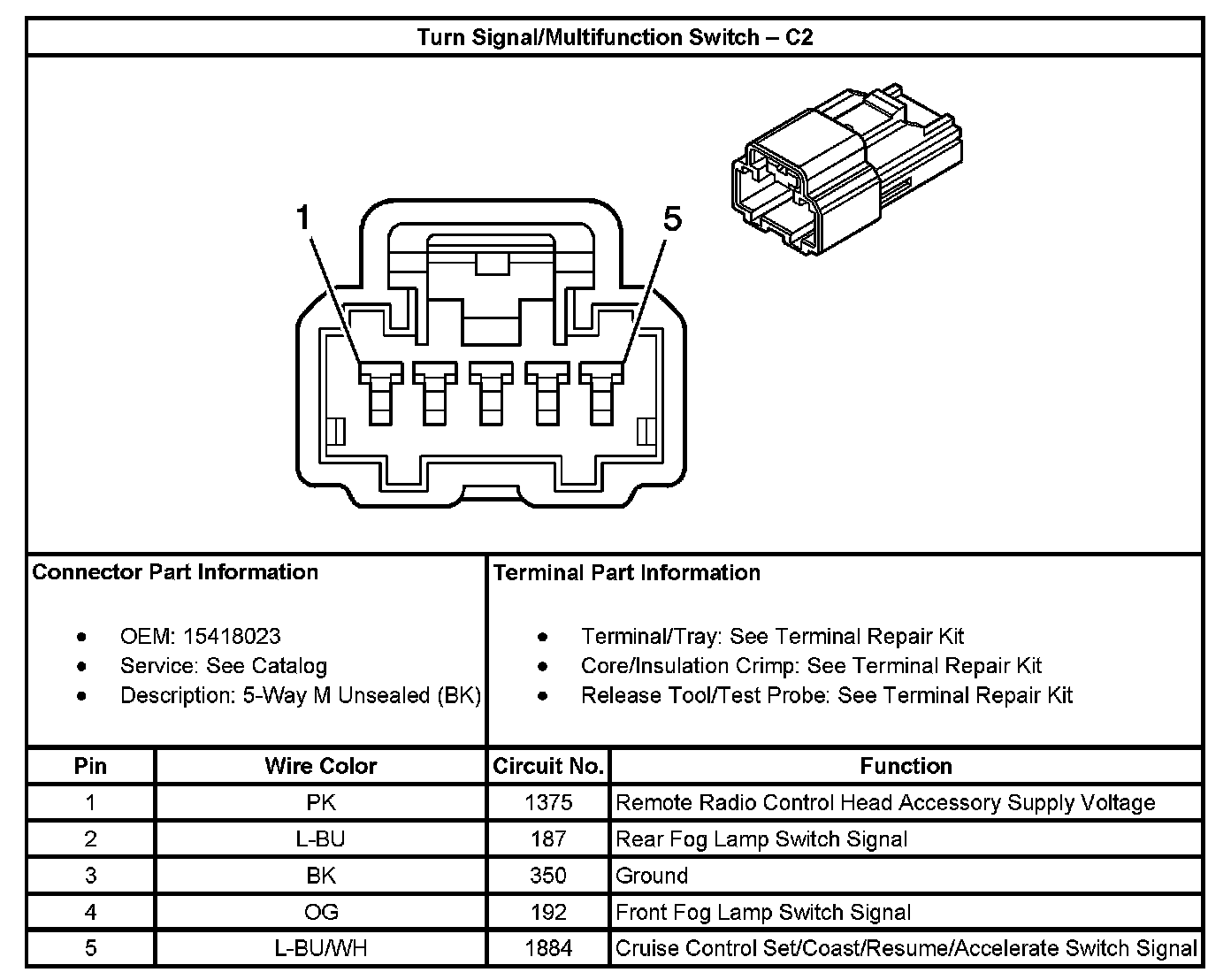

Turn Signal/Multifunction Switch - C2:
Turn Signal/Multifunction Switch - C3:
Turn Signal/Multifunction Switch - C4:
