Headlamp Alignment Actuator: Diagrams

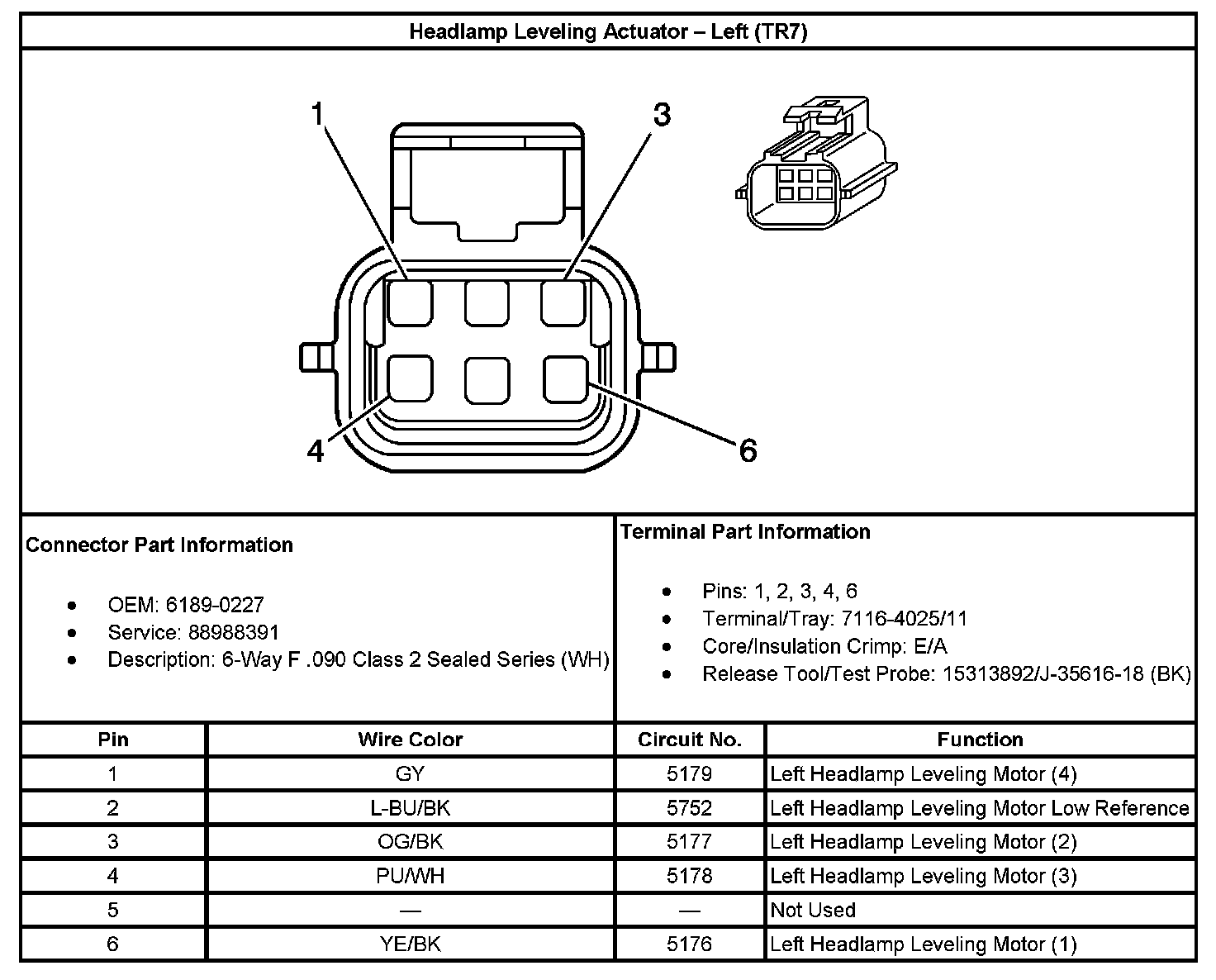

Headlamp Leveling Actuator - Left (With RPO Code TR7):

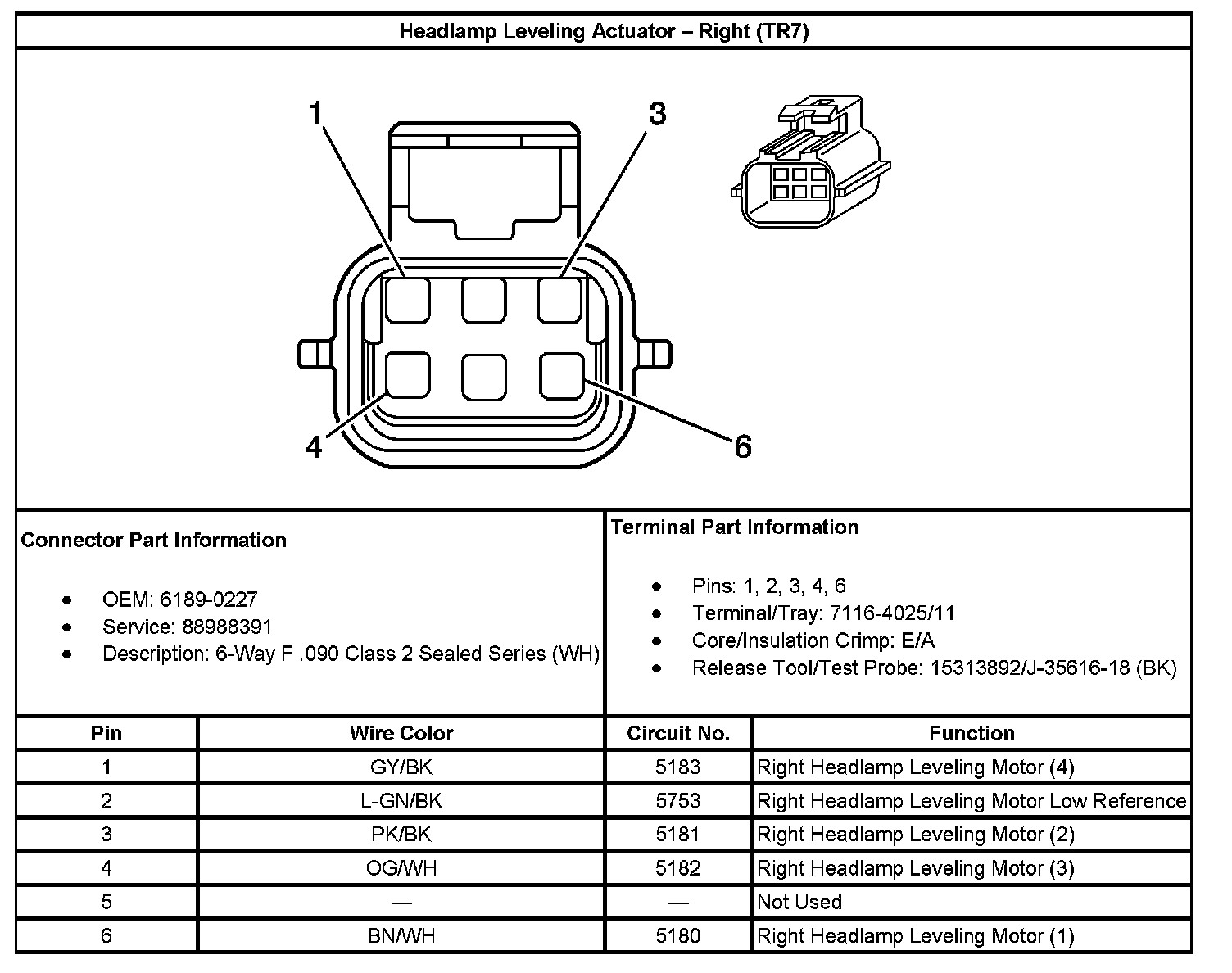

Headlamp Leveling Actuator - Right (With RPO Code TR7):
