Cadillac
>>
2006
>>
STS RWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Connector Views
Connector Views

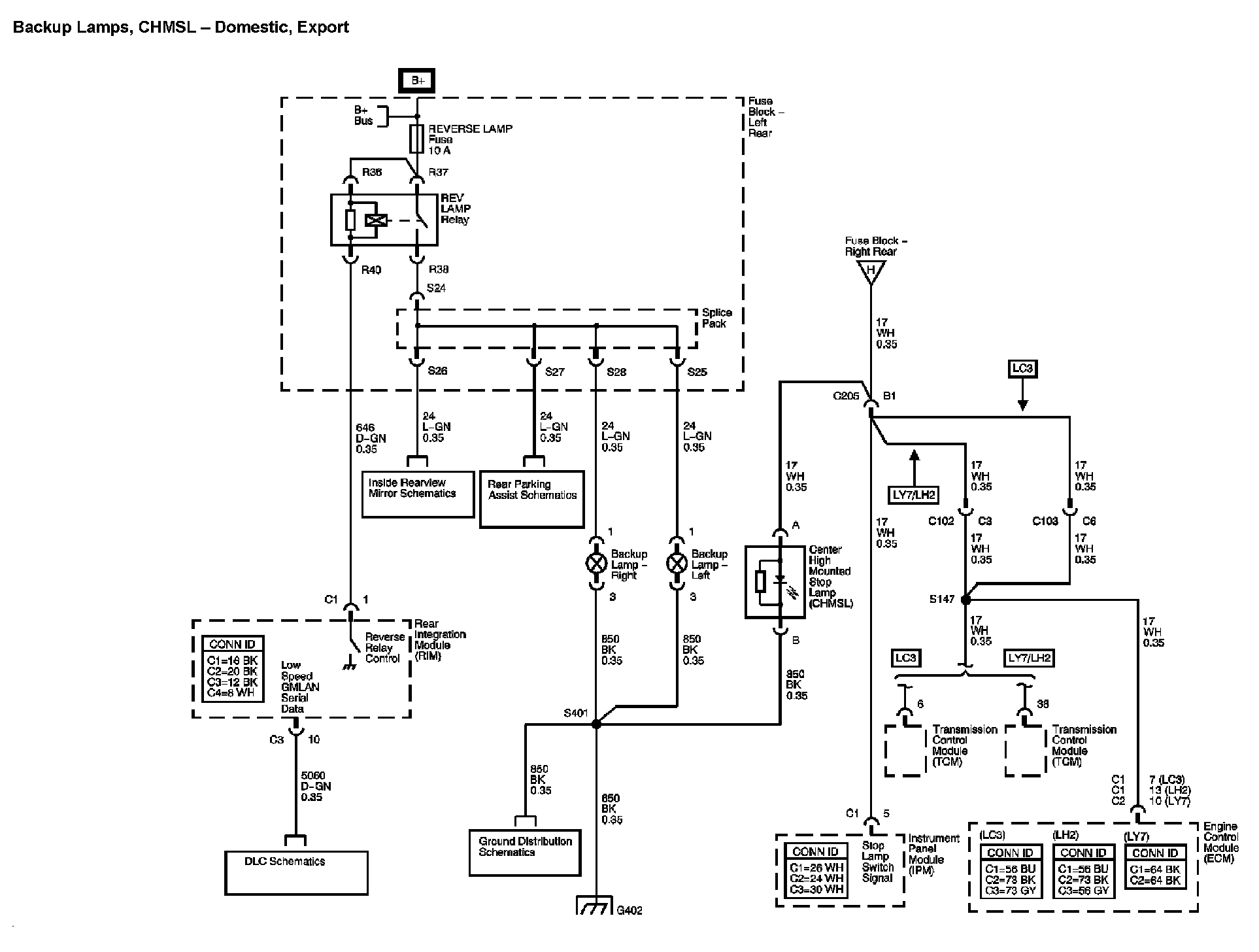

Exterior Lights Diagram 3:

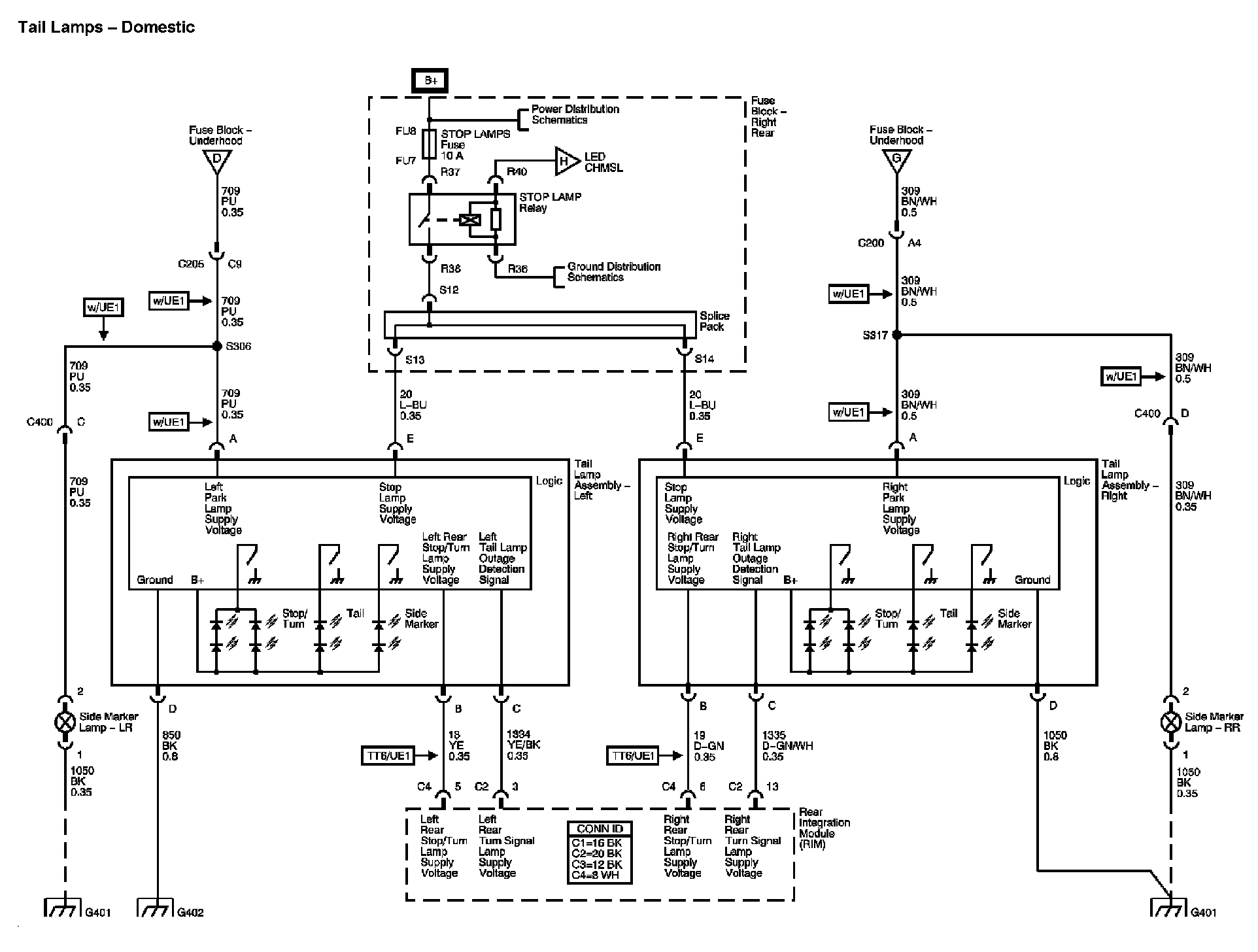

Exterior Lights Diagram 4:

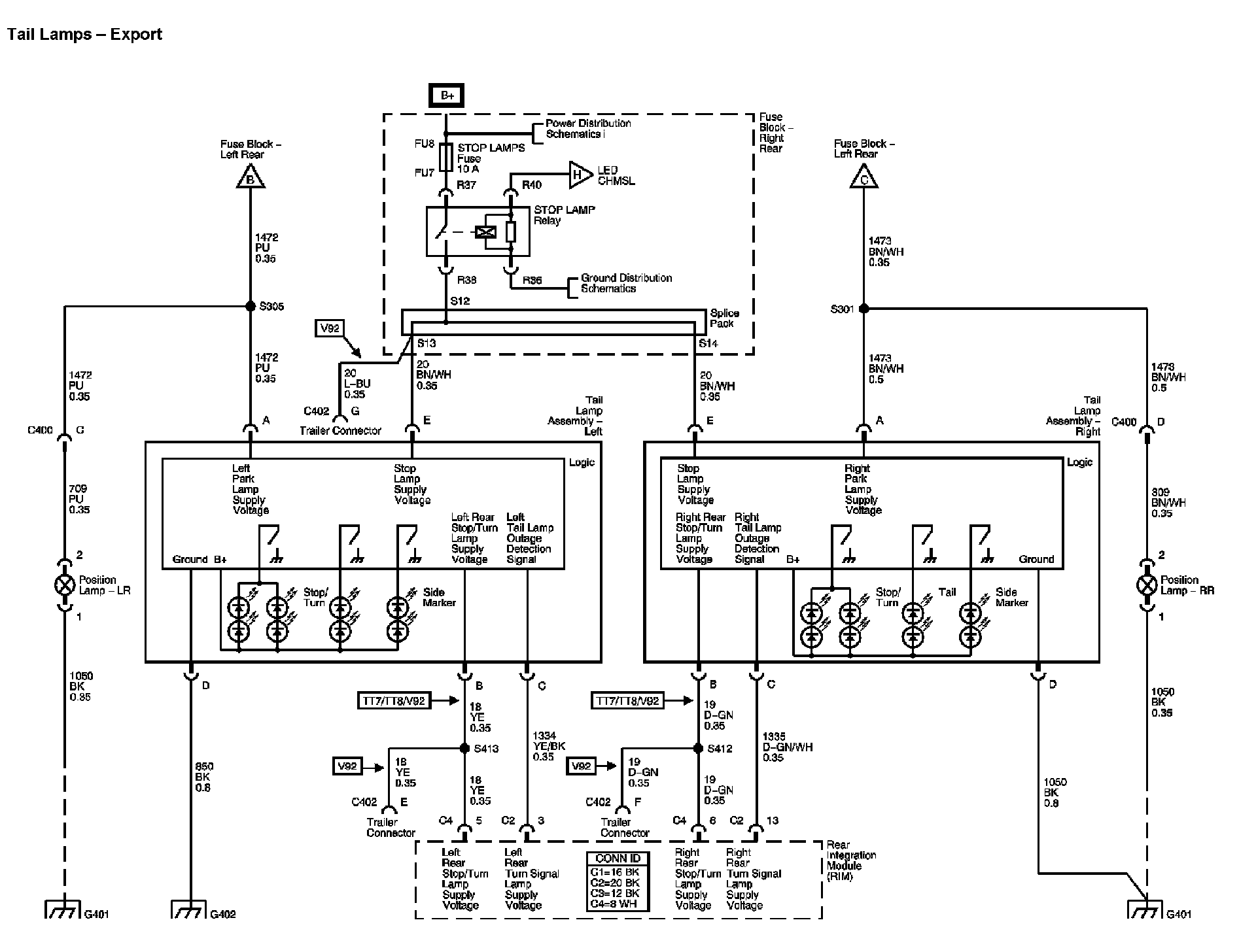

Exterior Lights Diagram 7:
