Courtesy Lamp Replacement - Overhead Console (Rear)

COURTESY LAMP REPLACEMENT - OVERHEAD CONSOLE (REAR)

REMOVAL PROCEDURE
1. Remove the overhead console.

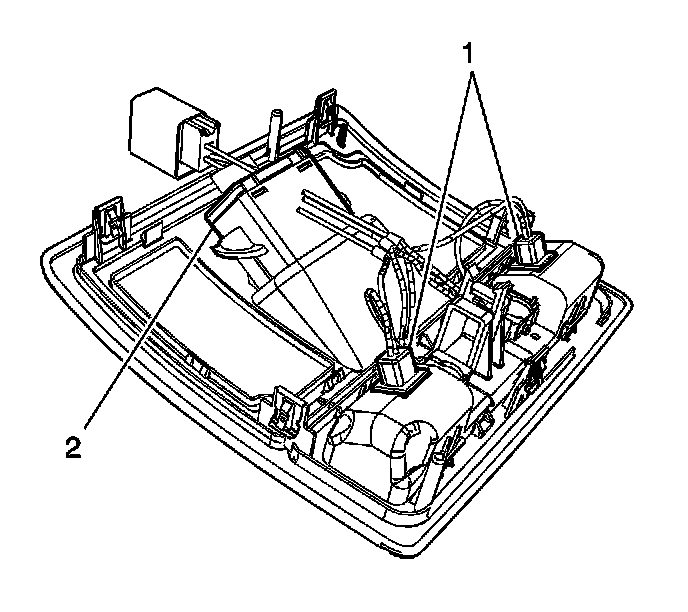

2. Remove the bulb (1) out of the overhead console.

INSTALLATION PROCEDURE




1. Install the bulb (1) to the overhead console.
2. Install the overhead console.
