Instrument Cluster Replacement

INSTRUMENT CLUSTER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the instrument panel cluster trim.

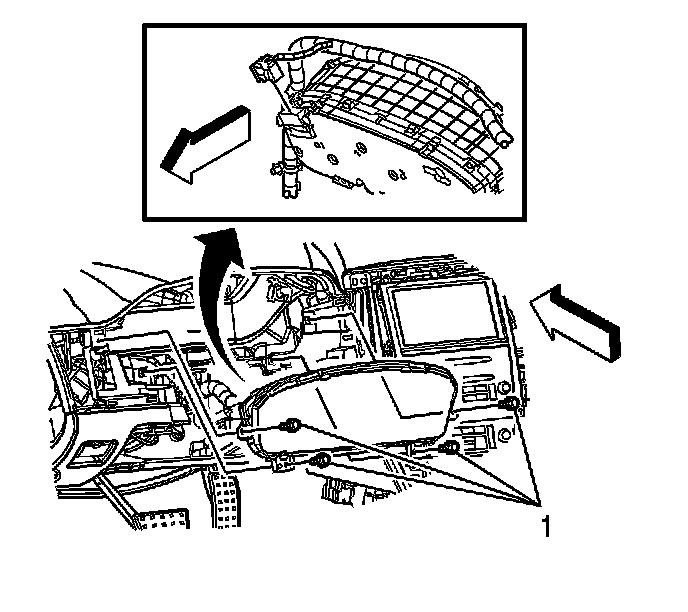

2. Remove the 4 screws (1) securing the instrument panel cluster.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Connect the electrical connector.
2. Install the 4 screws (1) securing the instrument panel cluster.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws (1) to 2 N.m (9 lb in).

3. Install the instrument panel cluster trim.
4. Refer to Control Module References for programming and setup information. Programming and Relearning
