Electrical Diagrams

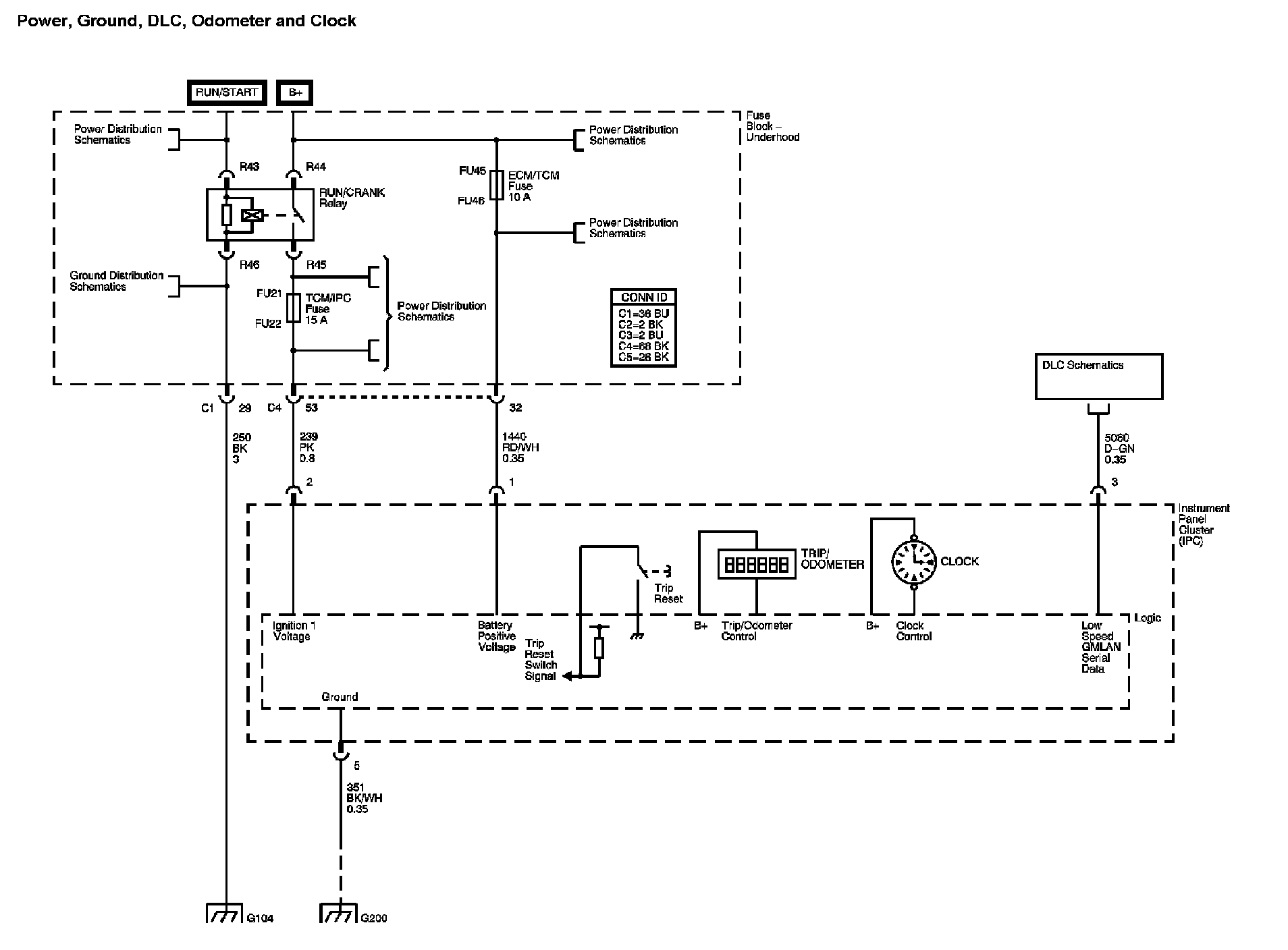

Instrument Cluster Diagram 1:

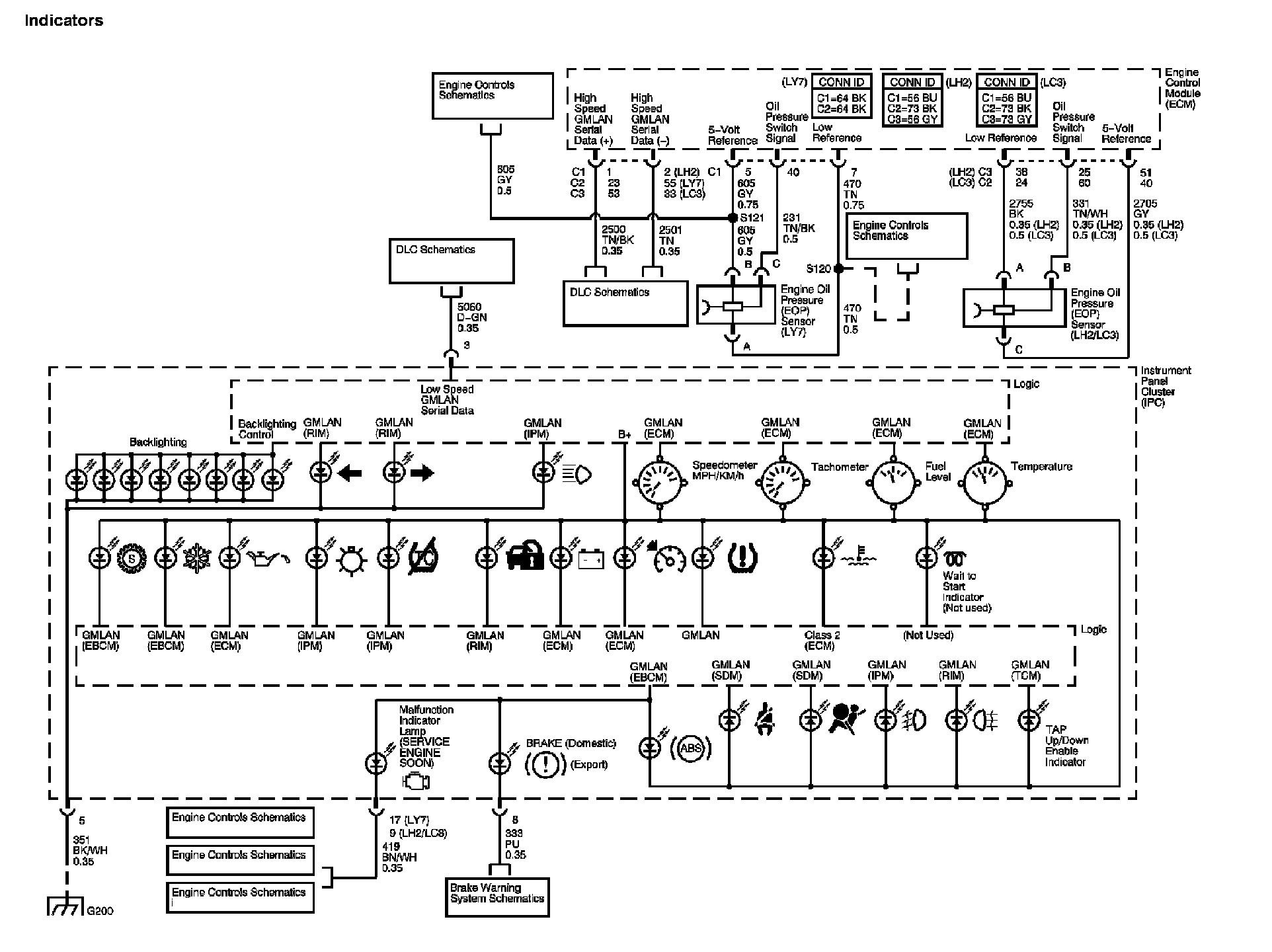

Instrument Cluster Diagram 2:

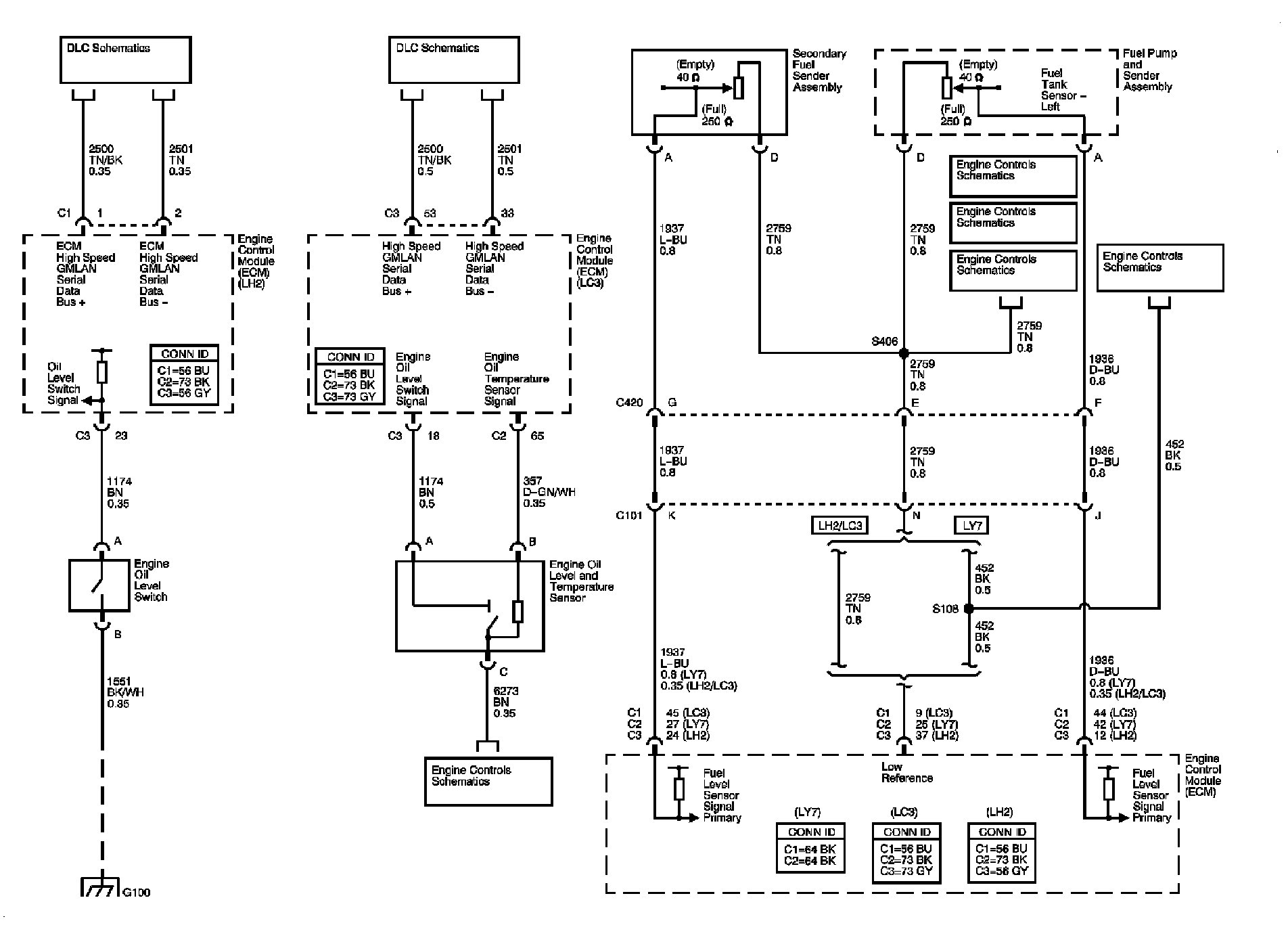

Instrument Cluster Diagram 3:

Instrument Cluster Diagram 4:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
