Too Hot in Vehicle

TOO HOT IN VEHICLE

TEST DESCRIPTION

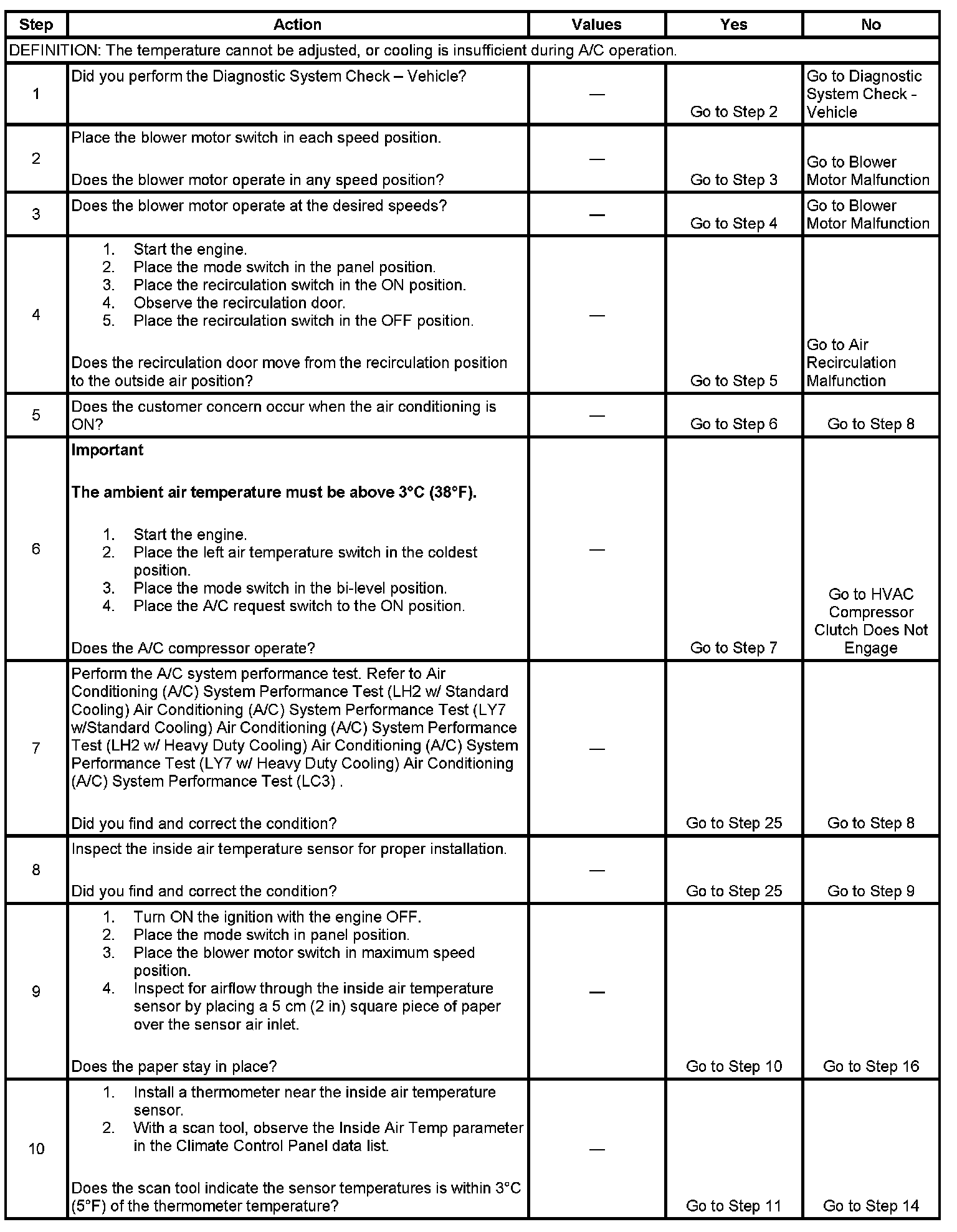

Step 1 - Step 10:

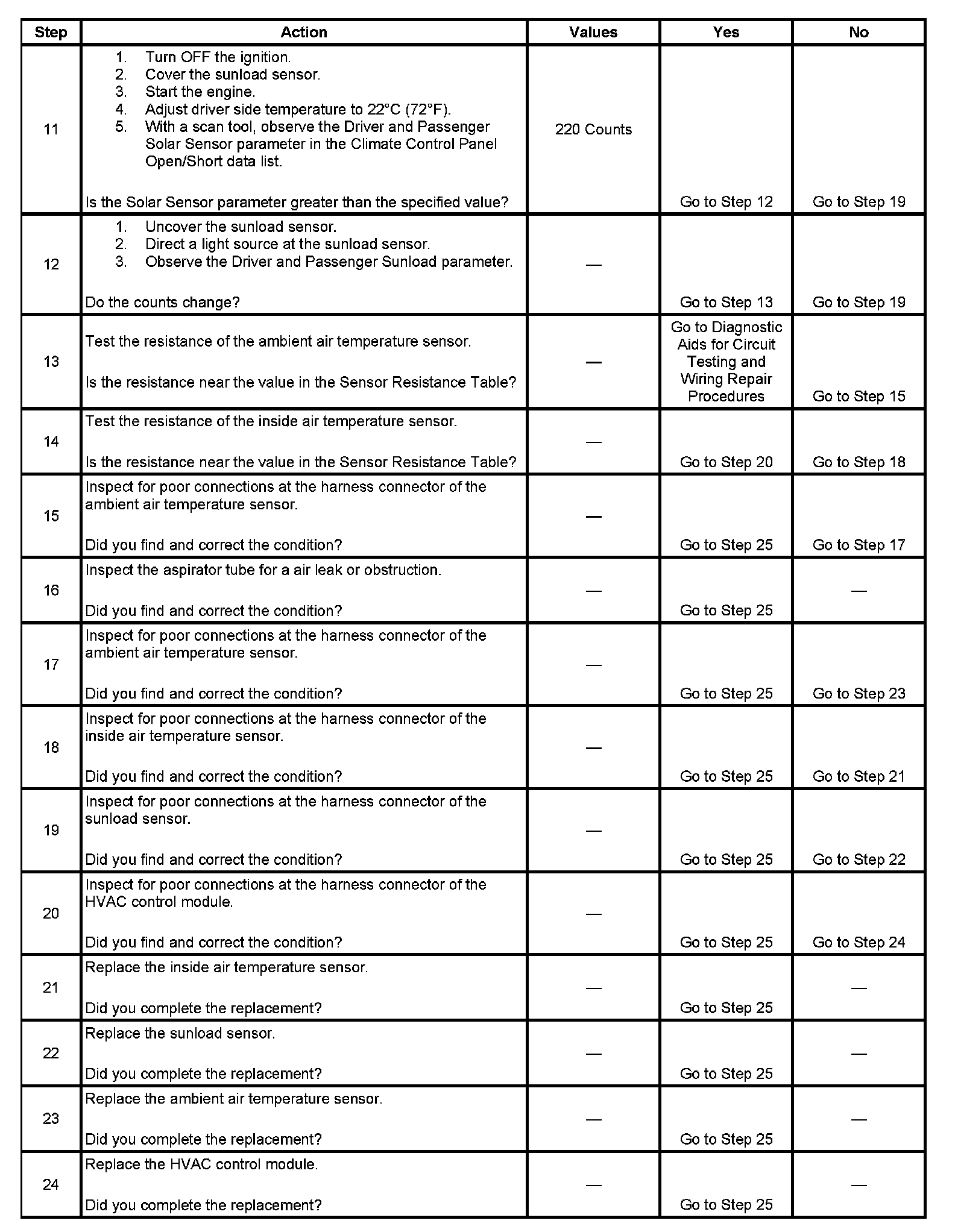

Step 11 - Step 24:

Step 25:

The numbers below refer to the step numbers on the diagnostic table.
6. The ambient air temperature must be above 3°C (38°F) for this A/C compressor test.
7. The specified values are from the A/C System Performance Test.
