Air Delivery Improper
AIR DELIVERY IMPROPER
DIAGNOSTIC AIDS
- The condition may be intermittent. Refer to Testing for Intermittent Conditions and Poor Connections.
- Inspect the air delivery system for the following conditions:
- A dirty HVAC air filter
- An obstruction to the airflow
- Air leaks
- Misaligned air ducts
- Broken or binding linkages or doors

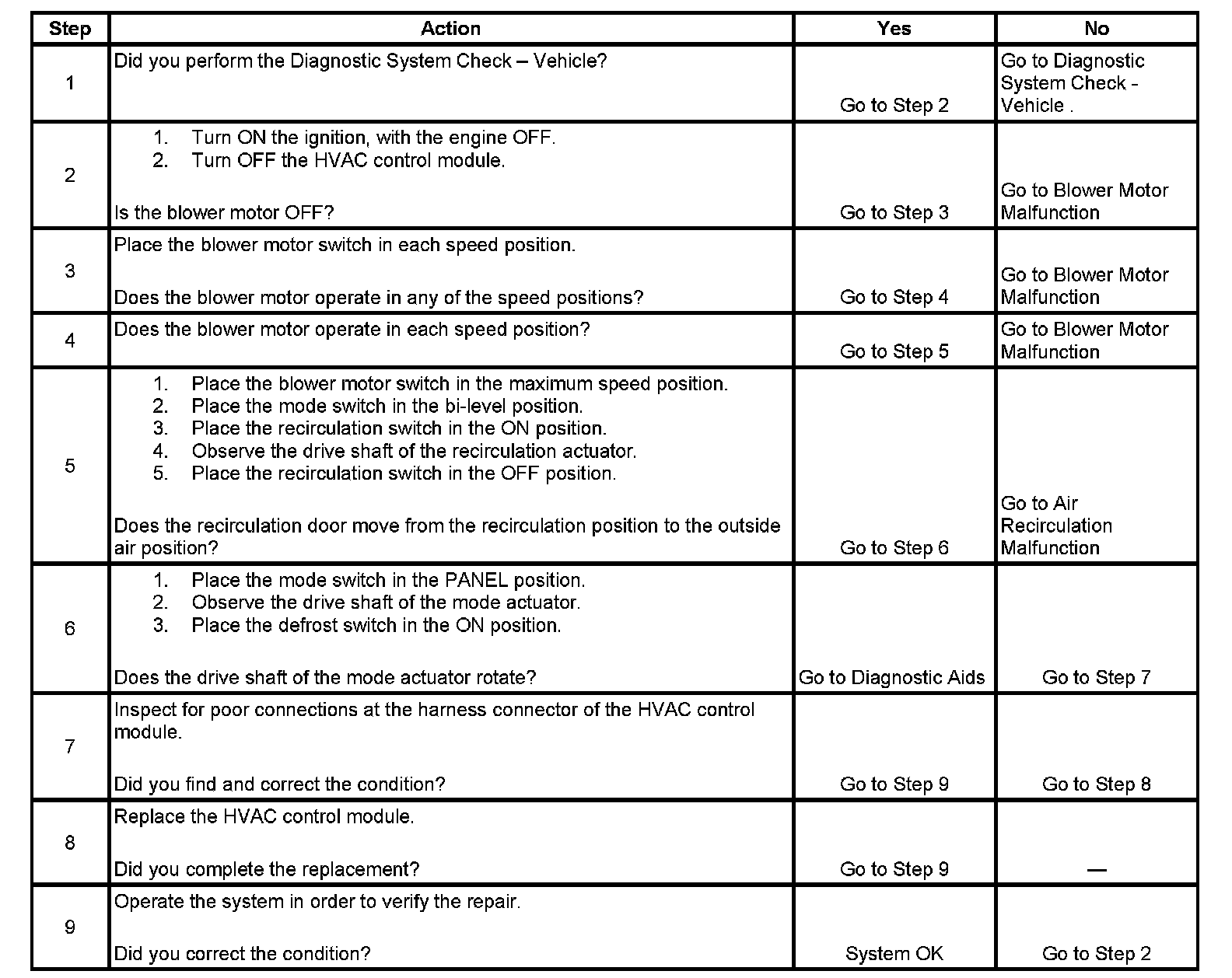

TEST
