80. Engine Front Cover Disassemble

Engine Front Cover Disassemble

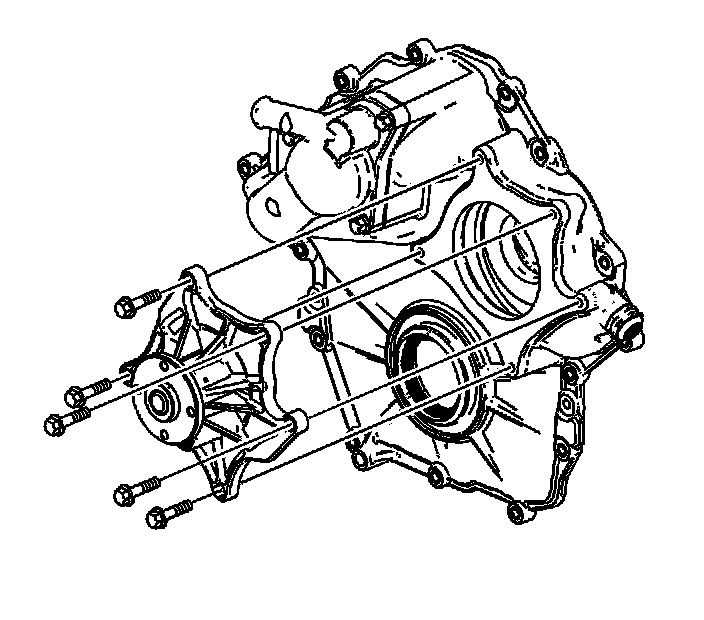

1. Remove the water pump bolts.
2. Remove the water pump.





3. Remove and discard the water pump O-ring.





4. Remove the thermostat housing bolts.
5. Remove the thermostat housing.





6. Remove the thermostat and gasket from the thermostat housing.





7. Remove the thermostat gasket from the thermostat and discard the thermostat gasket.





8. Remove the engine front cover fitting.
