46. Engine Block Disassemble

Engine Block Disassemble - Upper

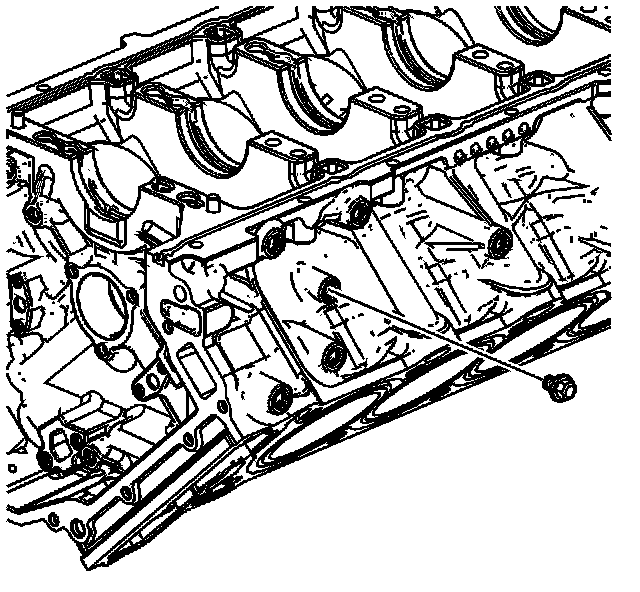

1. Remove the engine coolant drain plug.

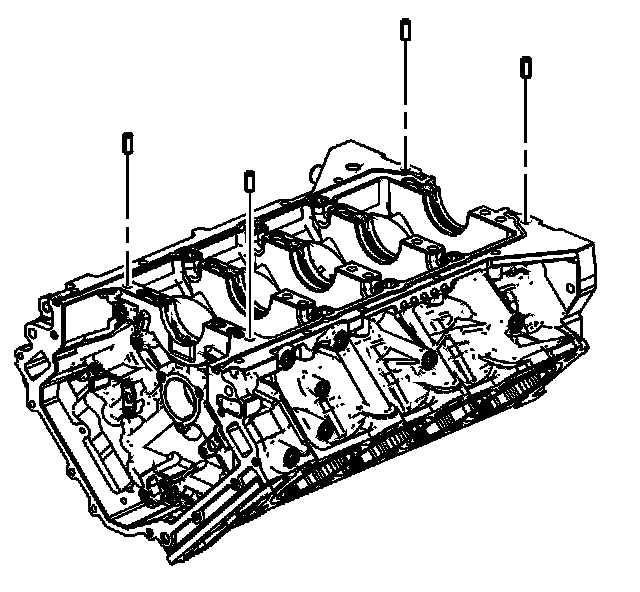

2. Remove the engine block to crankcase pins.

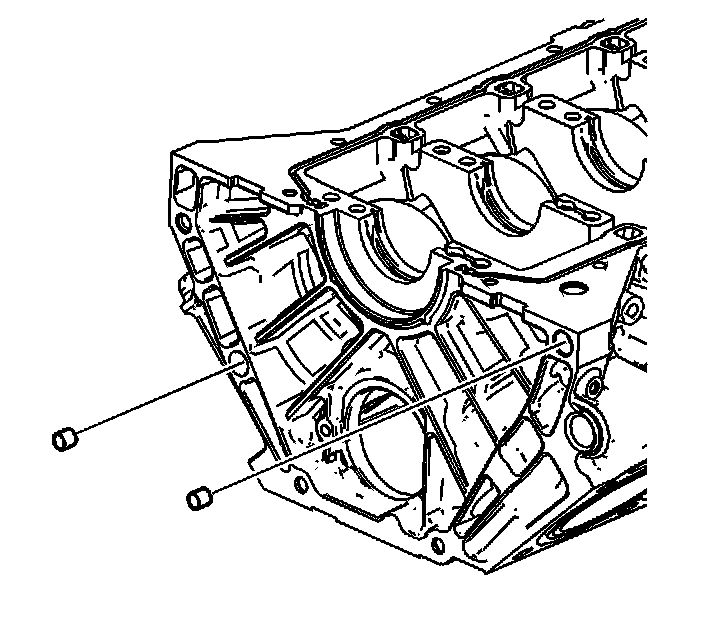

3. Remove the engine block to engine front cover pins.

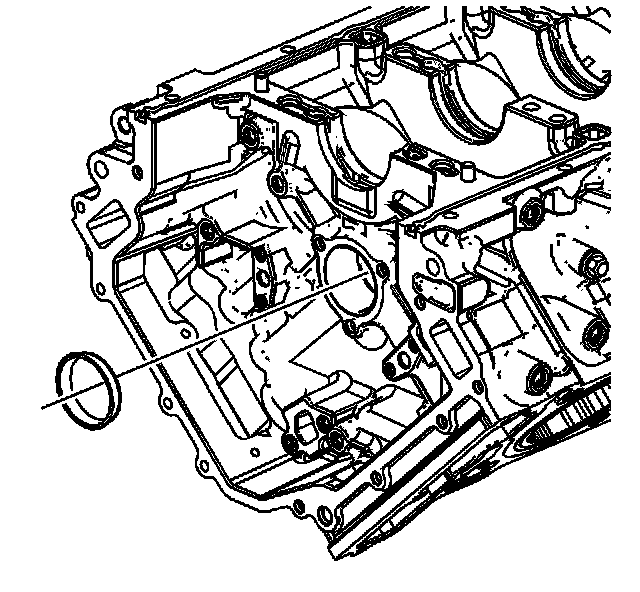

4. Remove the camshaft intermediate drive shaft block plug and discard.

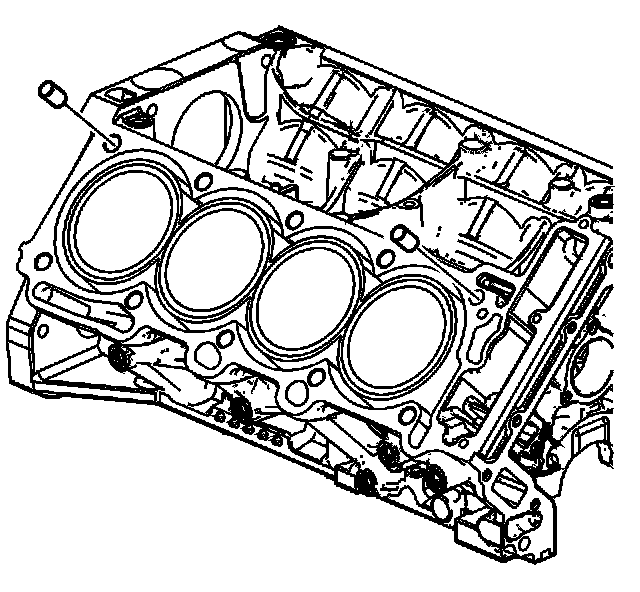

5. Remove the left side block deck face to left cylinder head dowels.

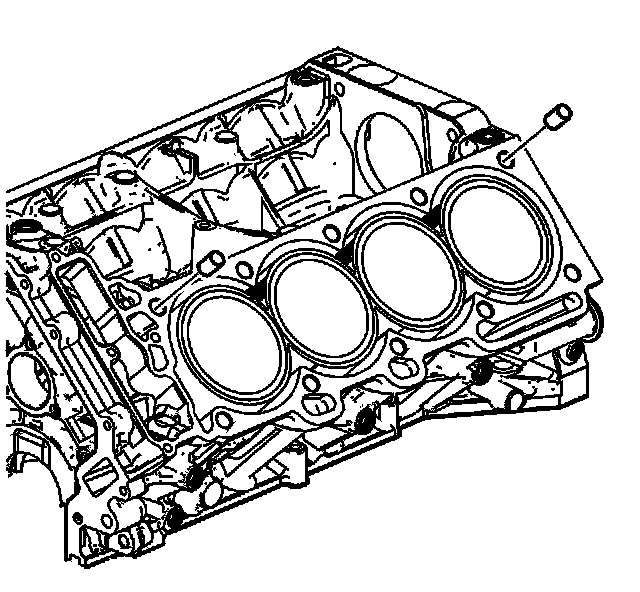

6. Remove the right side block deck face to right cylinder head dowels.

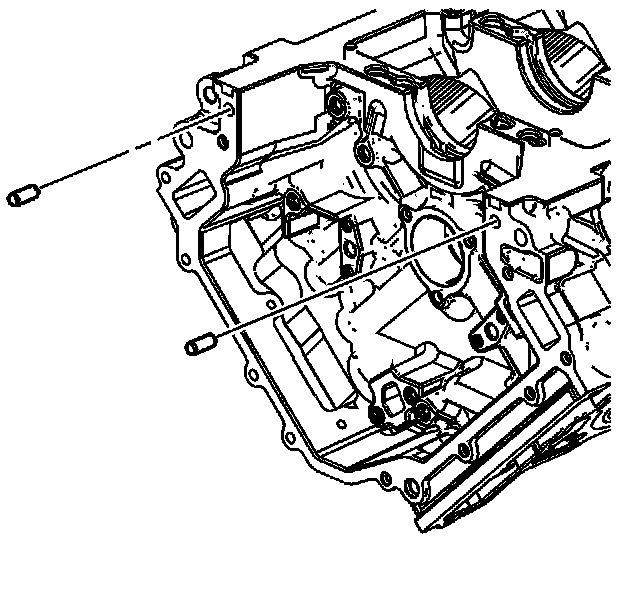

7. Remove the engine block to transmission dowels.
