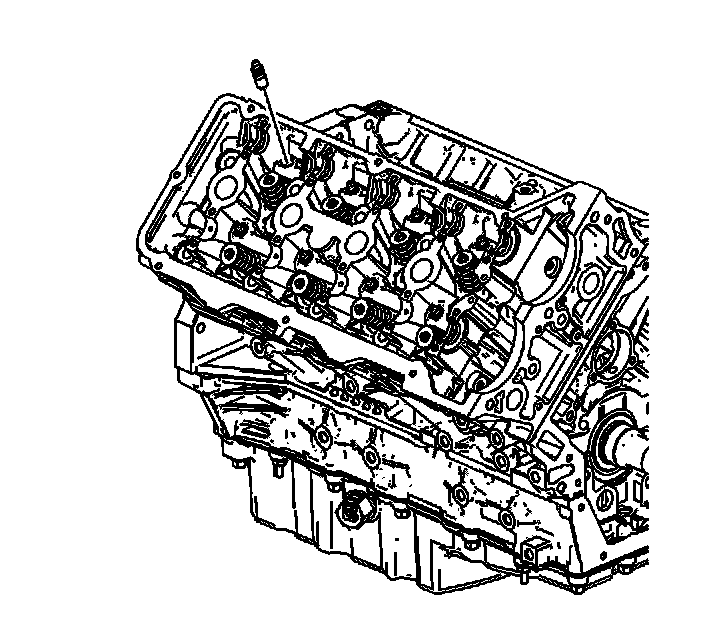

39. Valve Lifter Removal - Right Side

Valve Lifter Removal - Right





1. Notice: Refer to Valve Lifter Priming Notice in Service Precautions.

Important: Ensure each camshaft follower remains matched to the original stationary hydraulic lash adjuster (SHLAs) and original location the components were assembled in.

Remove the stationary hydraulic lash adjuster (SHLAs) from the right cylinder head lifter bores.
2. Store the camshafts, followers and SHLAs in a clean, secure location.
