28. Oil Outlet Tube Removal



Oil Outlet Tube Removal

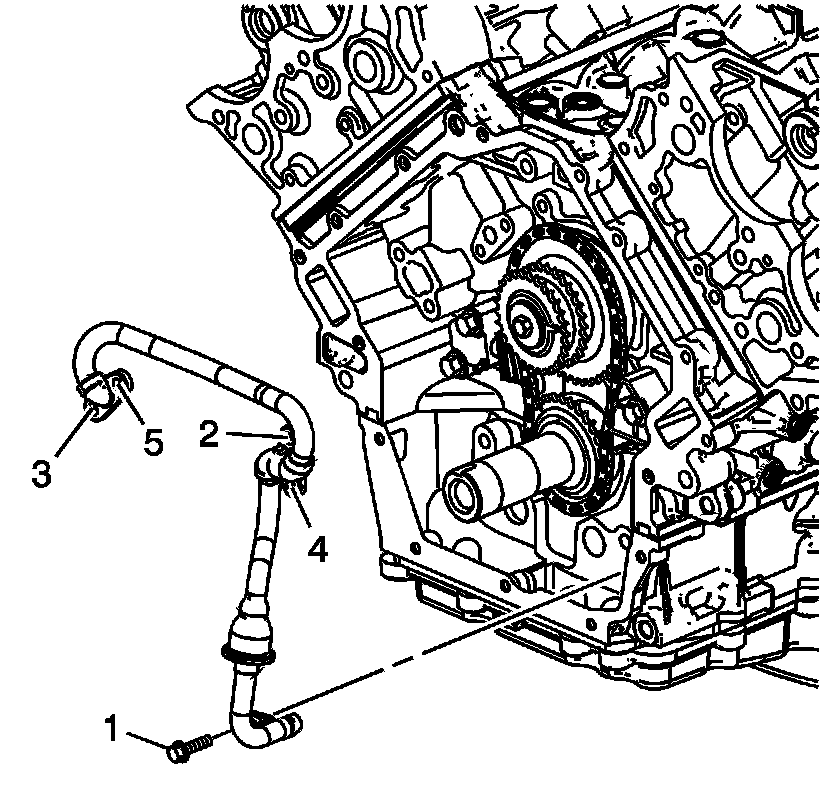

1. Remove the oil outlet tube bolts (1-5).
2. Remove the oil outlet tube.





3. Remove and discard the oil outlet tube O-ring.
