16. Oil Level Indicator and Tube Removal

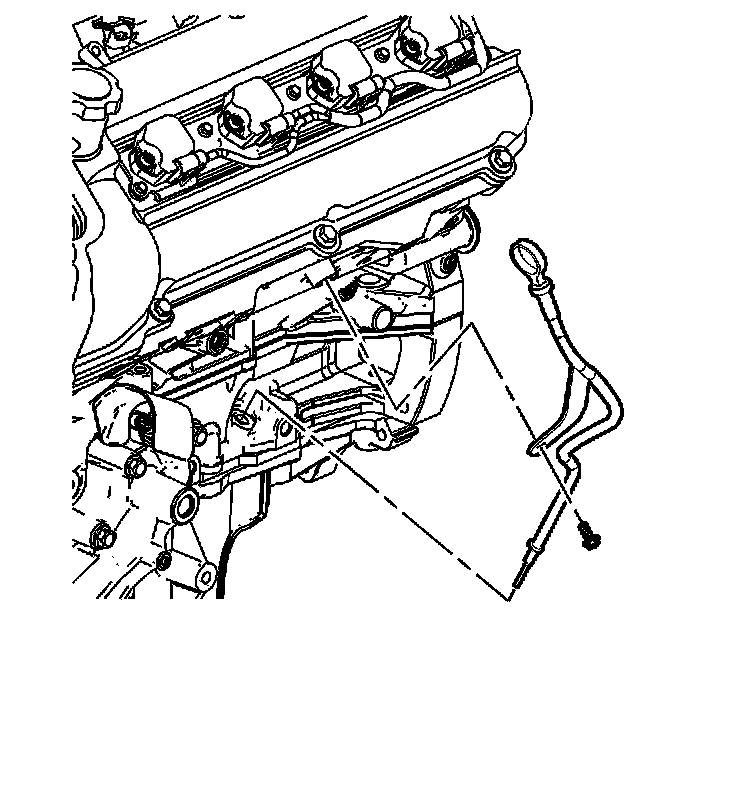

Oil Level Indicator and Tube Removal

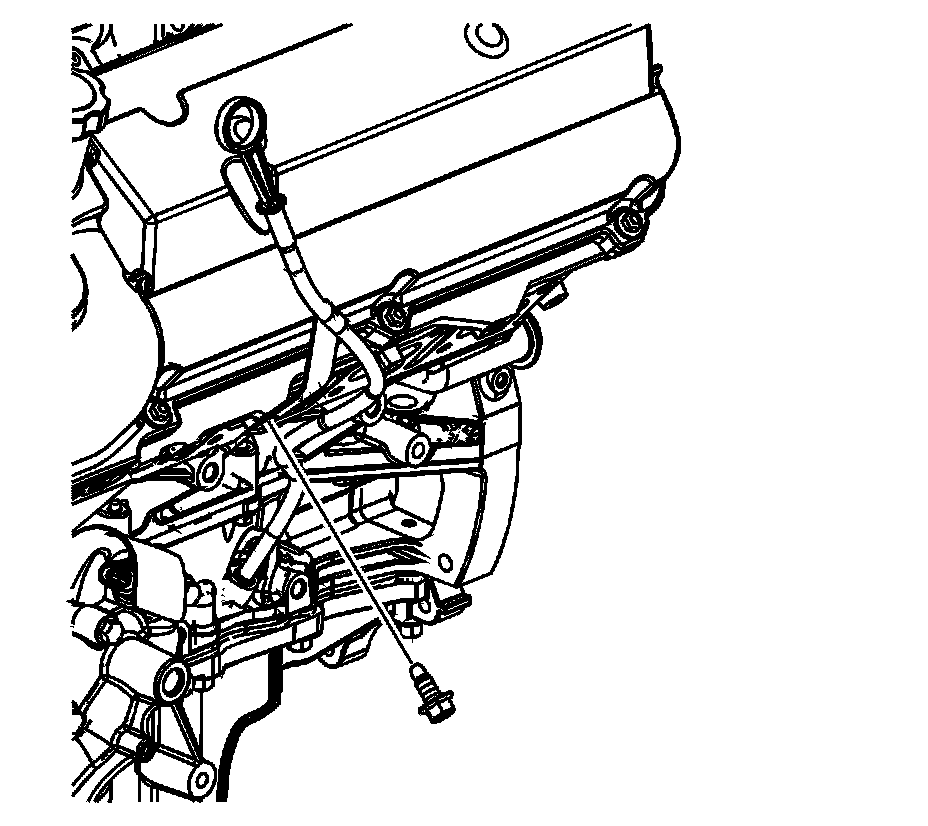

1. Remove the oil level indicator bolt.





2. Remove the oil level indicator tube.





3. Remove and discard the oil level indicator tube O-ring.
