13. Crankshaft Balancer Removal

Crankshaft Balancer Removal

^ Tools Required
- EN 46326 Flywheel Holding Tool
- J 24420-C Harmonic Balancer Puller
- J 38416-2 Crankshaft Button





1. Install the EN 46326 .

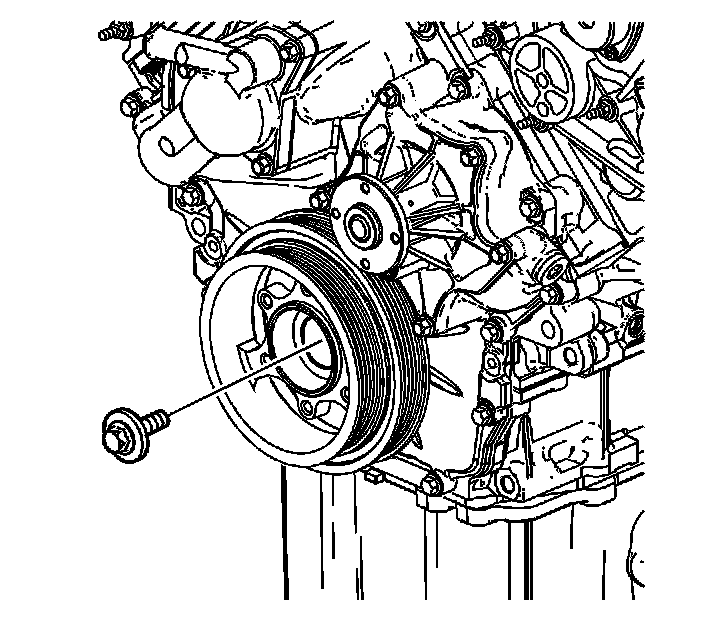

2. Remove the crankshaft balancer bolt.

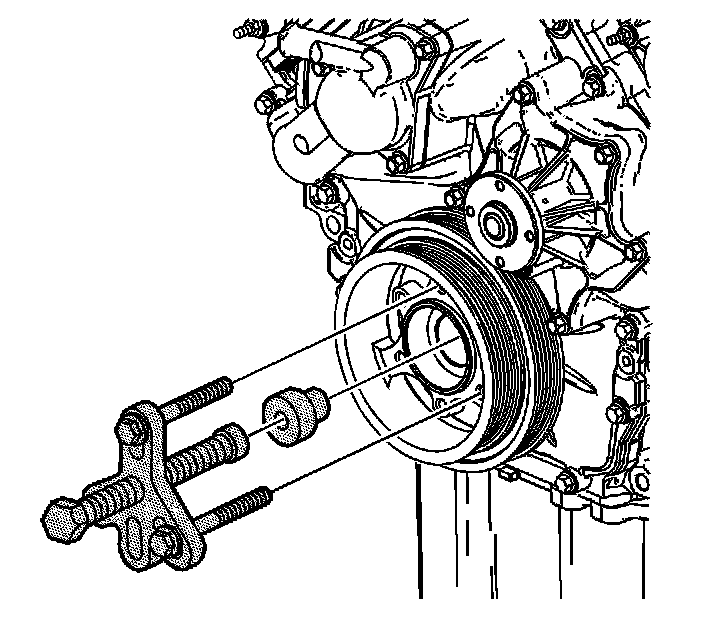

3. Place the J 38416-2 into the end of the crankshaft.
4. Install the J 24420-C on the crankshaft balancer.

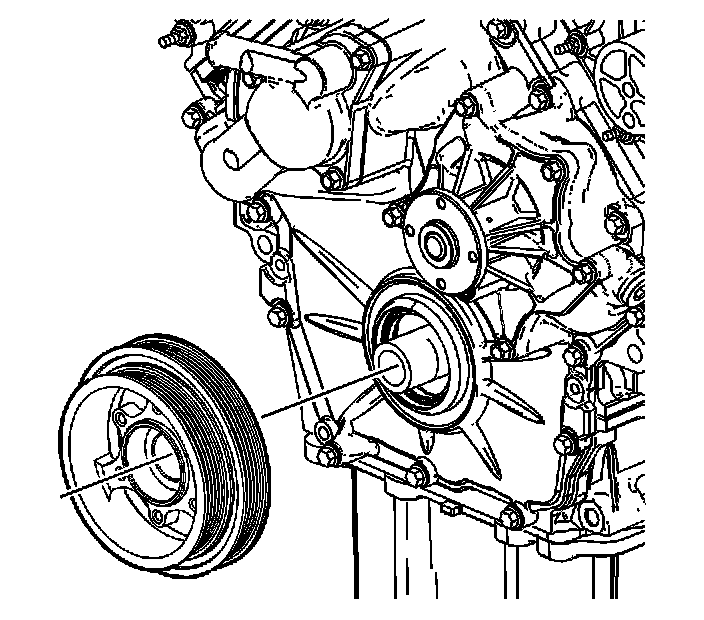

5. Remove the crankshaft balancer using the J 24420-C .
