112. Camshaft Intermediate Drive Shaft Installation



Camshaft Intermediate Drive Shaft Installation





Notice: Refer to Fastener Notice in Service Precautions.

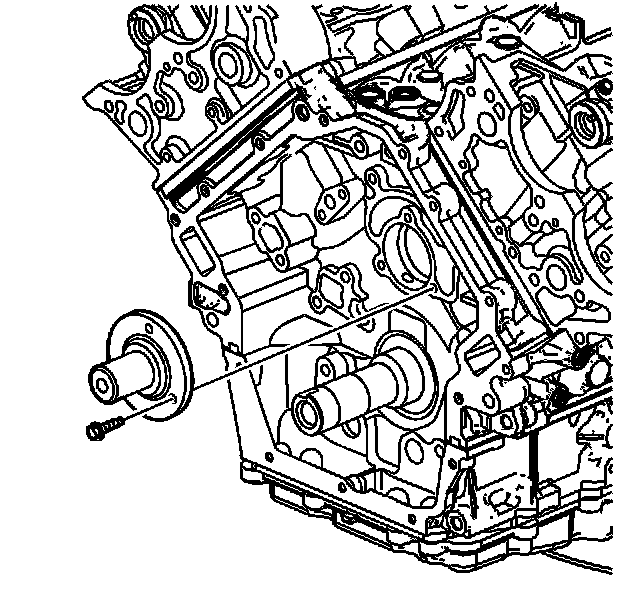

Install the intermediate sprocket shaft and the retaining bolts.
^ Tighten the intermediate sprocket shaft bolts to 10 Nm (89 inch lbs.).
