Engine Mount Bracket Replacement - Right

Engine Mount Bracket Replacement - Right (w/RWD)

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the right exhaust manifold.
3. Install a screw jack with a block of wood under the oil pan for support.

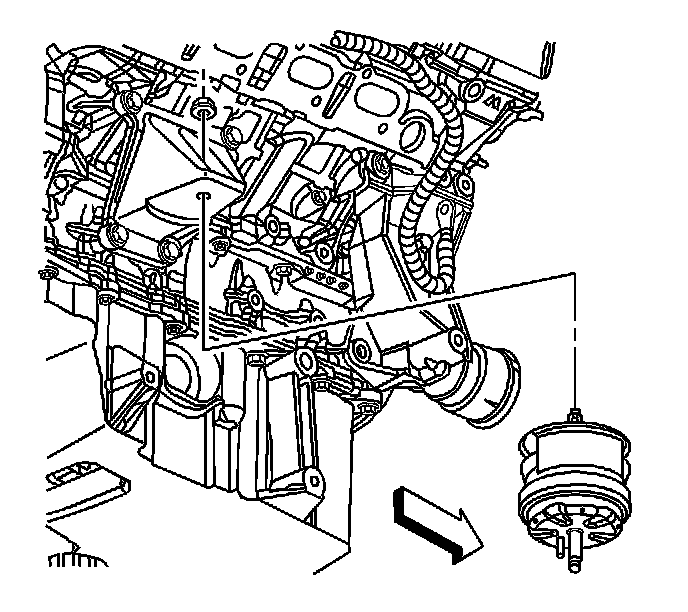

4. Remove the right engine mount upper retaining nut.





Important: Ensure not to distort or bend the engine mount heat shield.

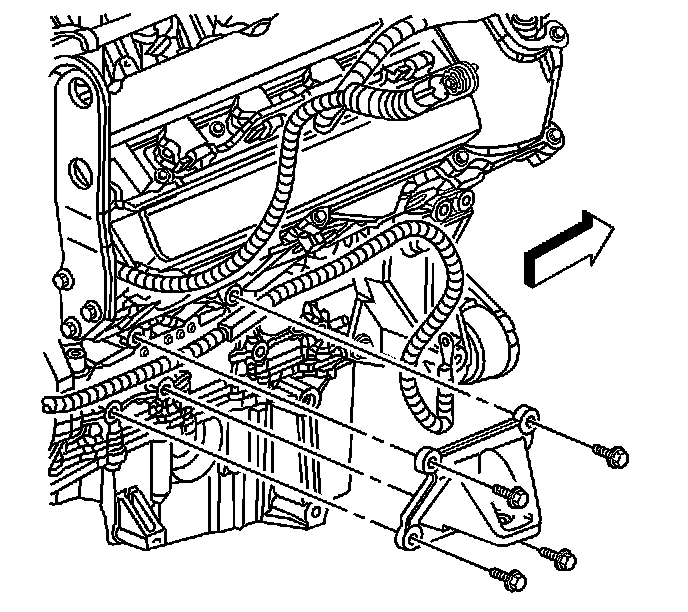

5. Remove the right engine mount bracket mounting bolts.
6. Remove the engine mount bracket from the vehicle.

Installation Procedure





1. Install the engine mount bracket to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount bracket mounting bolts.
^ Tighten the bolts to 60 Nm (44 ft. lbs.).
3. Remove the screw jack.





4. Install the upper engine mount retaining nut.
^ Tighten the nut to 80 Nm (59 ft. lbs.).
5. Install the right exhaust manifold.
6. Lower the vehicle.
