Drive Belt Tensioner Replacement - Generator

Drive Belt Tensioner Replacement - Generator
Removal Procedure
1. Remove the air conditioning, power steering, and water pump drive belt.
2. Remove the generator drive belt.





3. Loosen the generator drive belt tensioner bolt.
4. Remove the drive belt tensioner and bolt from the engine.

Installation Procedure

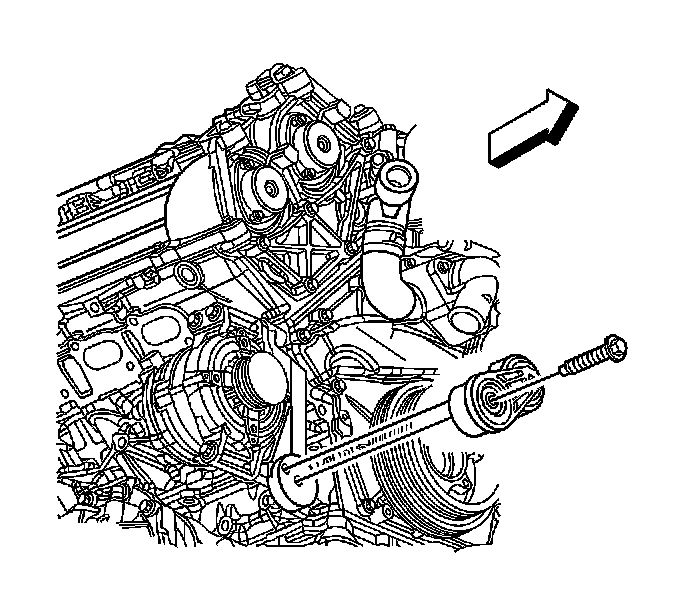

1. Position the generator drive belt tensioner and bolt to the engine as an assembly.
2. Ensure that the alignment pin on the rear of the tensioner assembly is aligned with the locating hole on the engine.

3. Notice: Refer to Fastener Notice in Service Precautions.

Install the drive belt tensioner bolt.
^ Tighten the drive belt tensioner bolt to 50 Nm (37 ft. lbs.).
4. Install the generator drive belt.
5. Install the air conditioning, power steering, and water pump drive belt.
