Electrical Diagrams

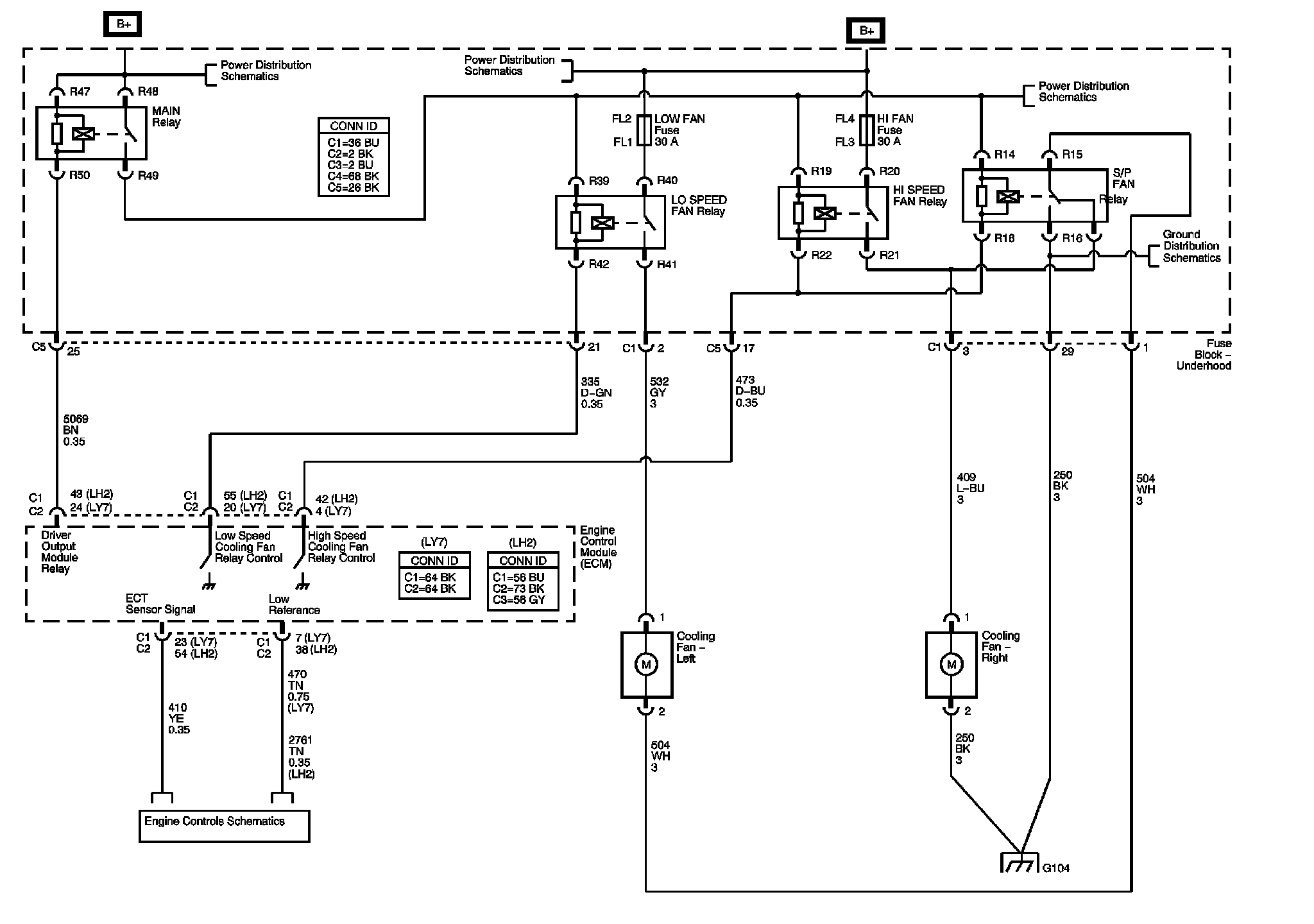

Engine Cooling Diagrams 1:




Engine Cooling Diagrams 2:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle/Anchors. Locations
