Radiator Surge Tank Inlet Hose/Pipe Replacement

Surge Tank Hose/Pipe Replacement - Inlet (LH2)

^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure
1. Partially drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) Draining and Filling Cooling System (GE 47719) .





2. Using J 38185, disengage the clamp at the surge tank and disconnect the surge tank inlet hose.
3. Using J 38185, disengage the clamp at the radiator and disconnect the surge tank inlet hose
4. Remove the surge tank inlet hose from the retaining features on the fan shroud and the air cleaner assembly.

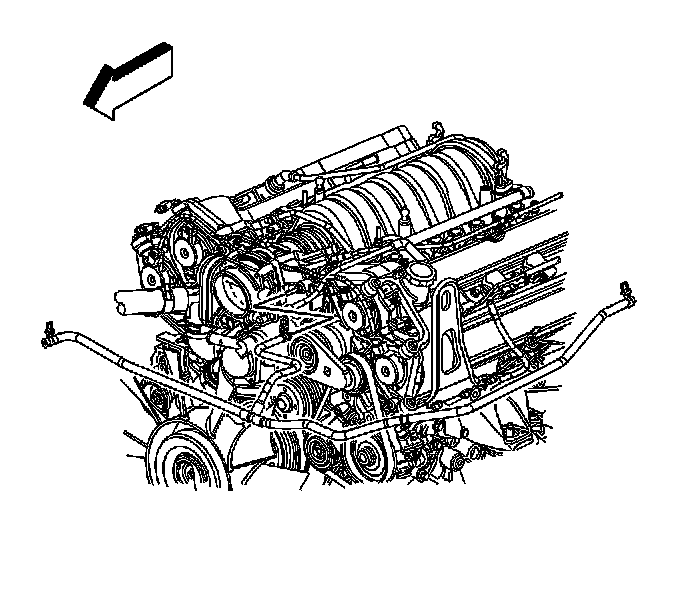

5. Using J 38185, disengage the clamp at the water housing assembly and disconnect the surge tank inlet hose
6. Remove the surge tank inlet hose from the vehicle.

Installation Procedure





1. Install the surge tank inlet hose.
2. Using J 38185, install the surge tank inlet hose to the water housing assembly.
3. Insert the surge tank inlet hose into the retaining features on the fan shroud and the air cleaner housing assembly.
4. Using J 38185, install the surge tank inlet hose to the radiator.
5. Using J 38185, install the surge tank inlet hose to the surge tank.
6. Fill the cooling system. Refer to Draining and Filling Cooling System (Static Fill) Draining and Filling Cooling System (GE 47719) .
