Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Harness >> Seat Views >> Driver Seat

Driver Seat

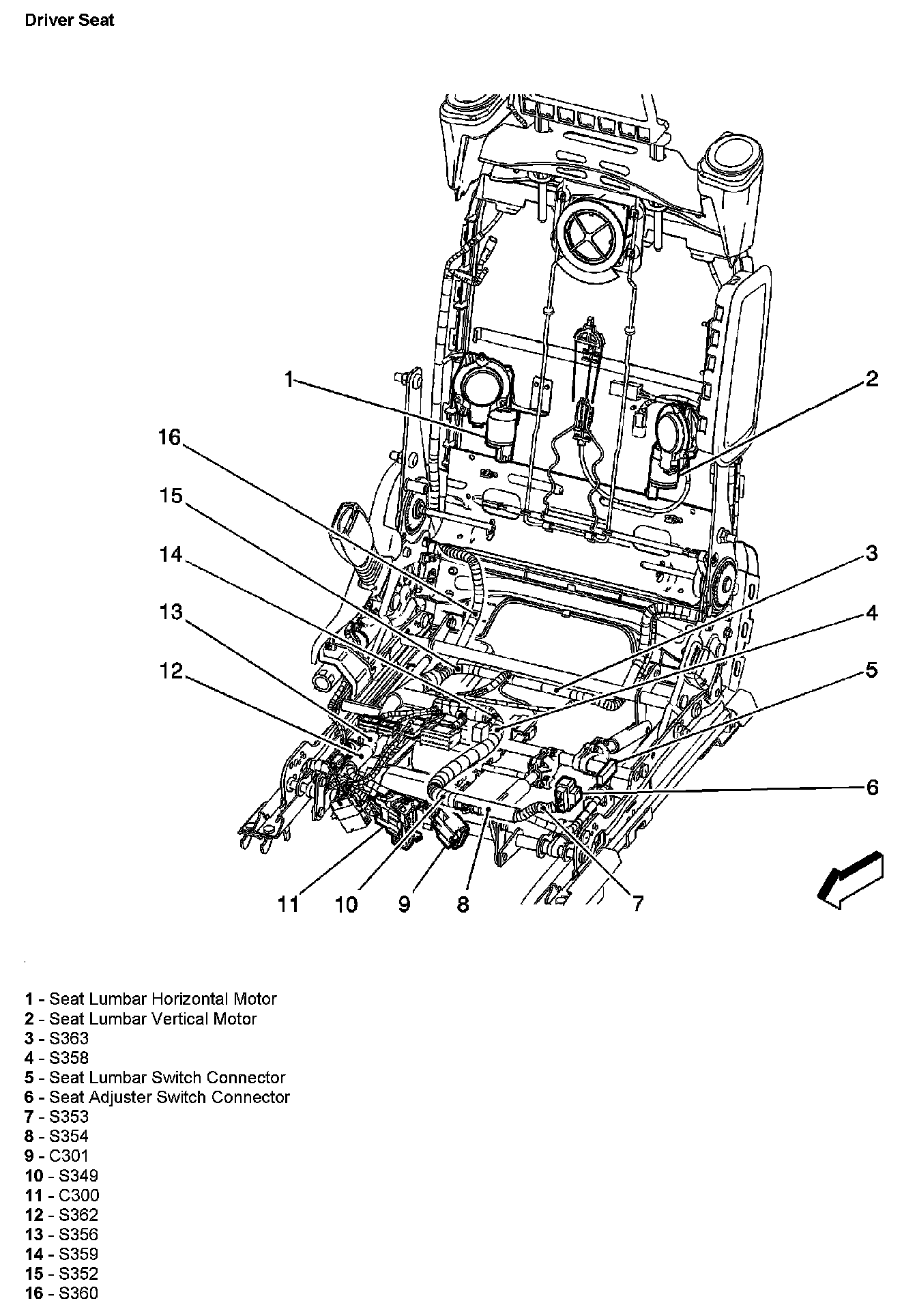

Driver Seat:

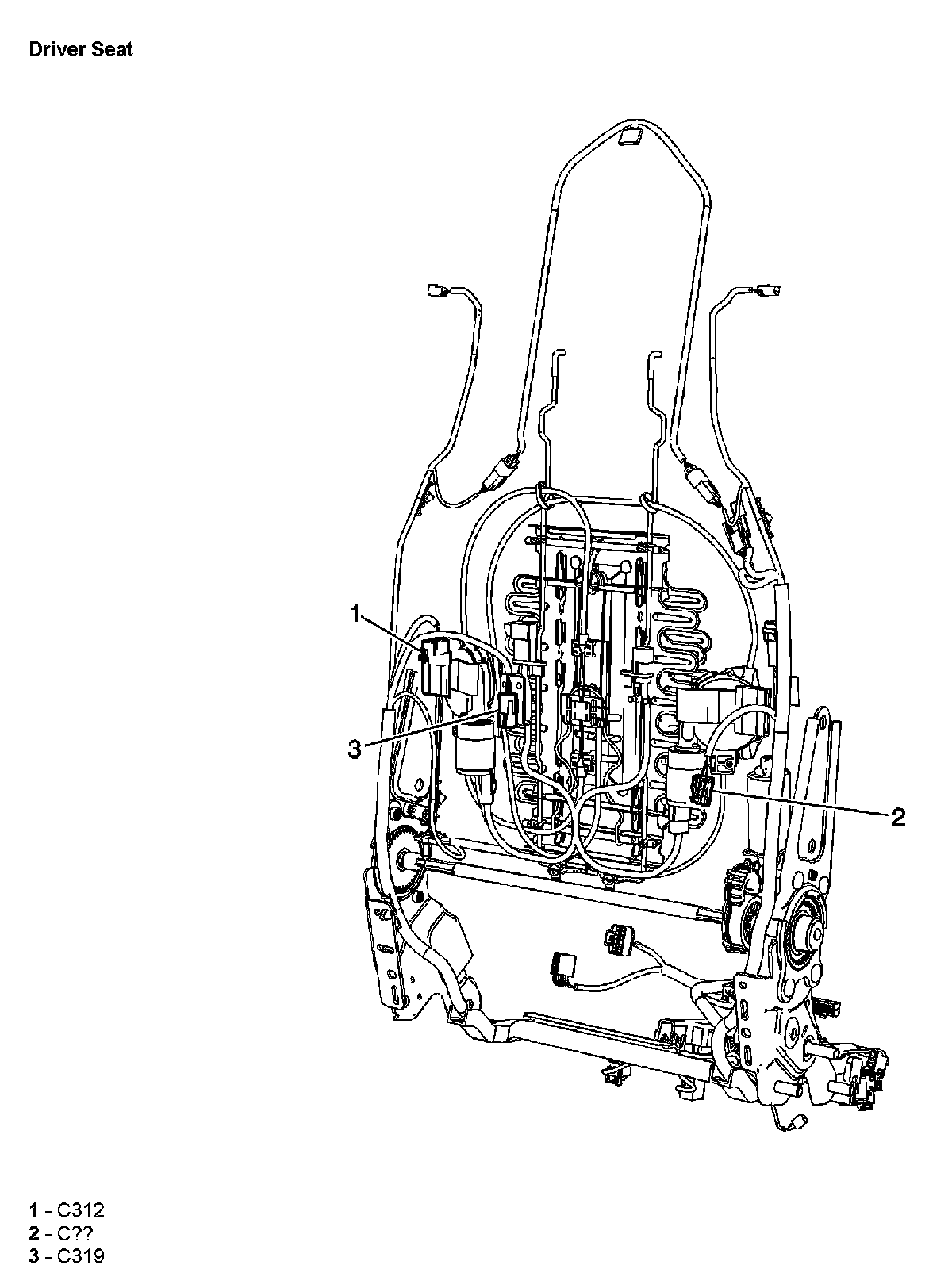

Driver Seat:
