Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Harness >> Fascia Views

Fascia Views

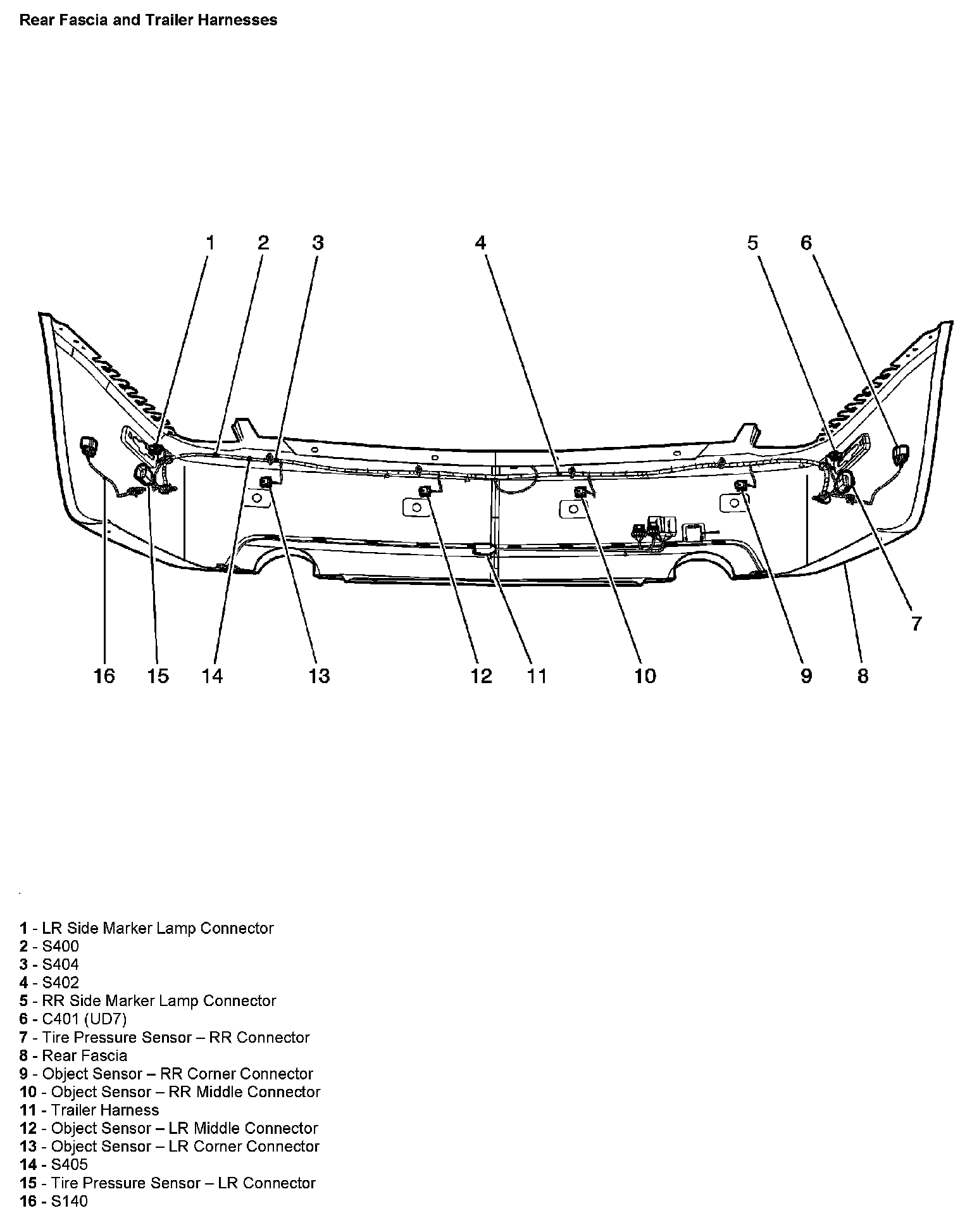

Rear Fascia And Trailer Harnesses:
