Suspension Control ( Automatic - Electronic )

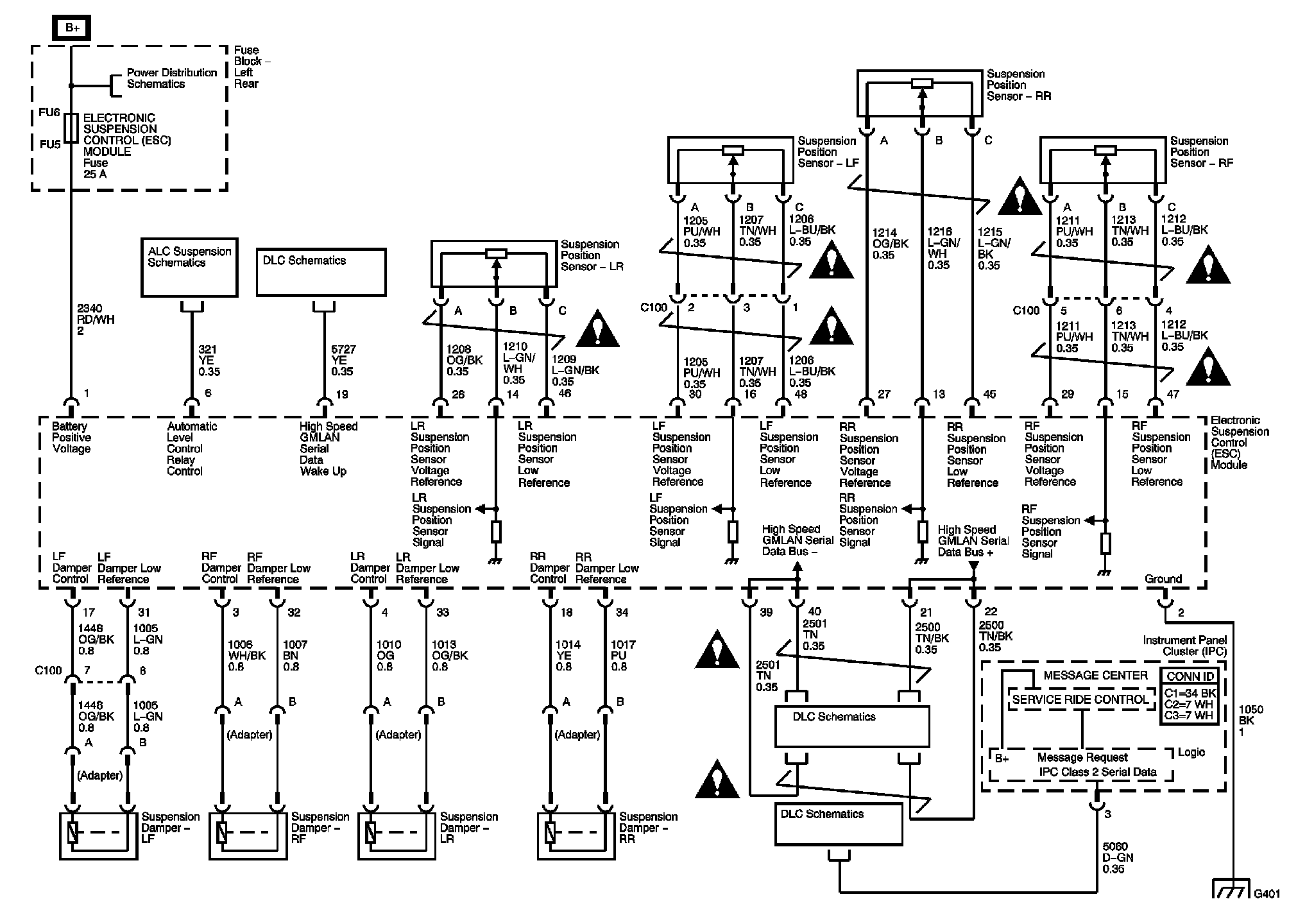

Suspension Controls Diagrams

Suspension Controls Diagrams:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
