Rear Seat Diagrams

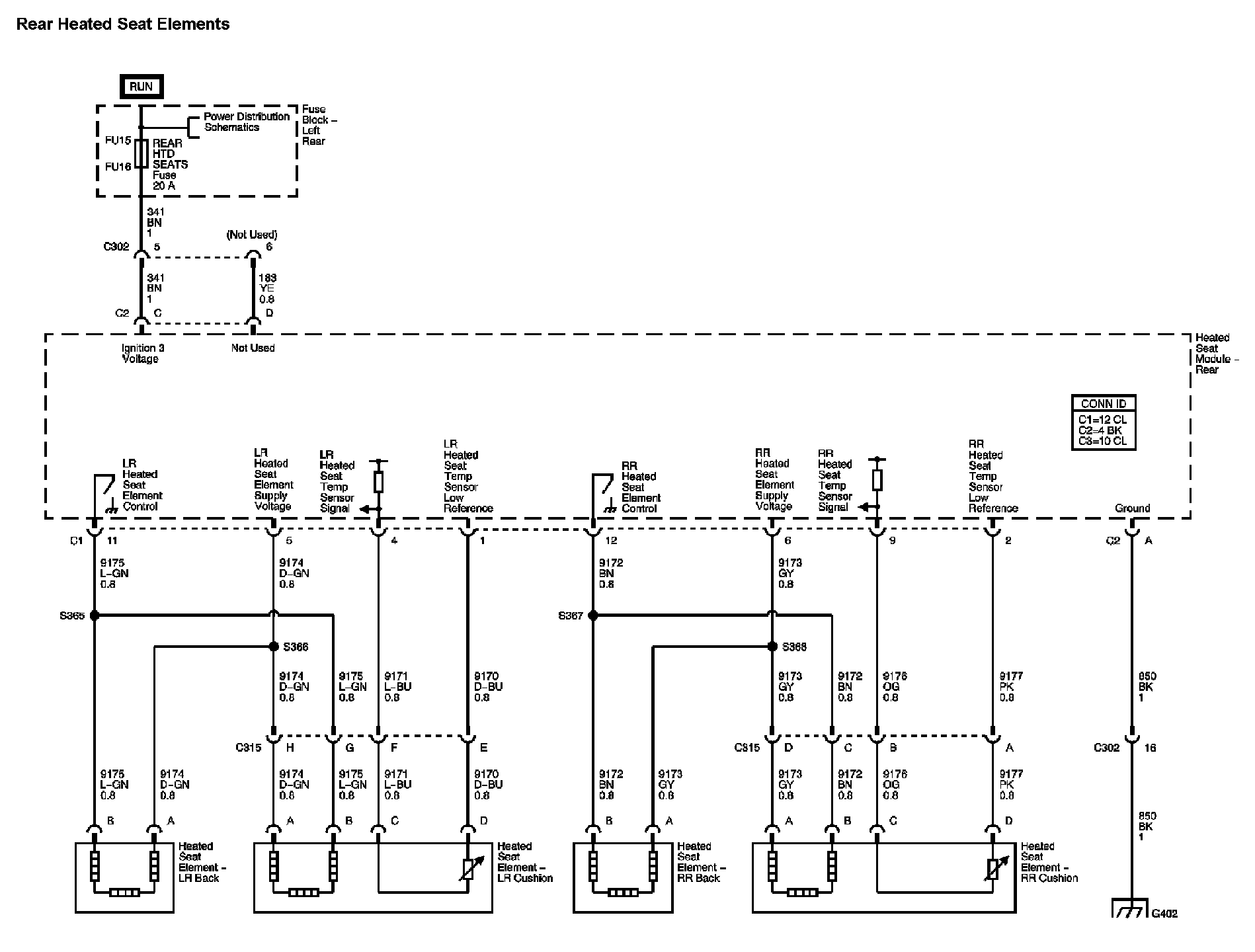

Rear Seat Diagram 1:

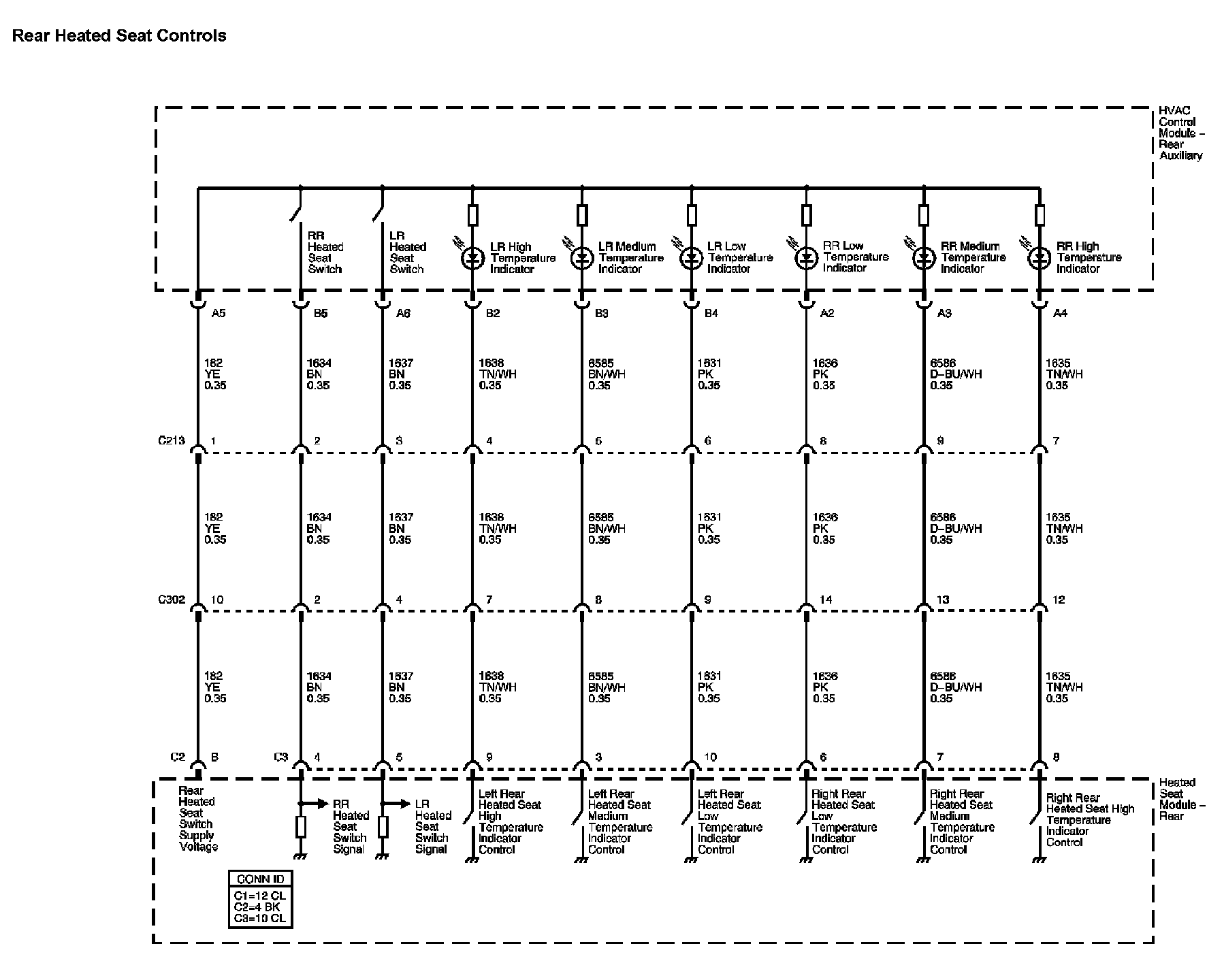

Rear Seat Diagram 2:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
