Radio/Audio System Diagrams

Radio/Audio System Diagram 1:

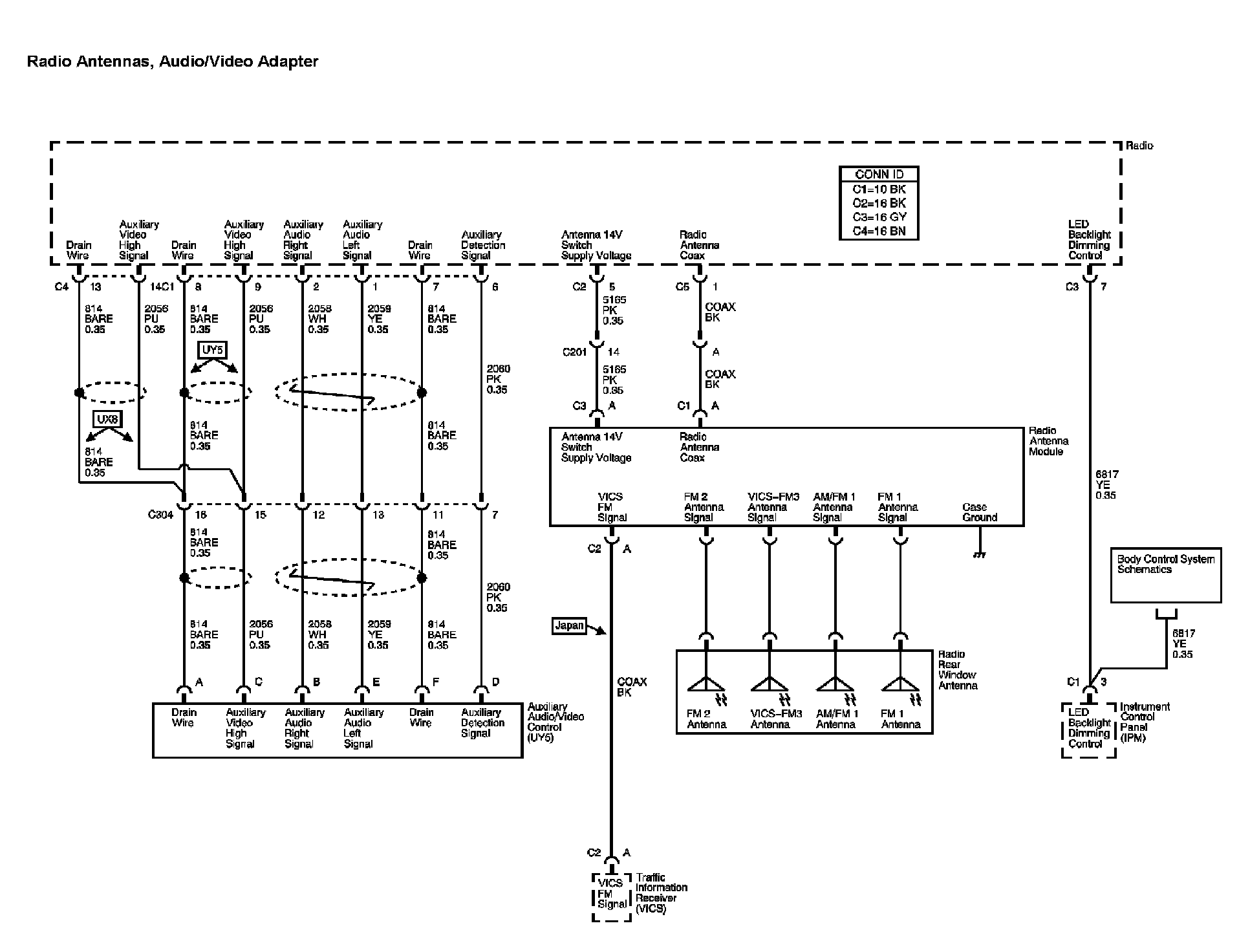

Radio/Audio System Diagram 2:

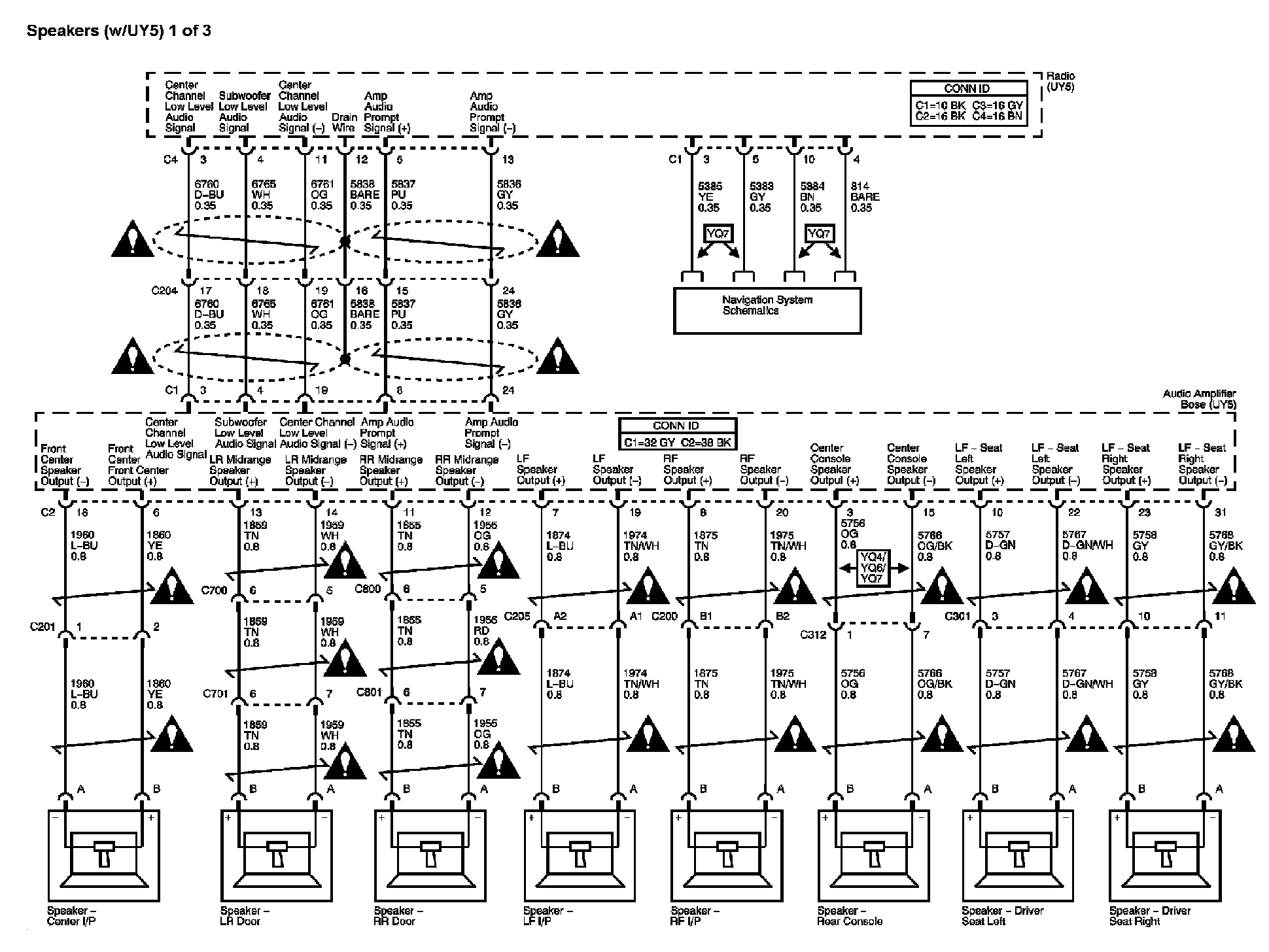

Radio/Audio System Diagram 3 (1 Of 3):

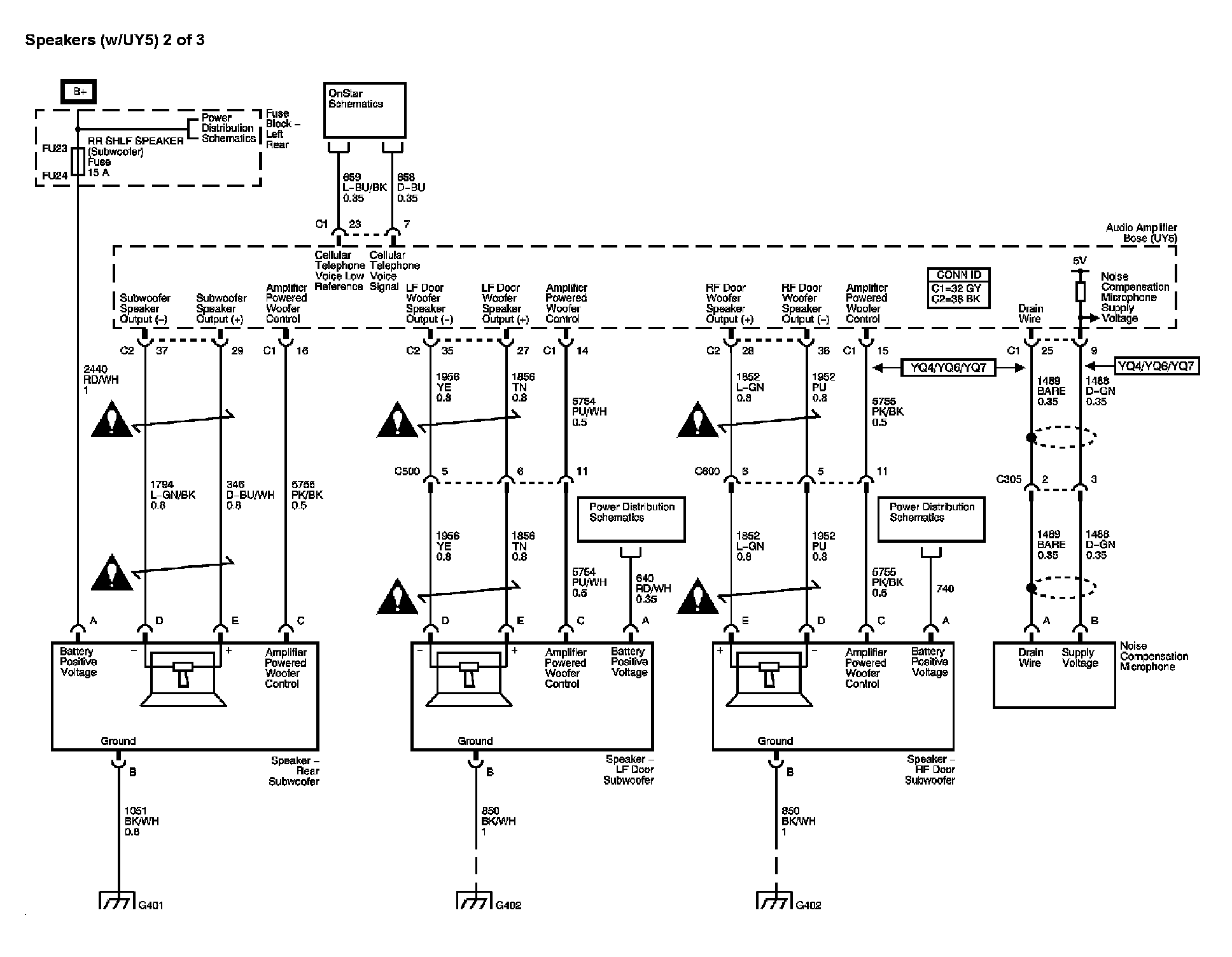

Radio/Audio System Diagram 3 (2 Of 3):

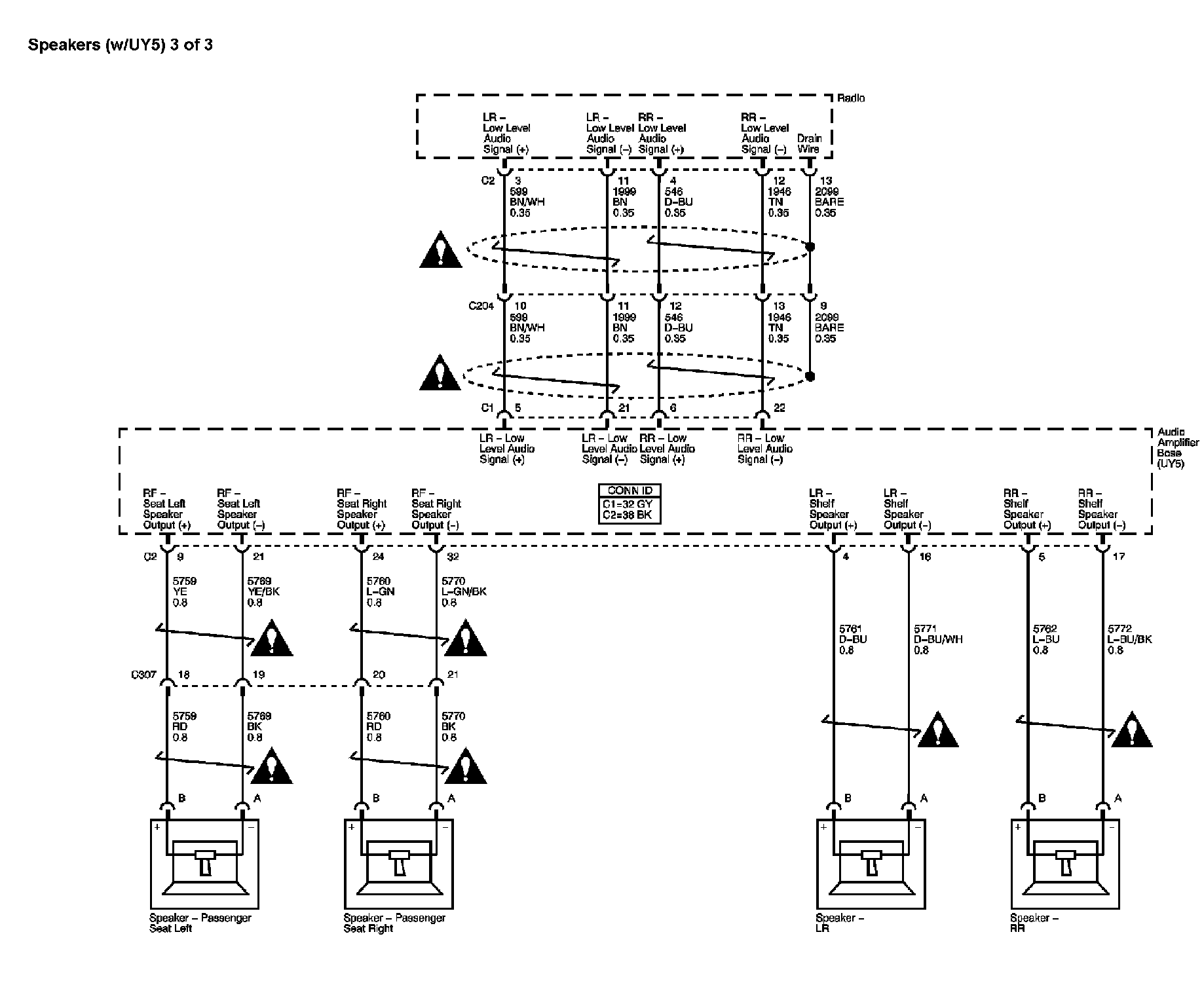

Radio/Audio System Diagram 3 (3 Of 3):

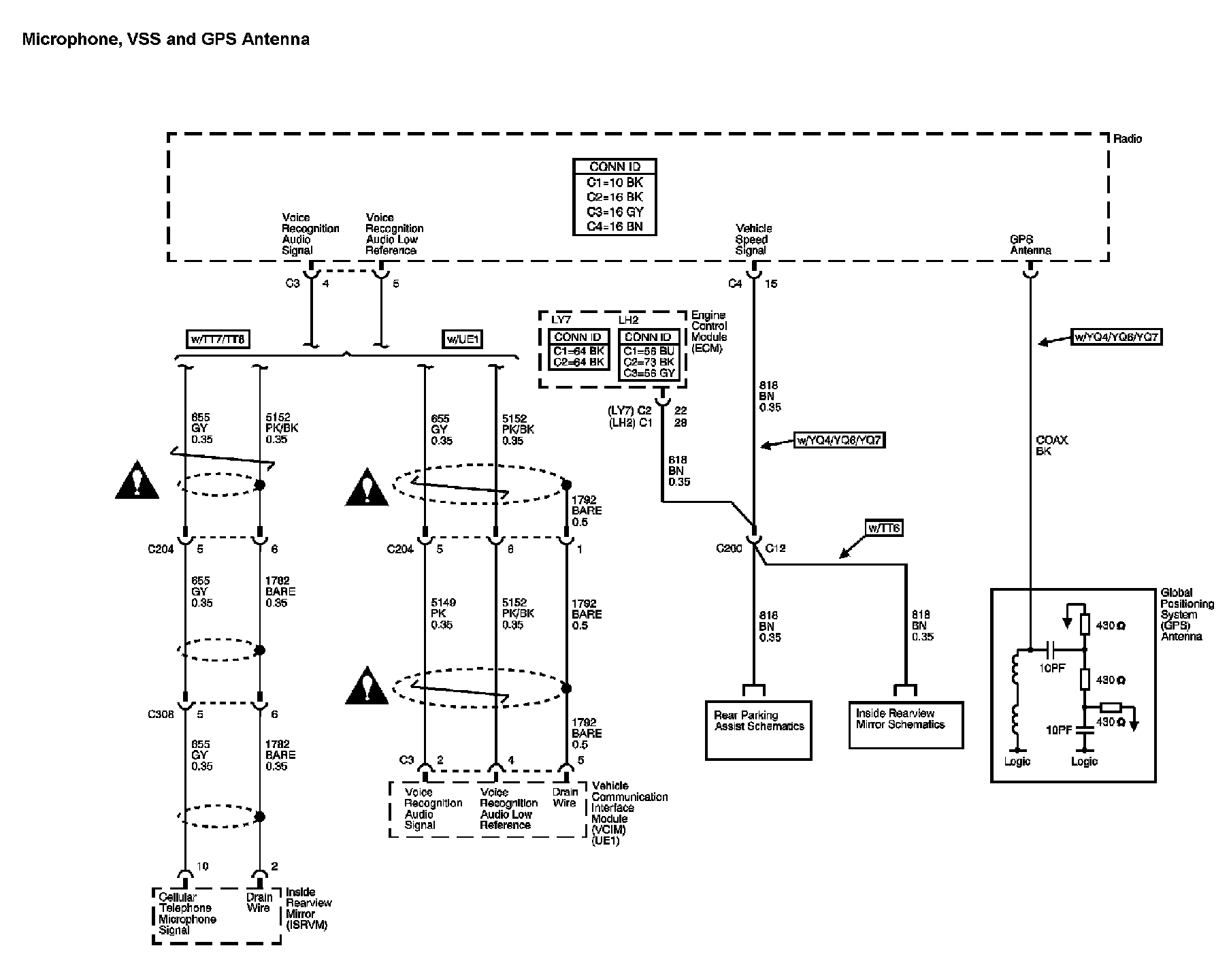

Radio/Audio System Diagram 4:

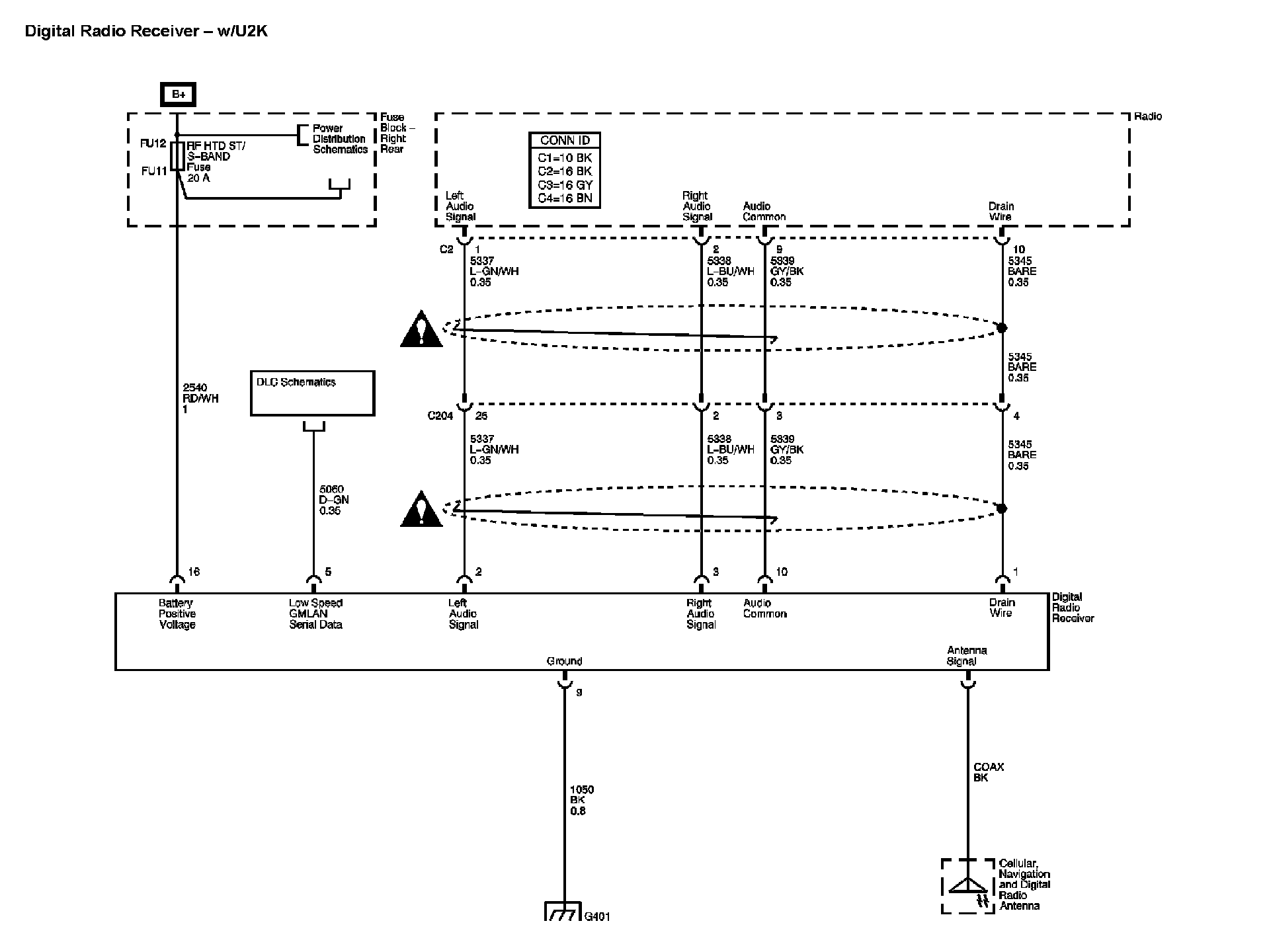

Radio/Audio System Diagram 5:

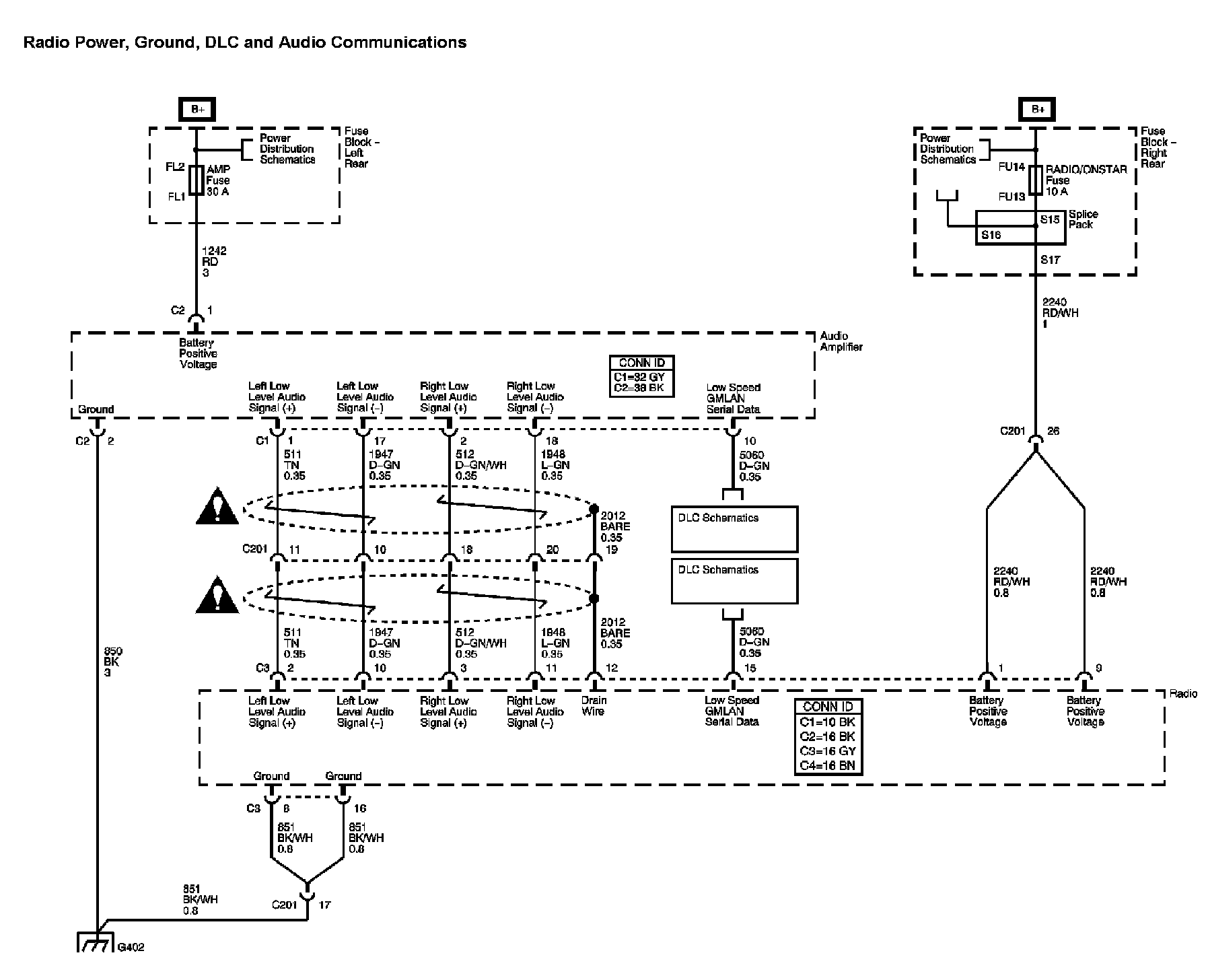

Radio/Audio System Diagram 6:

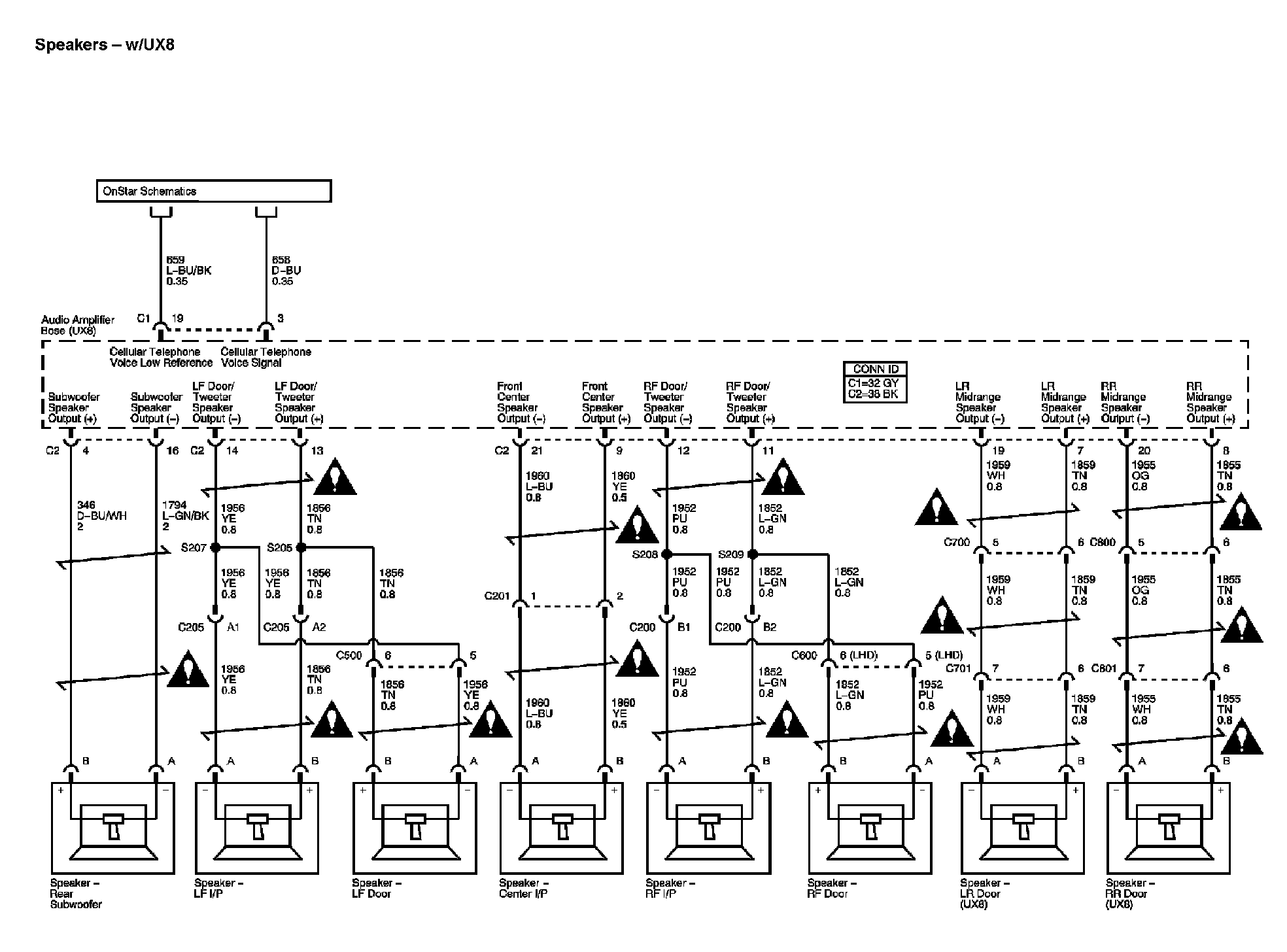

Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
