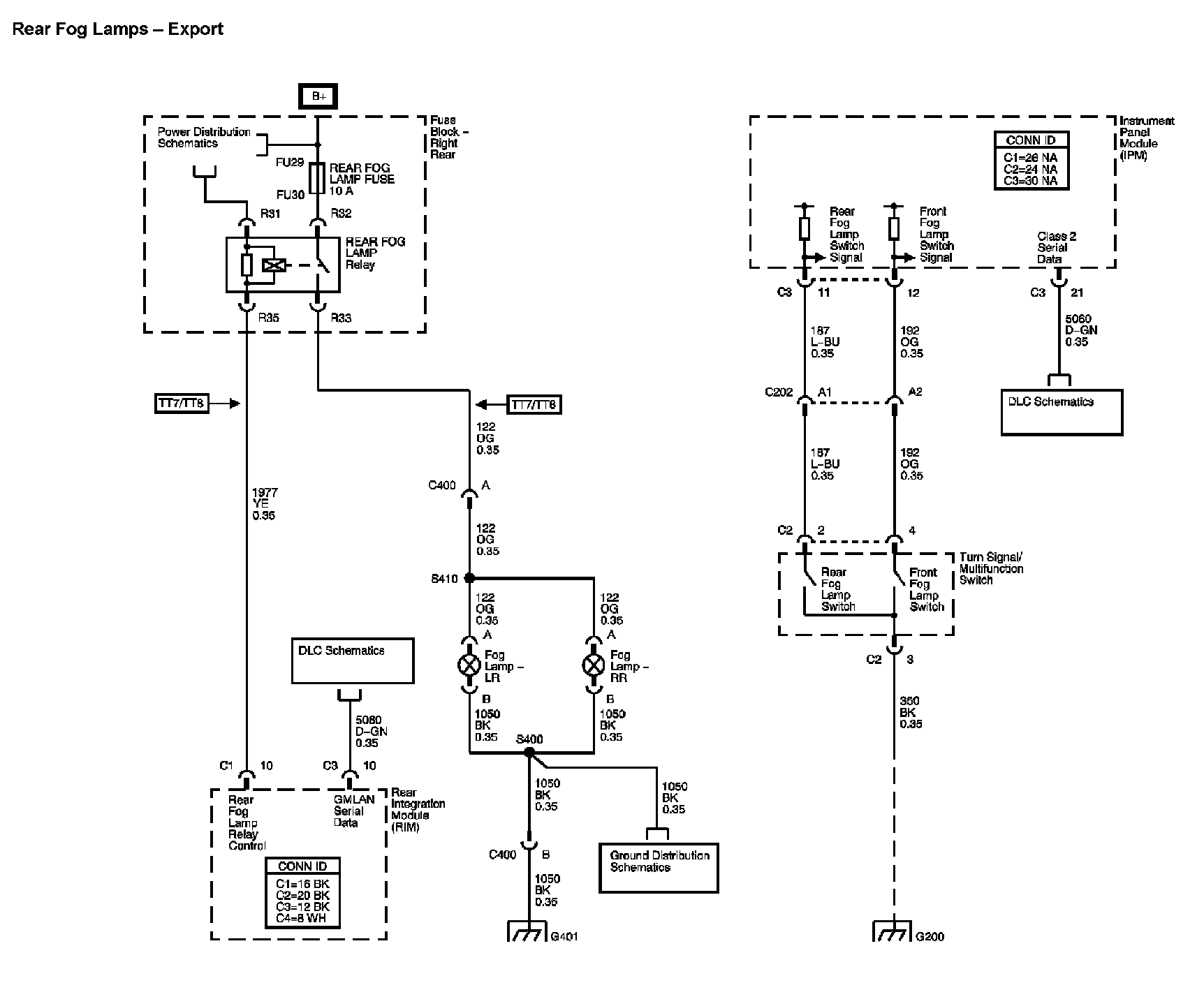

Fog Lights Diagram 2



Fog Lights Diagram 2:






Previous Diagram: Fog Lights Diagram 1

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
