Antilock Brakes / Traction Control Systems

ABS SCHEMATICS

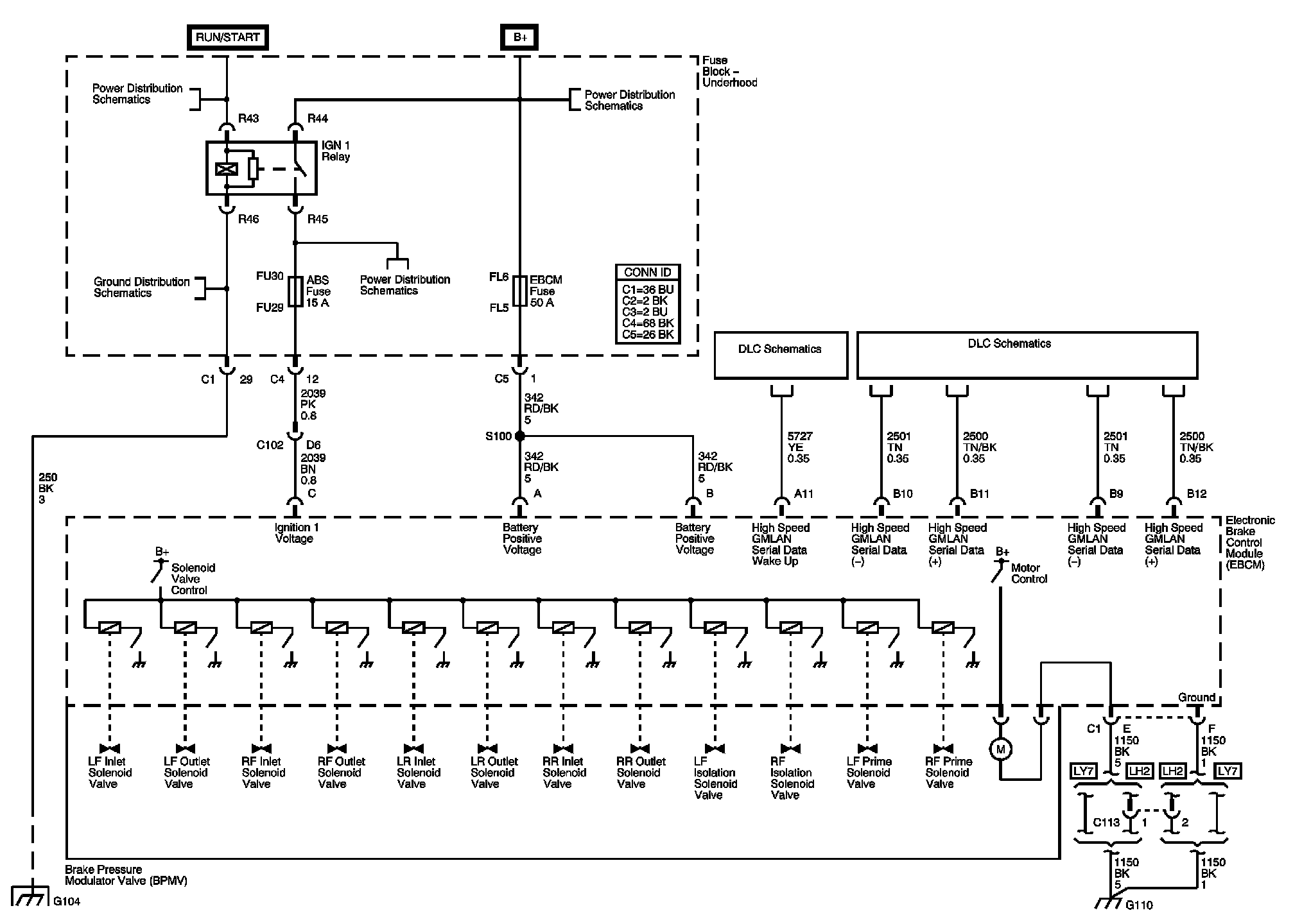

EBCM Module Power, Ground and DLC:

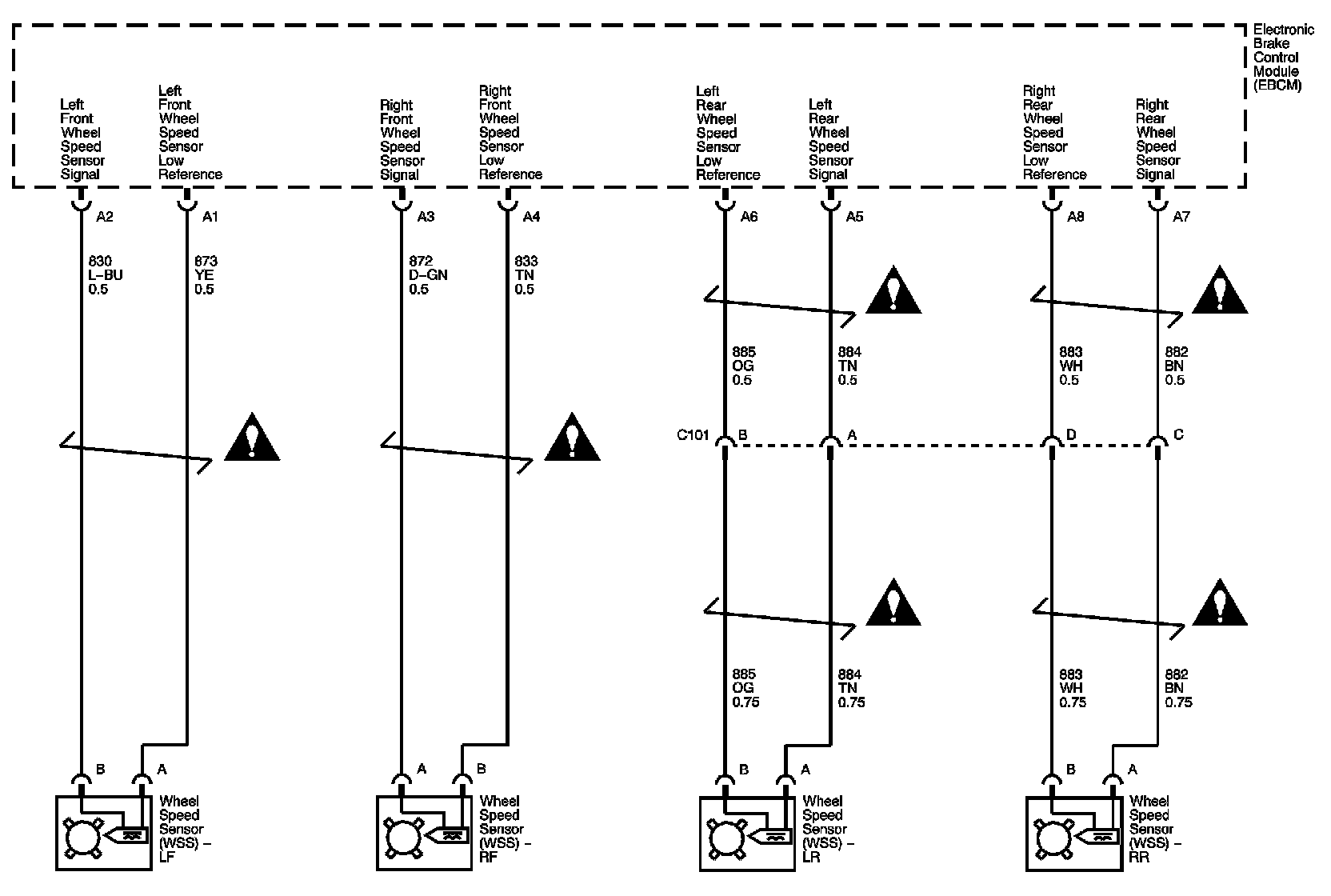

Wheel Speed Sensors:

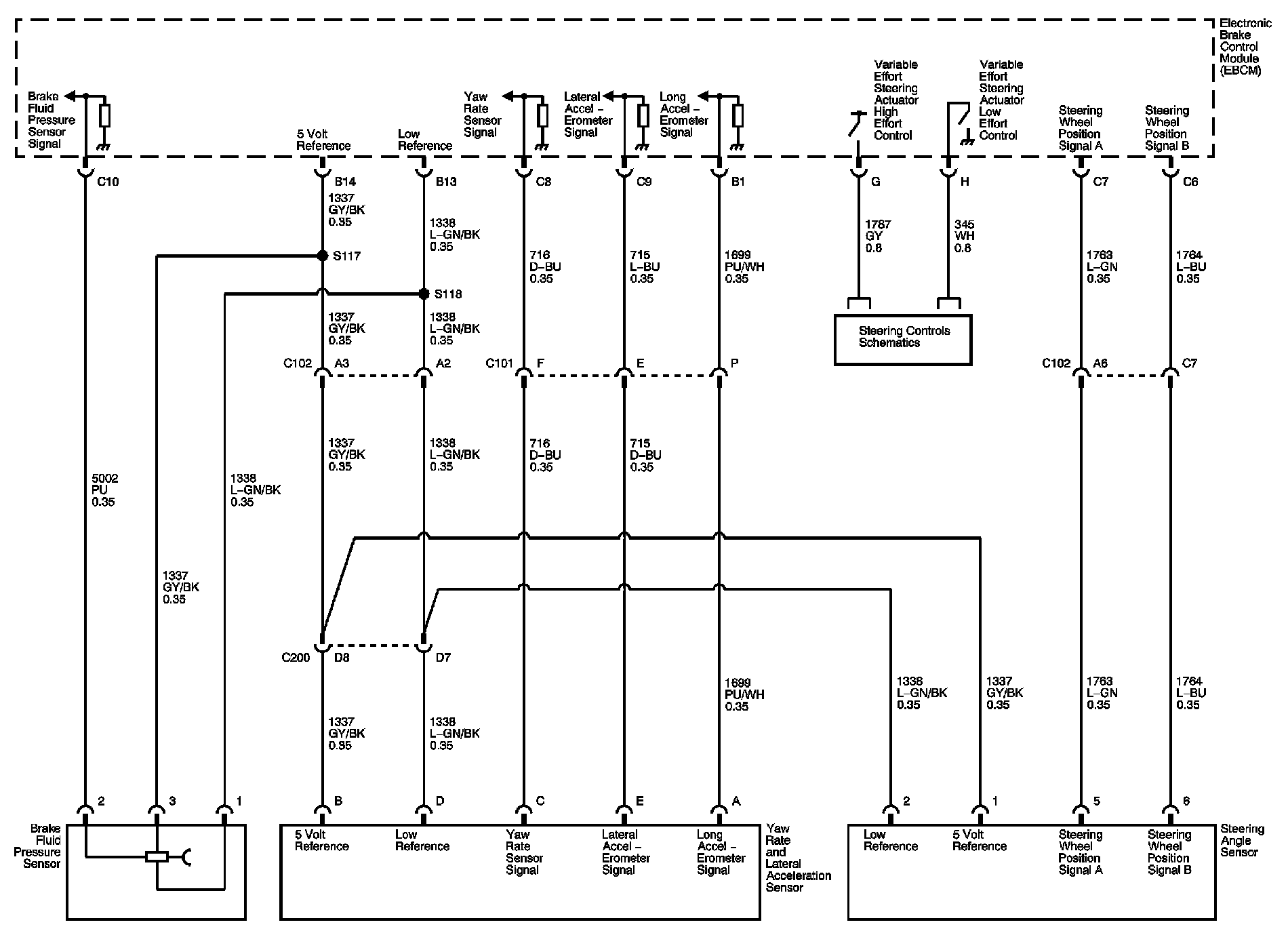

Stability Control System:

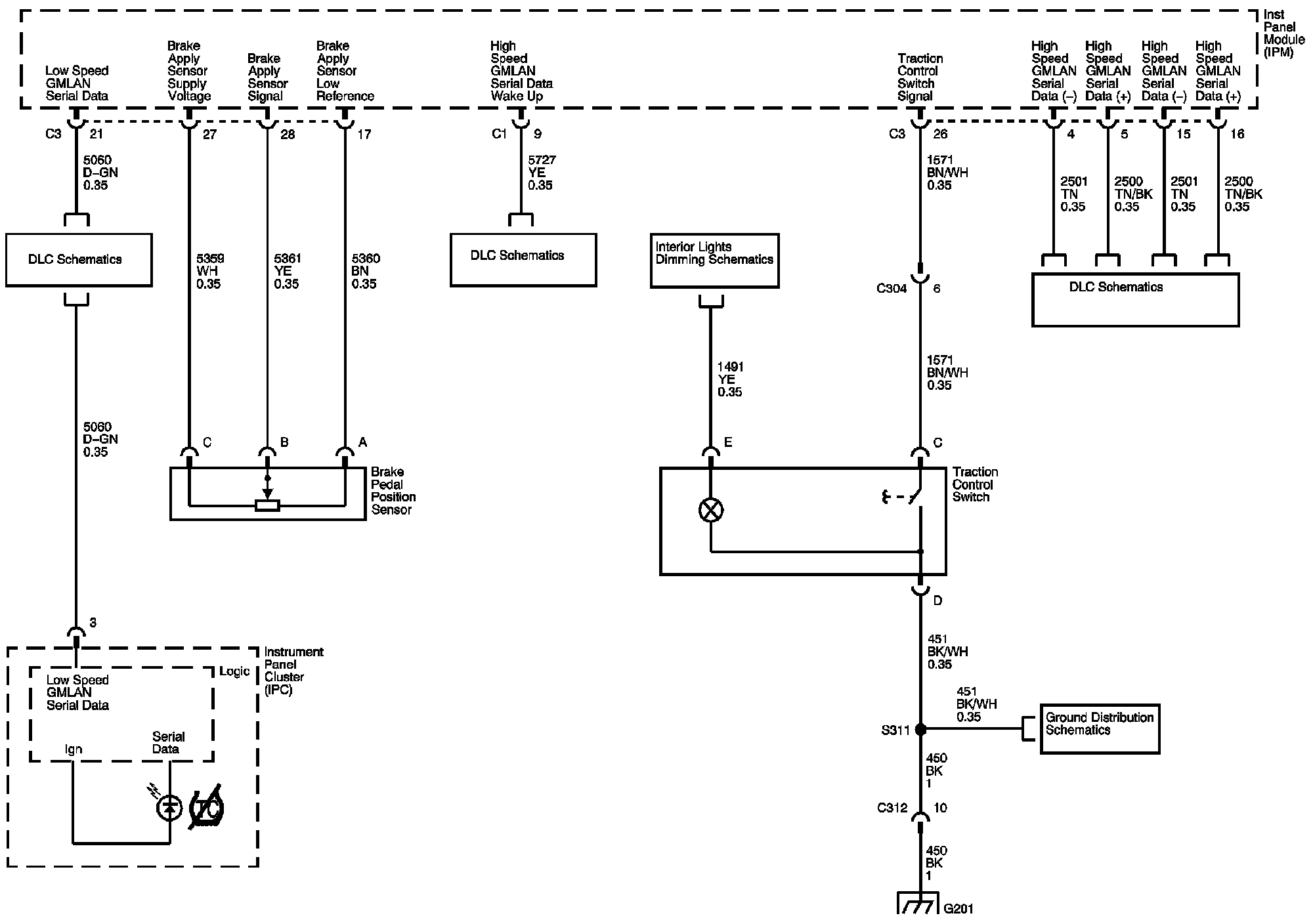

Indicator and Traction Control:

Locations: The locations for the connectors, Ground,Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
