Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2
Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2

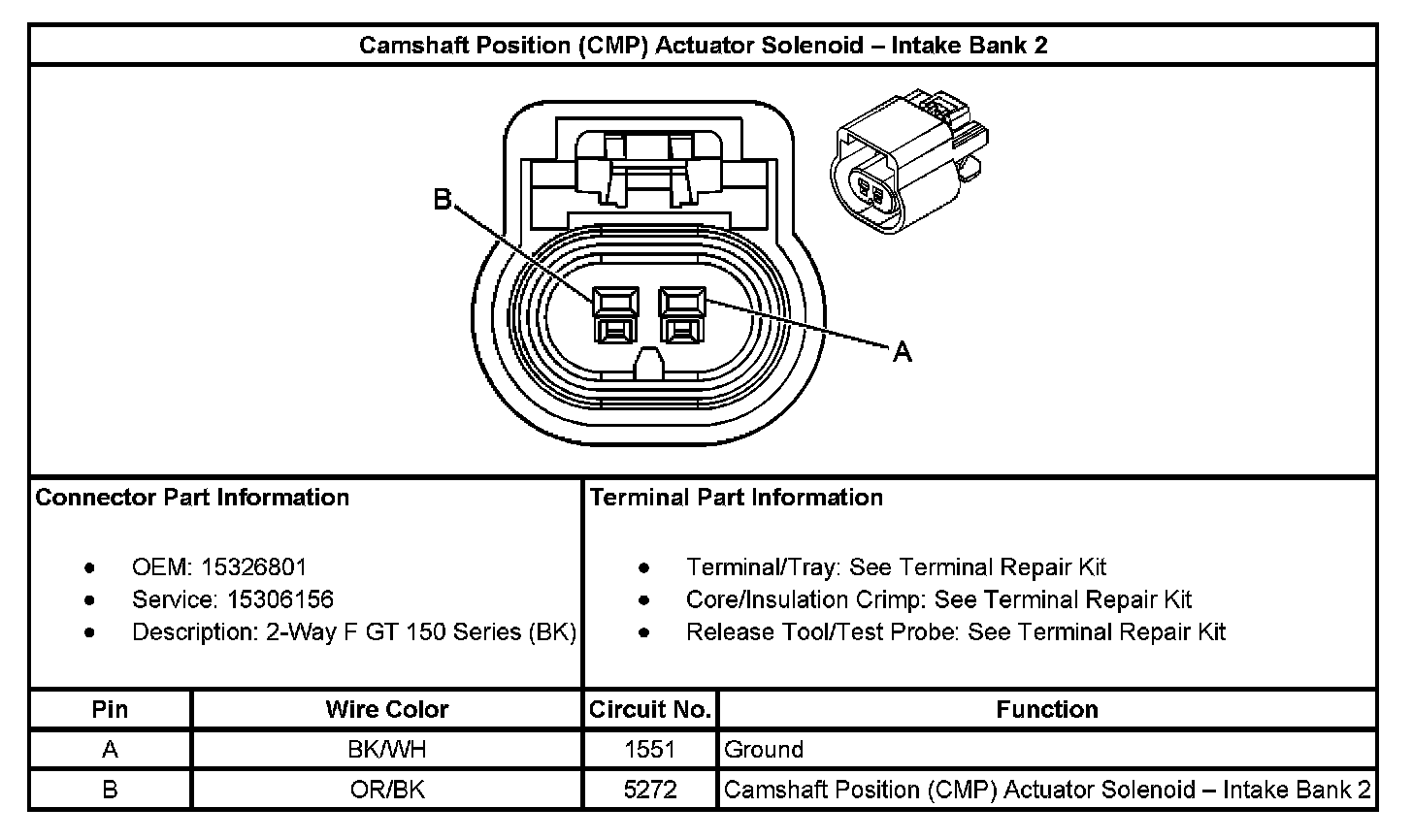

Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2:
