Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Splices By Number >> SP100 - SP199

SP100 - SP199

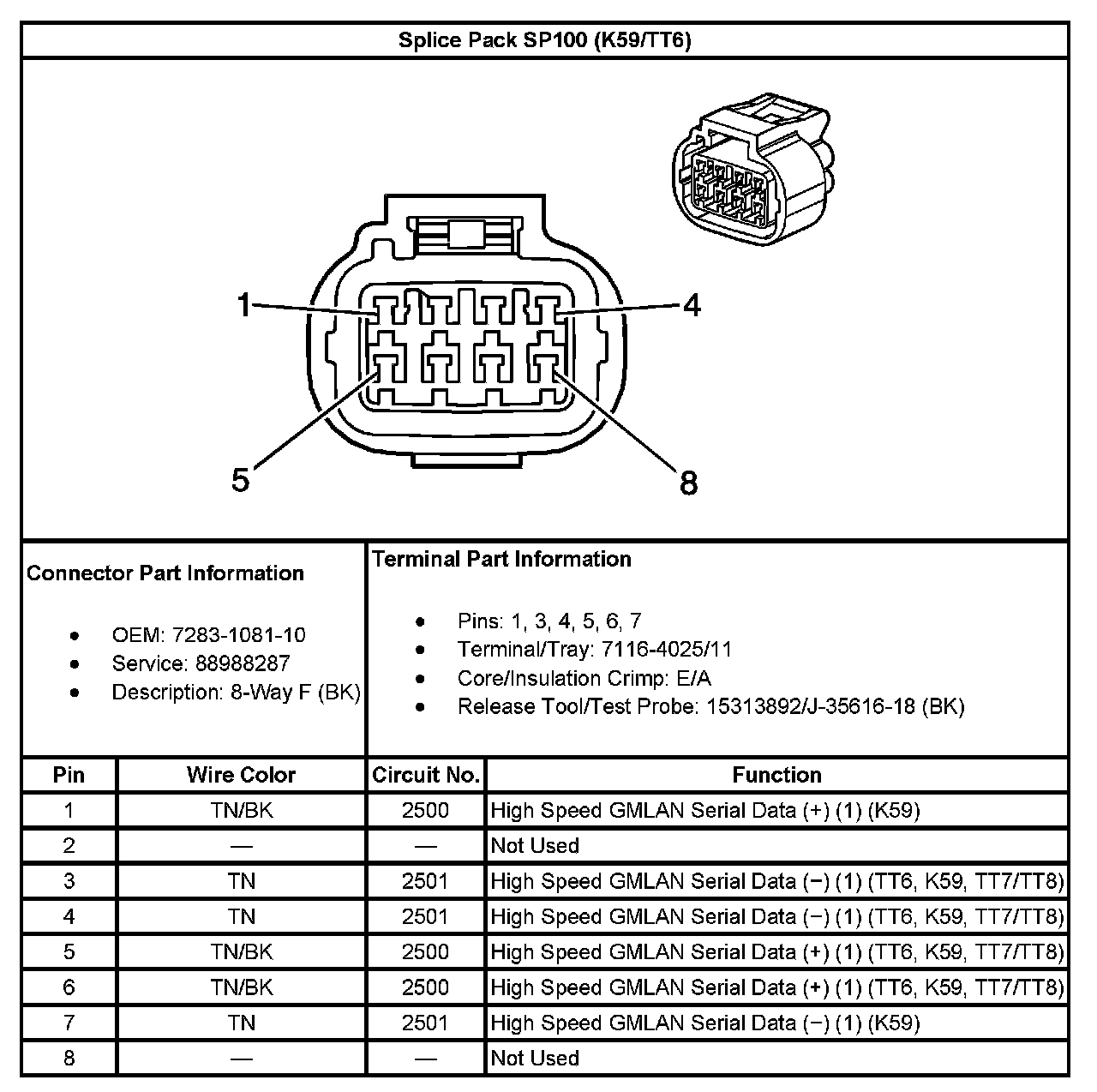

Splice Pack SP100 (With RPO Code K59/TT6):
