Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker - Rear Subwoofer

Speaker - Rear Subwoofer

Speaker - Rear Subwoofer (With RPO Code UX8):

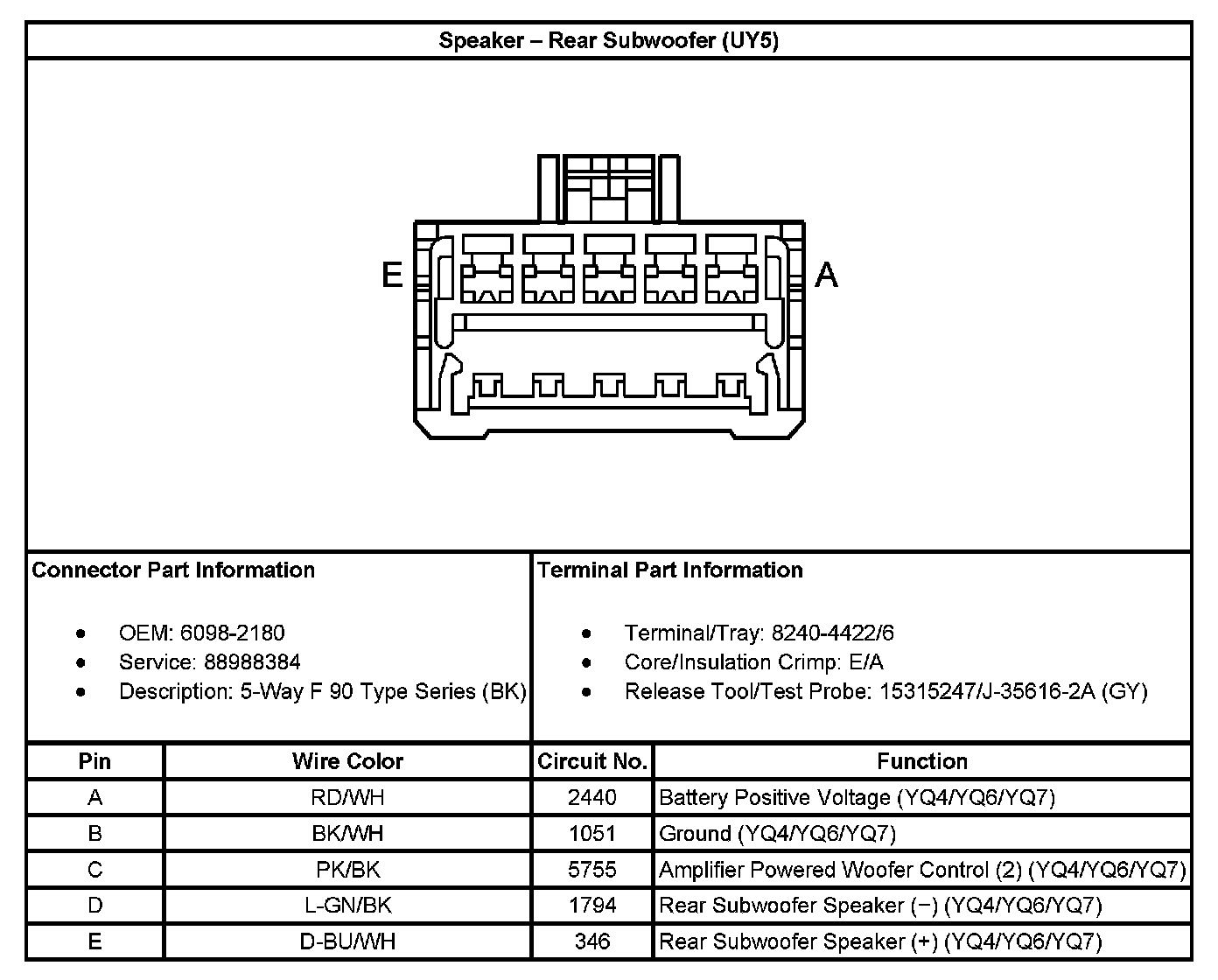

Speaker - Rear Subwoofer (With RPO Code UY5):
