STS RWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>
Heated Seat Element - RR
Heated Seat Element - RR
Heated Seat Element - RR Back (With RPO Code KA6):

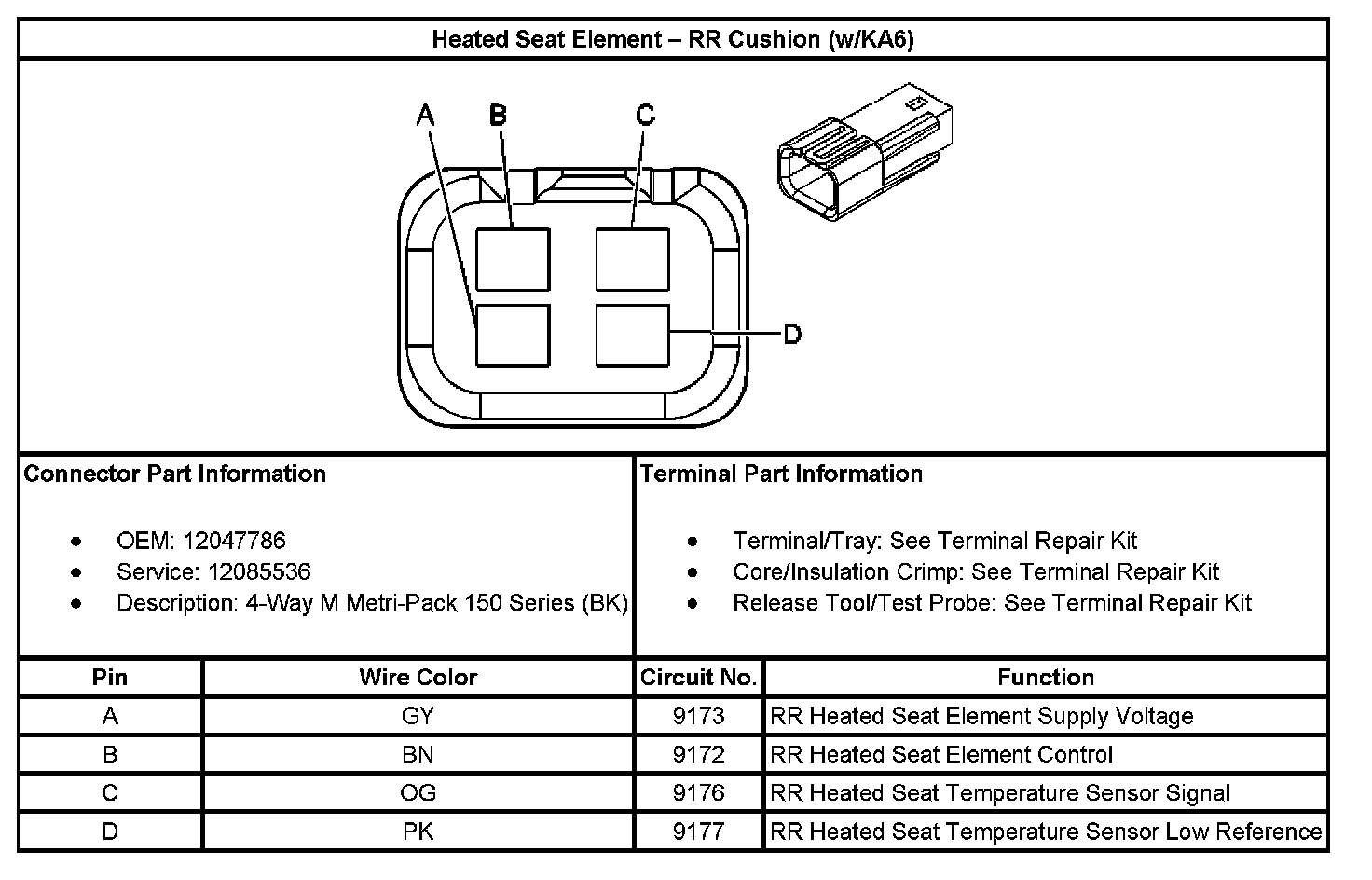

Heated Seat Element - RR Cushion (With RPO Code KA6):
