Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Buckle Switch

Seat Belt Buckle Switch

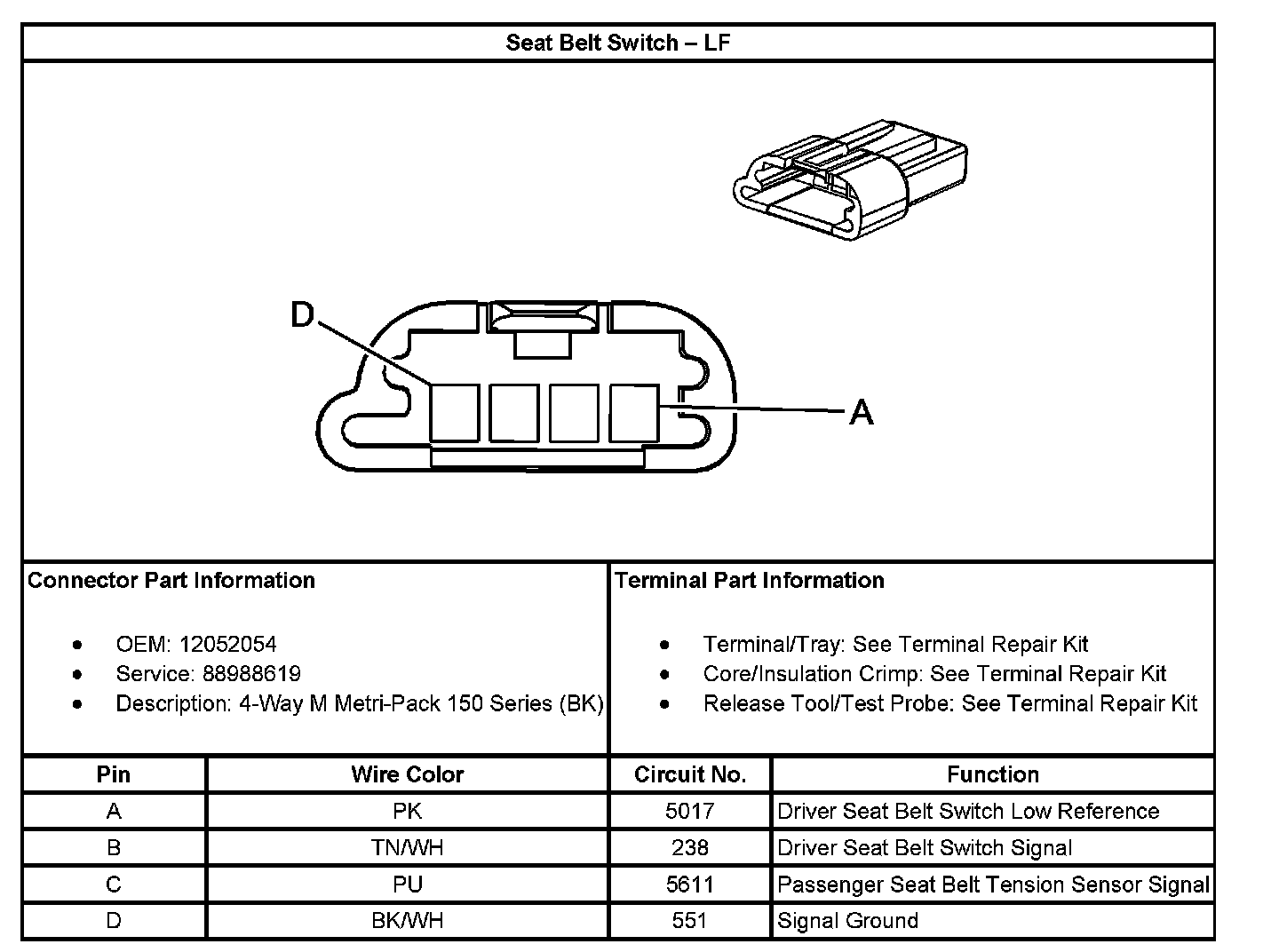

Seat Belt Switch - LF:

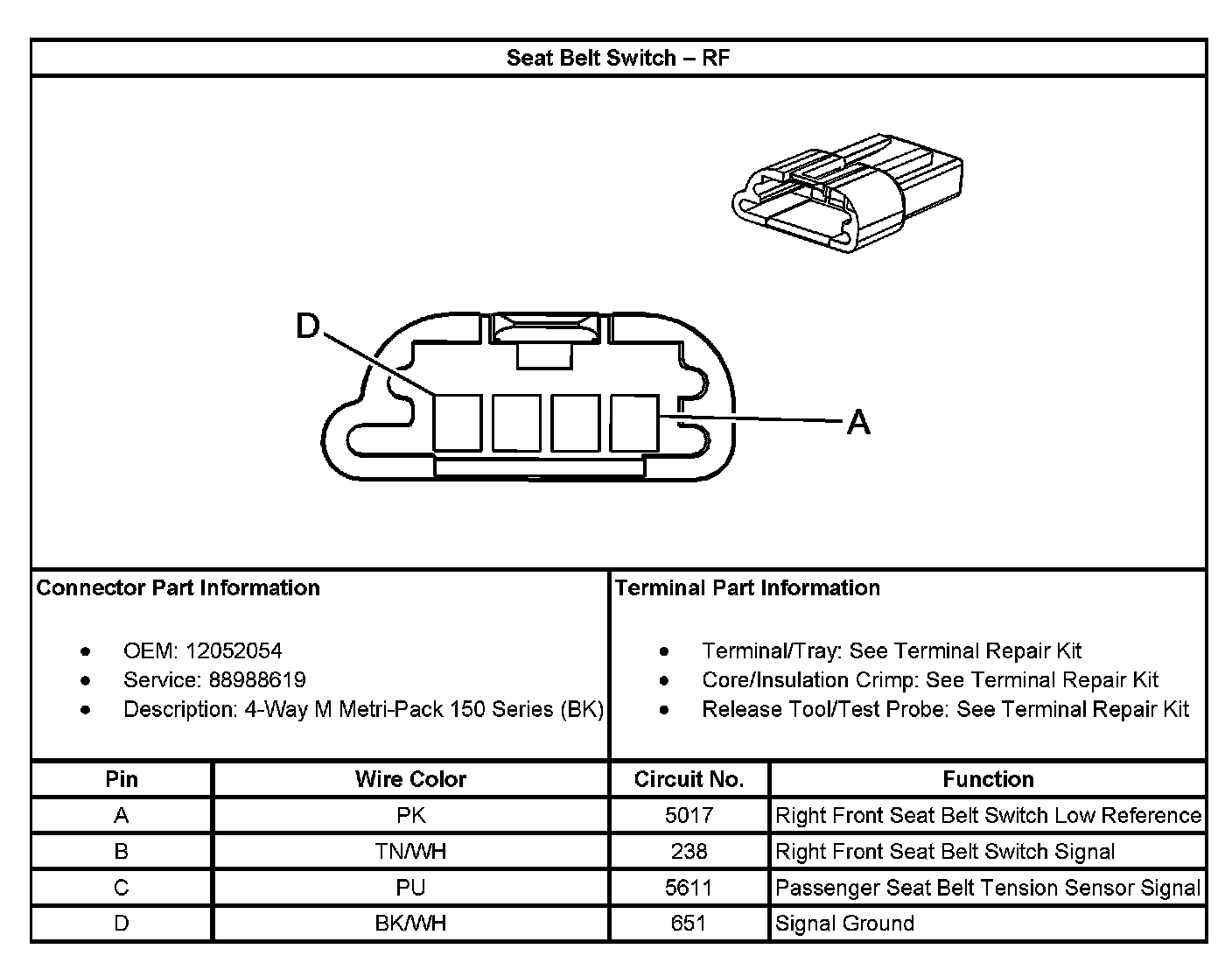

Seat Belt Switch - RF:
