Oil Pressure Sensor
Oil Pressure Sensor

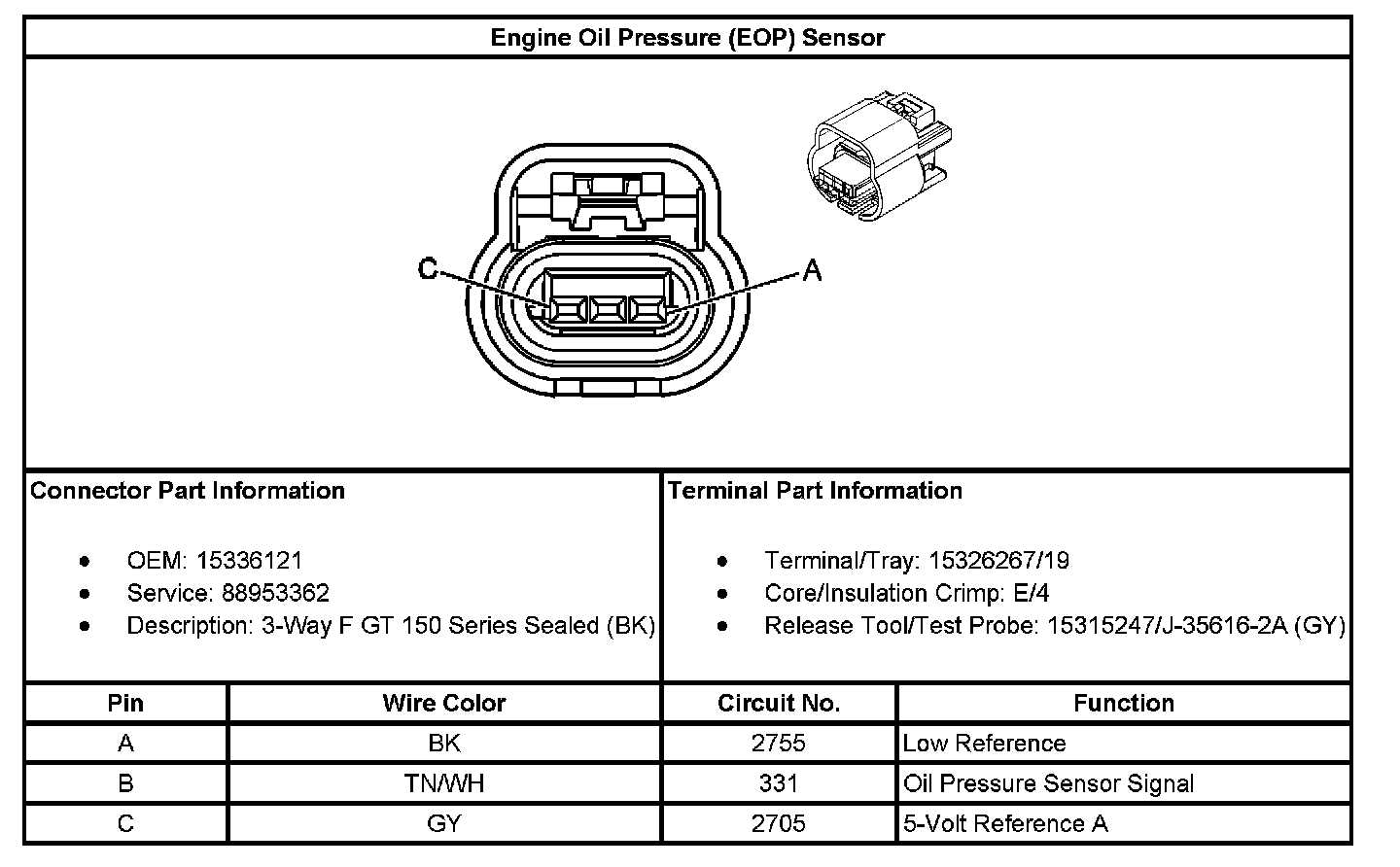

Engine Oil Pressure (EOP) Sensor:

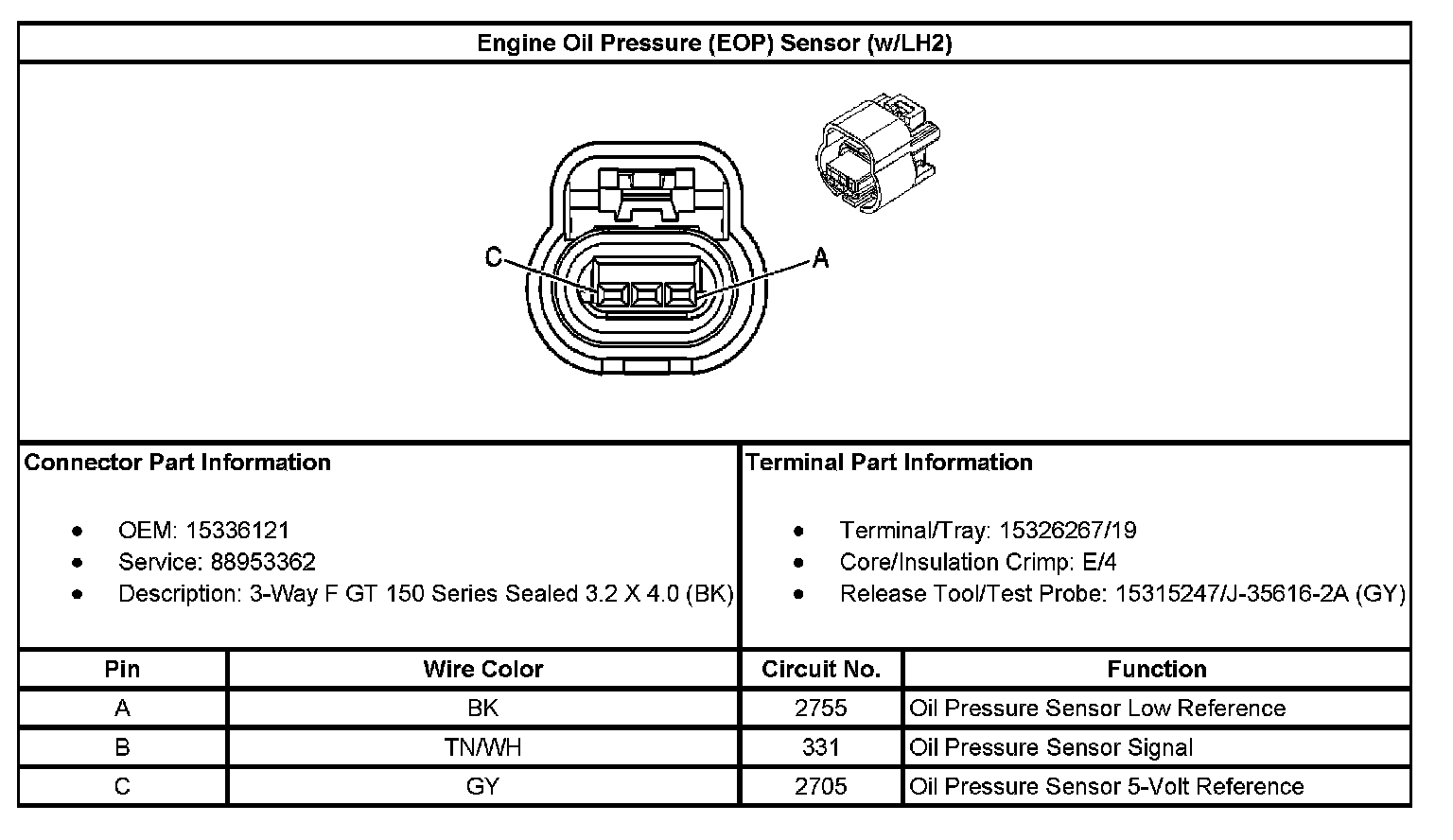

Engine Oil Pressure (EOP) Sensor:
