LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2006
>>
STS RWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C600 - C699
>>
C601
C601

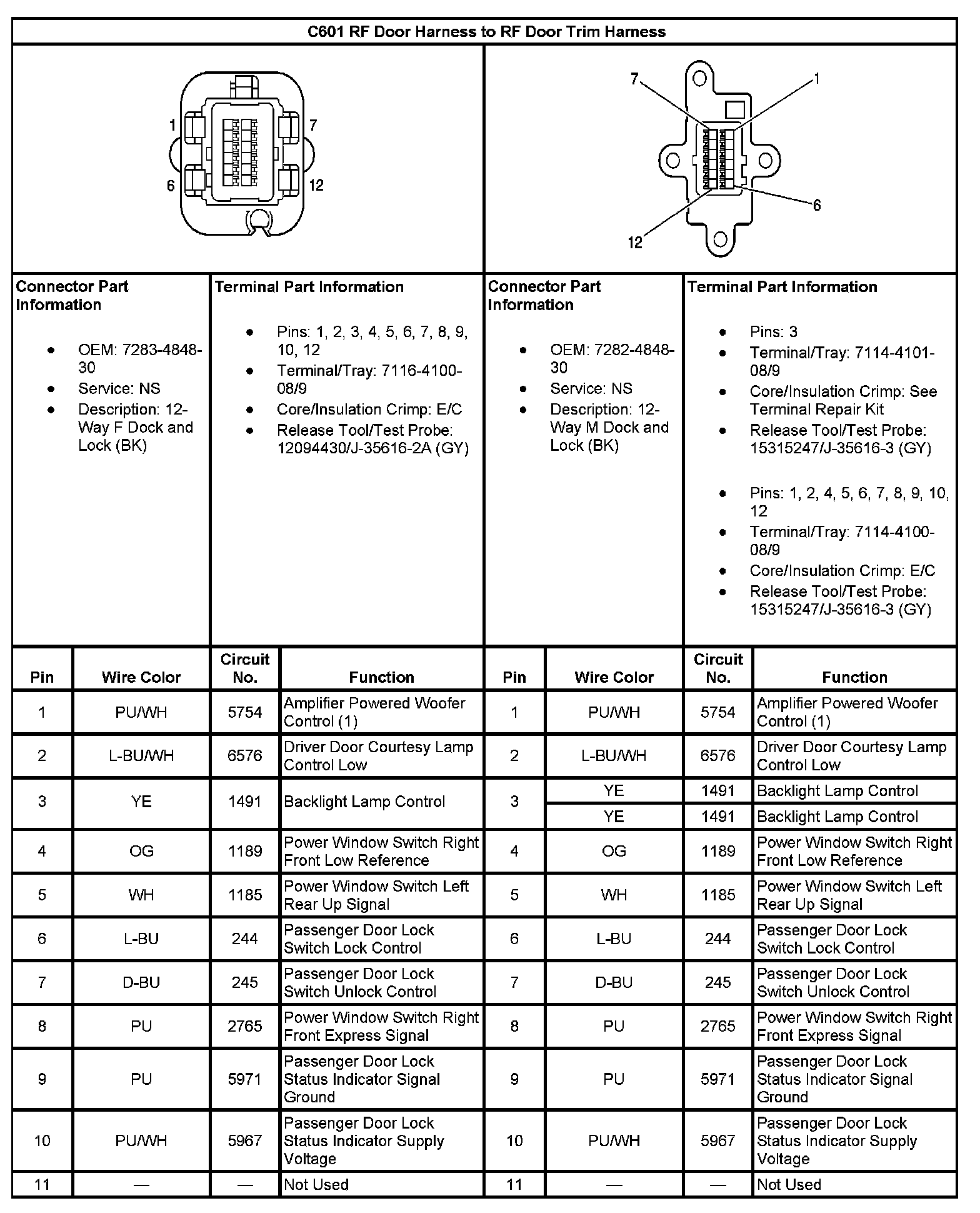

C601 RF Door Harness To RF Door Trim Harness (Part 1):

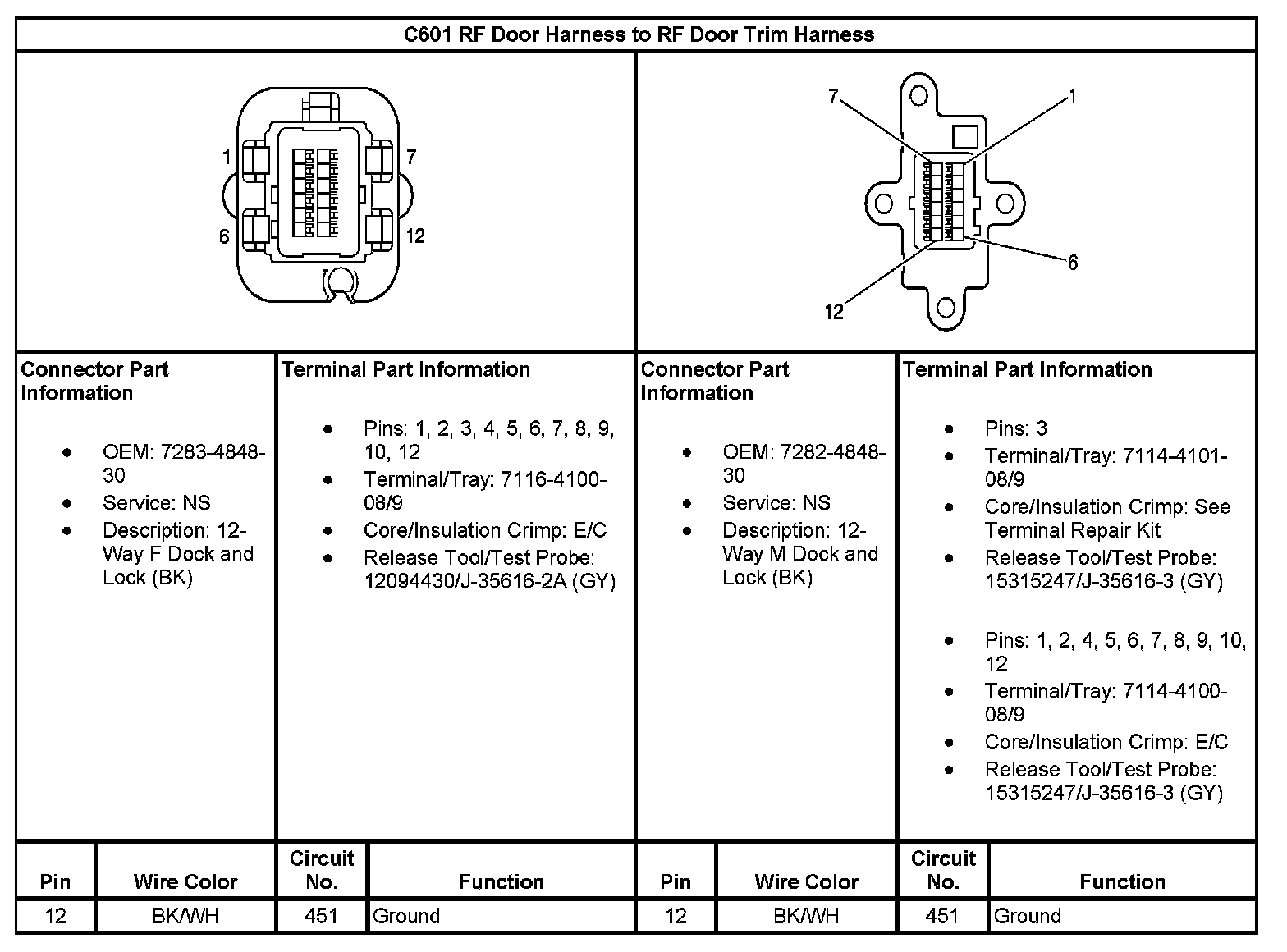

C601 RF Door Harness To RF Door Trim Harness (Part 2):
