LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2006
>>
STS RWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C101
C101

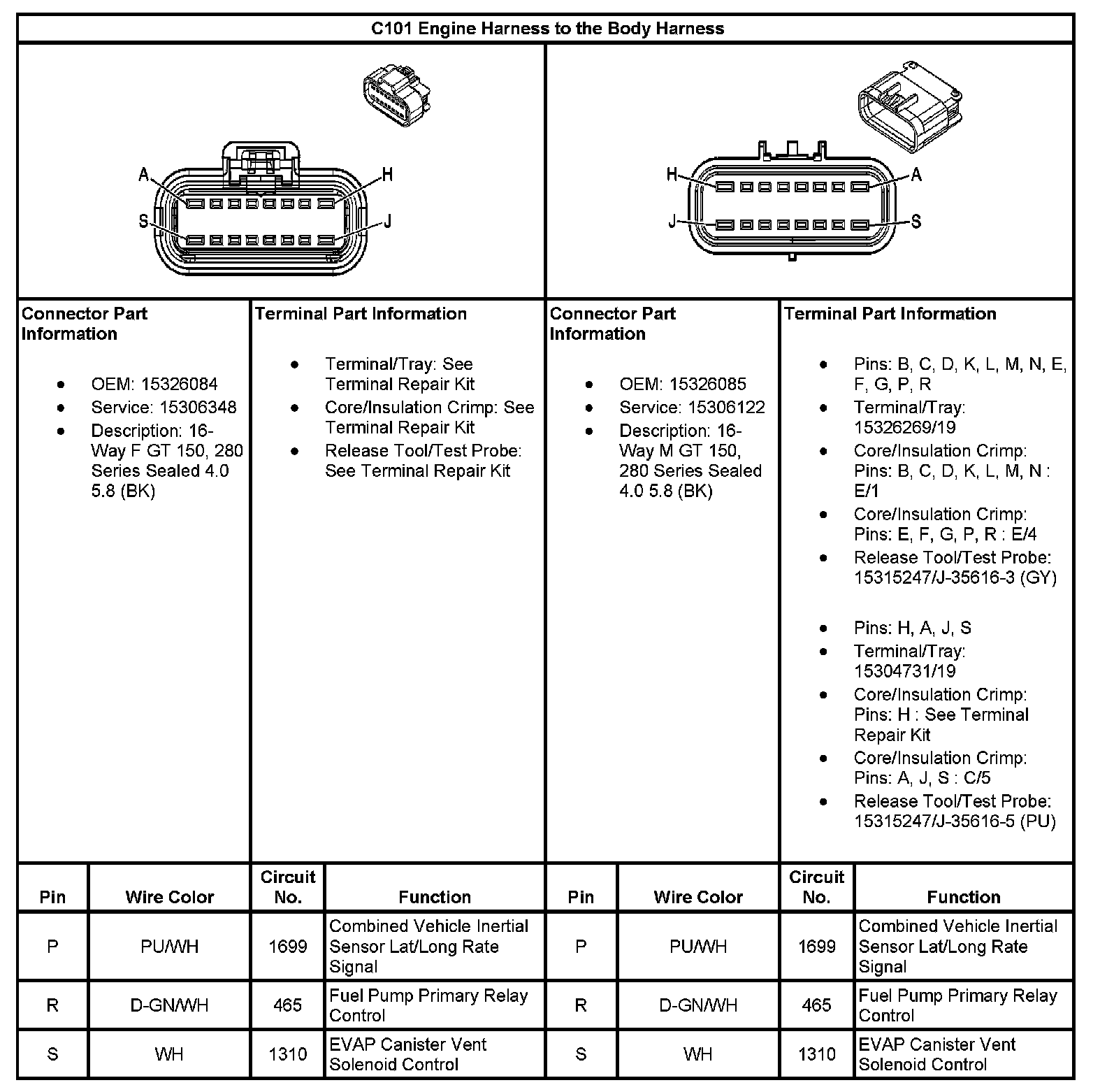

C101 Engine Harness To The Body Harness (Part 1):

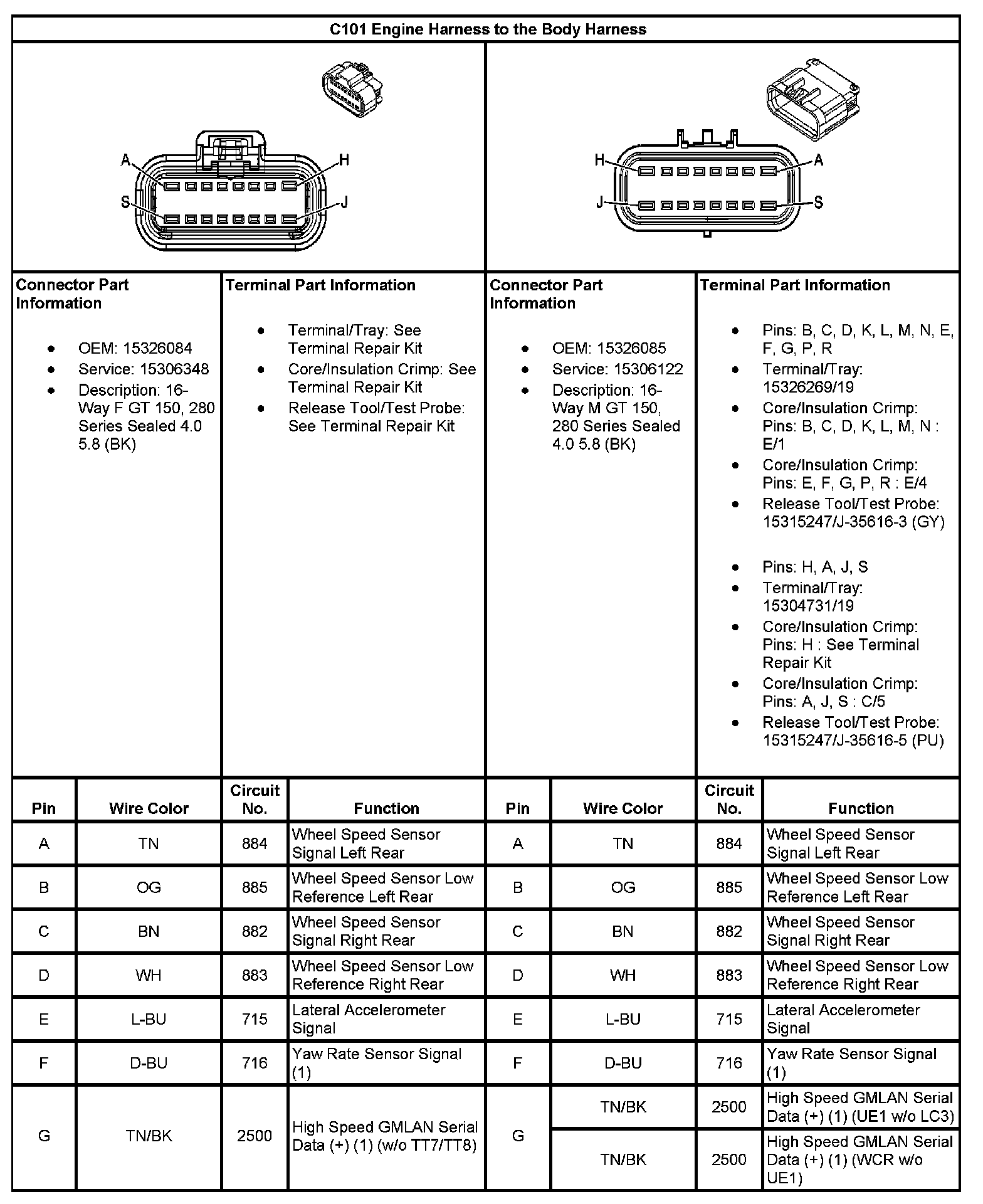

C101 Engine Harness To The Body Harness (Part 2):

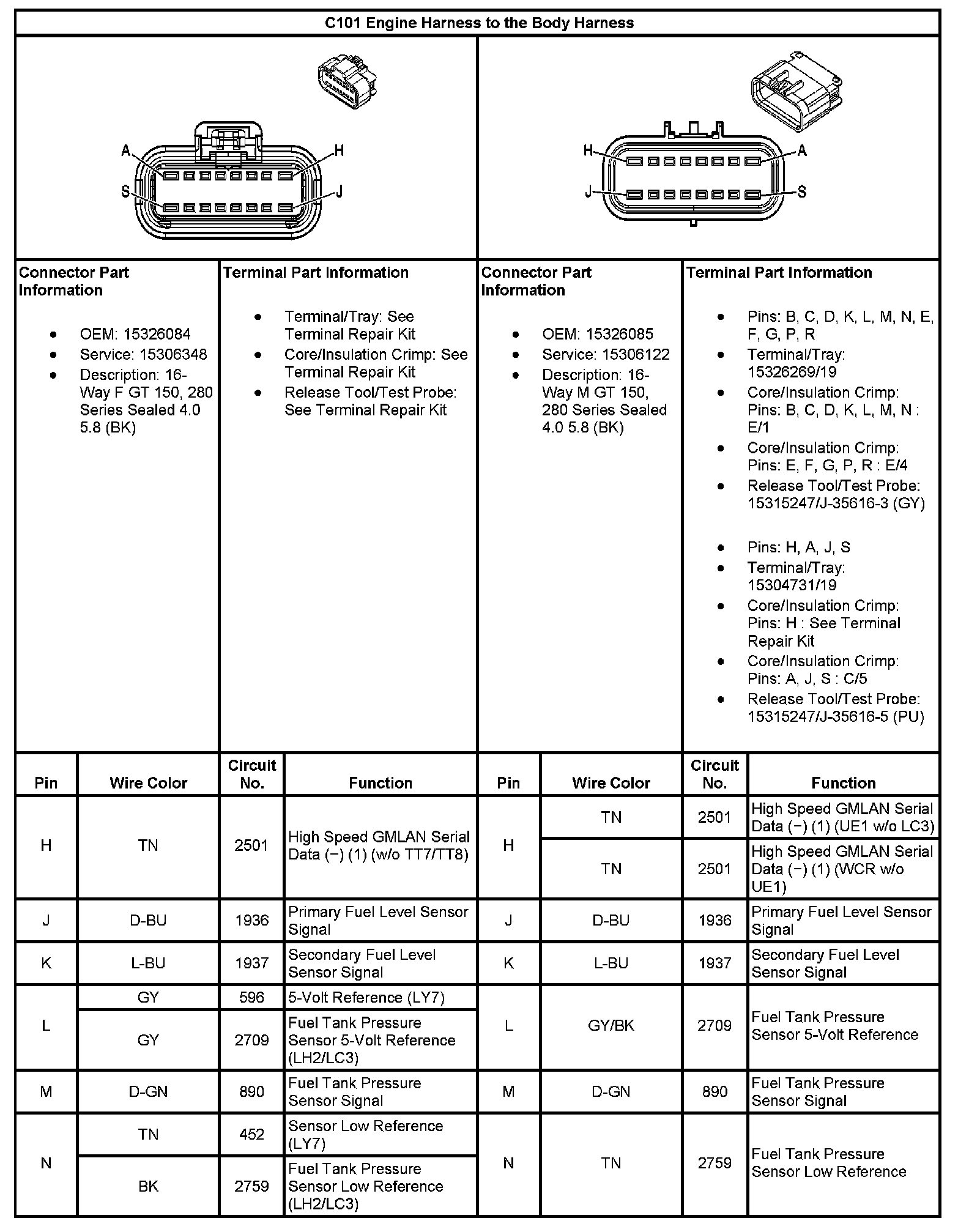

C101 Engine Harness To The Body Harness (Part 3):
