System Diagram

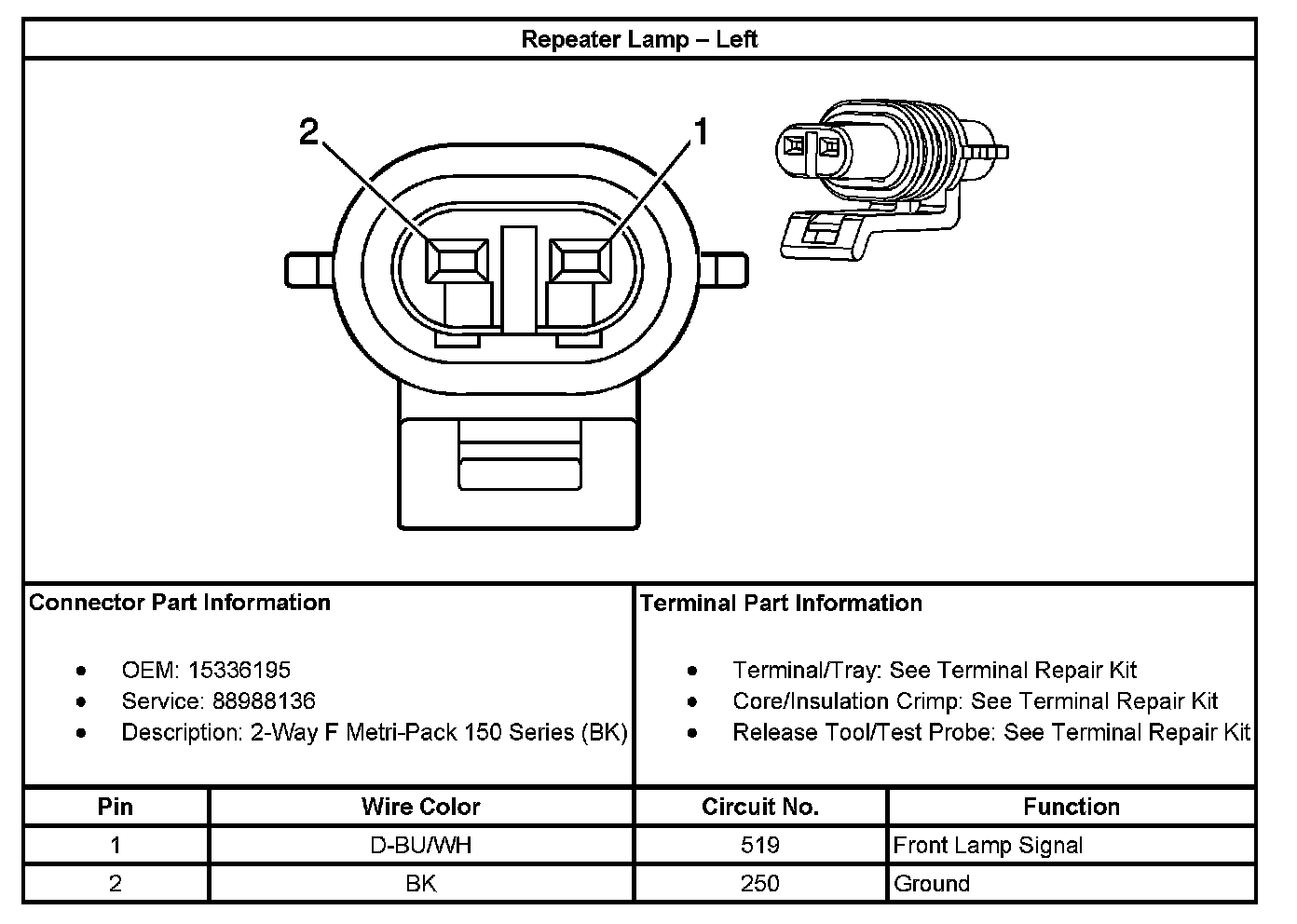

Repeater Lamp - Left:

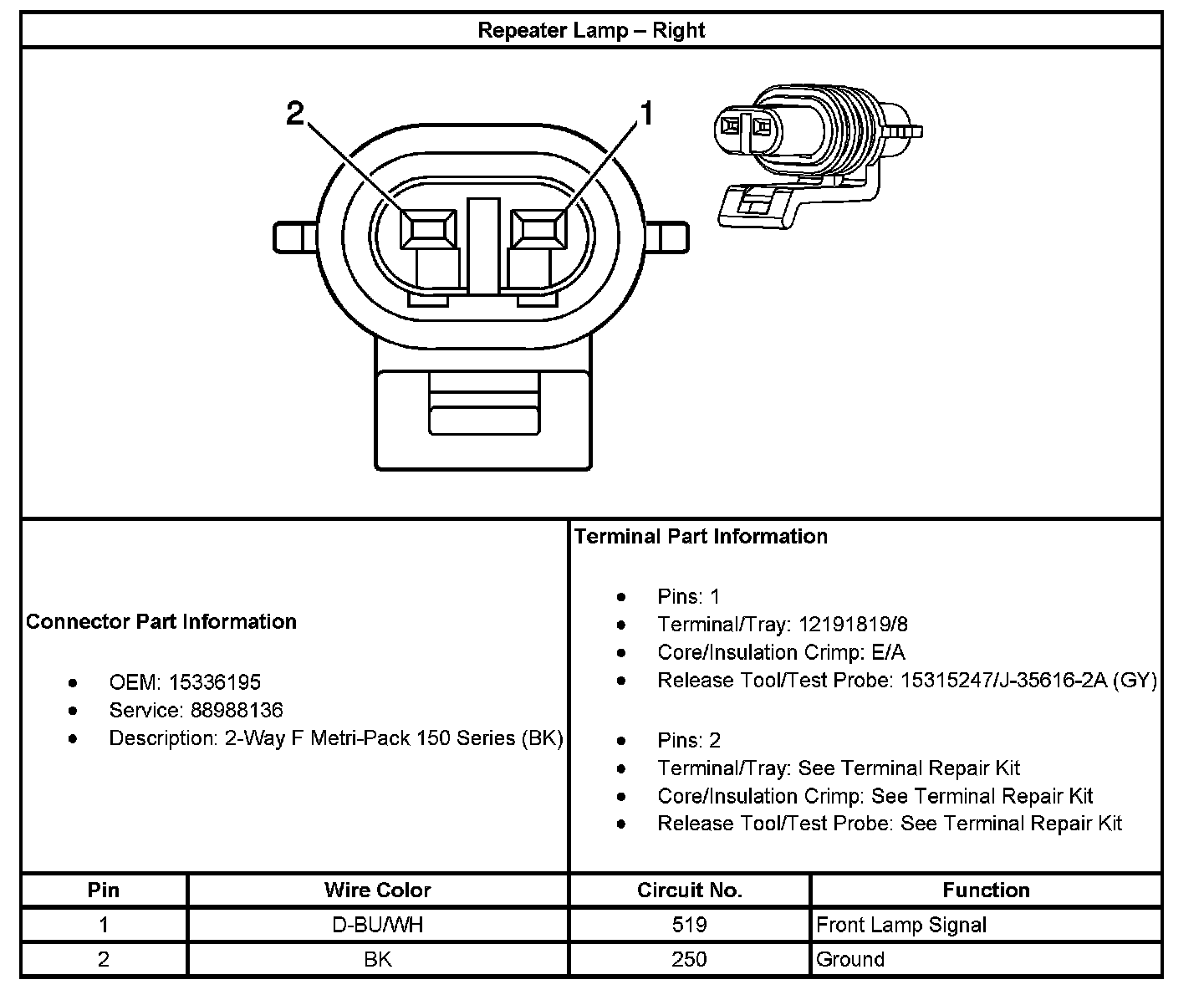

Repeater Lamp - Right:

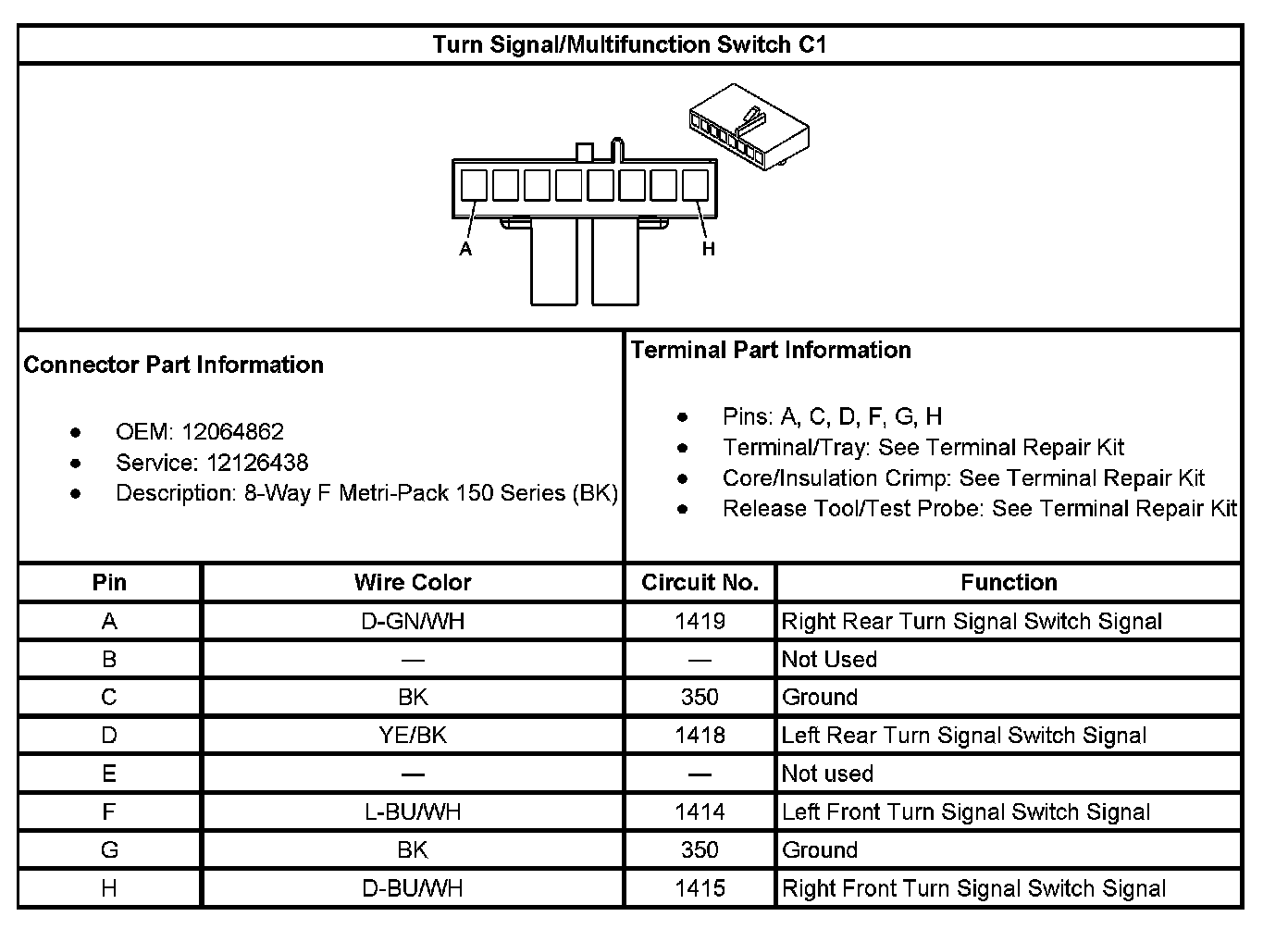

Turn Signal/Multifunction Switch C1:

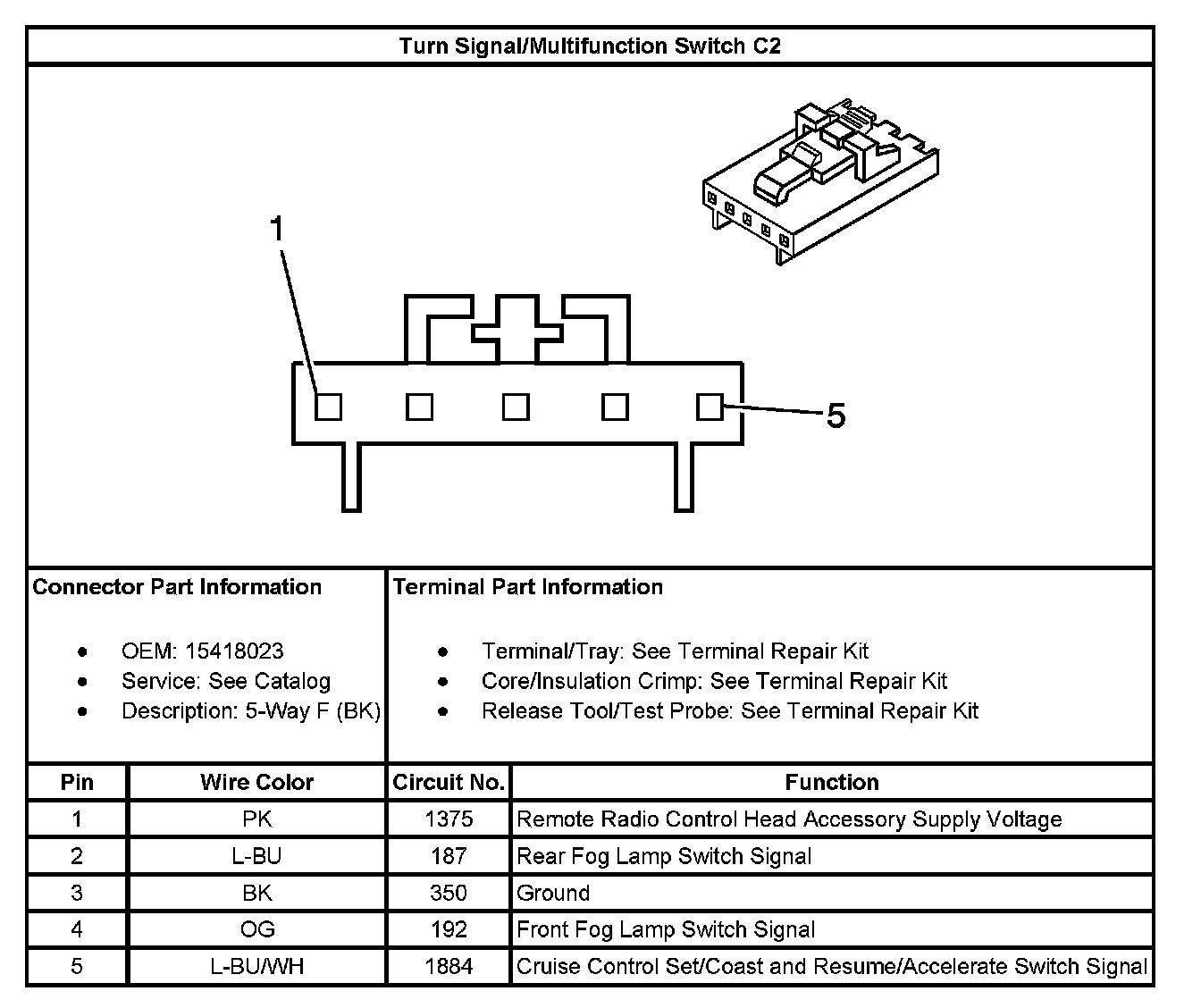

Turn Signal/Multifunction Switch C2:



Turn Signal/Multifunction Switch C3:



Turn Signal/Multifunction Switch C4:
