Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Headlamp >> Headlamp Dimmer Relay

Headlamp Dimmer Relay

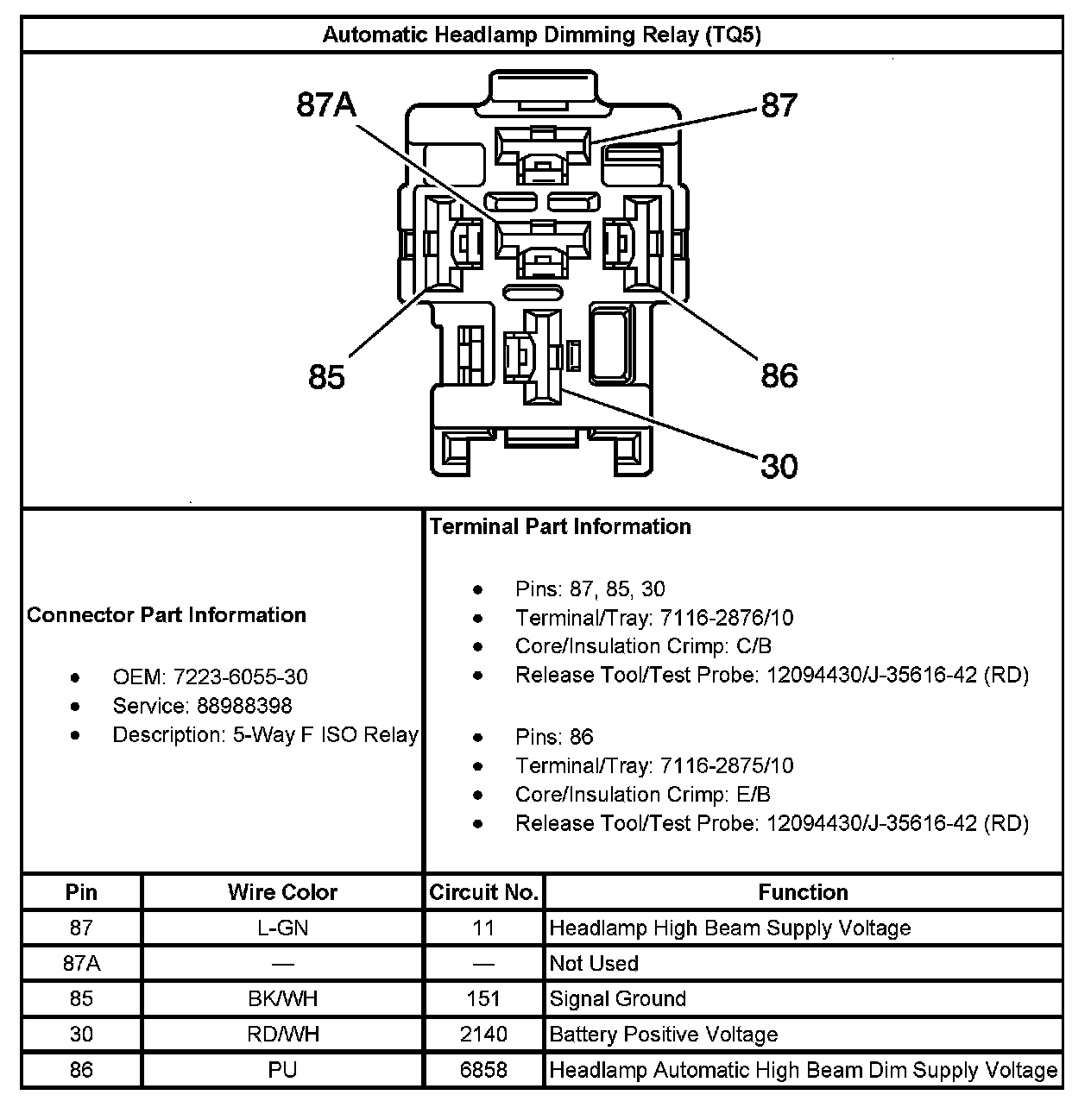

Automatic Headlamp Dimming Relay (With RPO Code TQ5):
