Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Dimmer Switch

Dimmer Switch

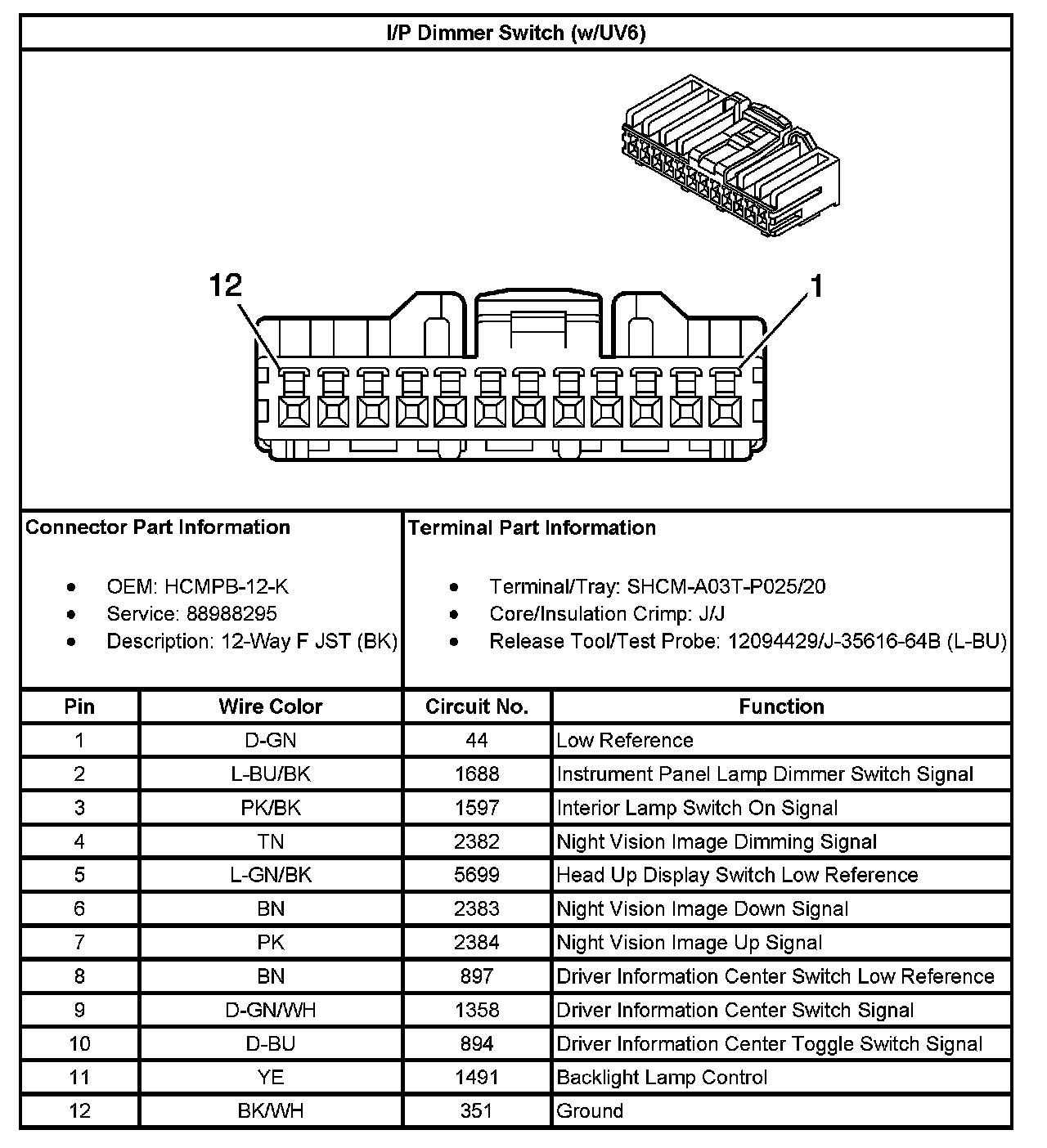

I/P Dimmer Switch (With RPO Code UV6):

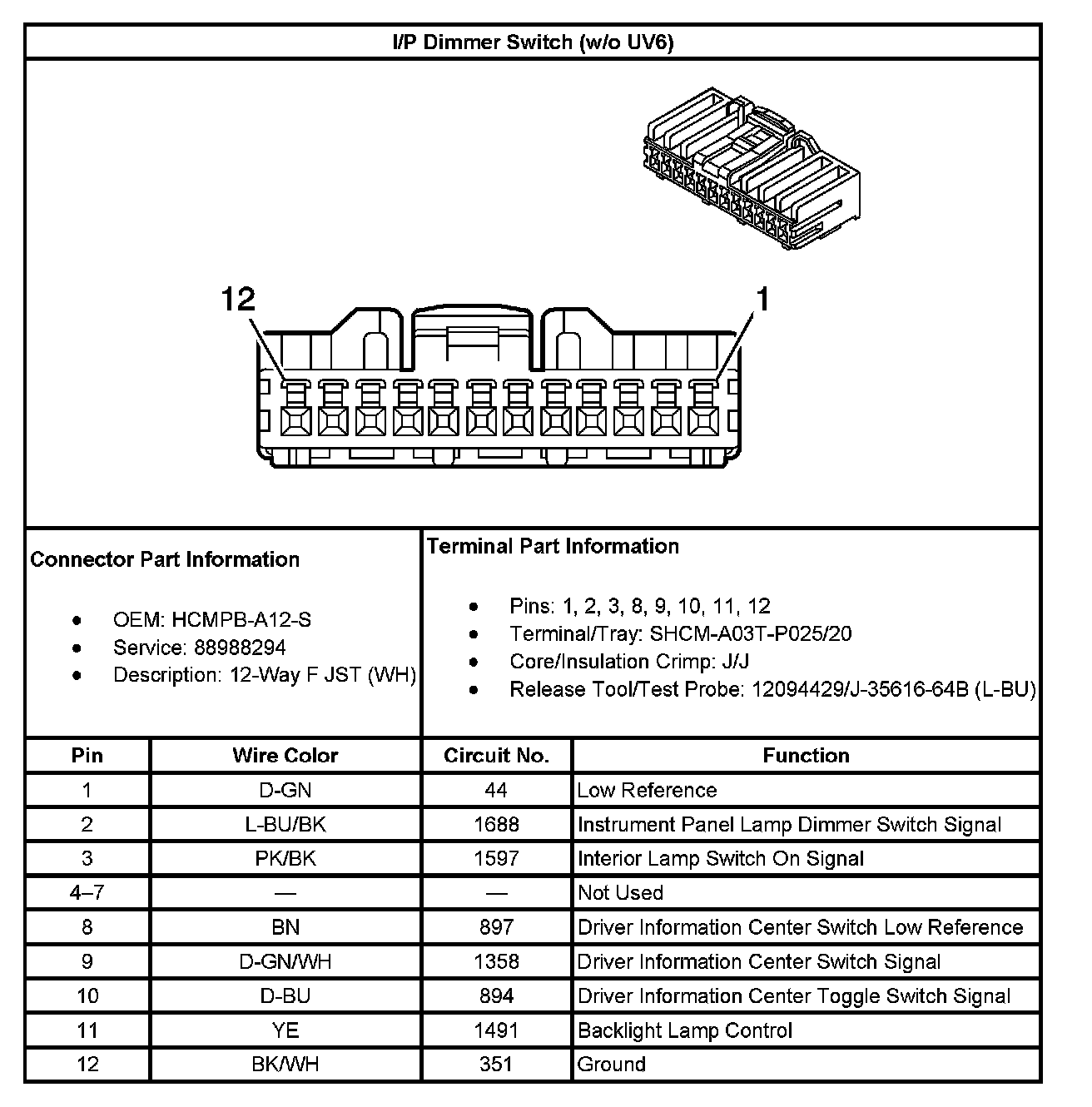

I/P Dimmer Switch (Without RPO Code UV6):
