Home >> Cadillac >> 2006 >> STS RWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp Washer Motor Relay

Headlamp Washer Motor Relay

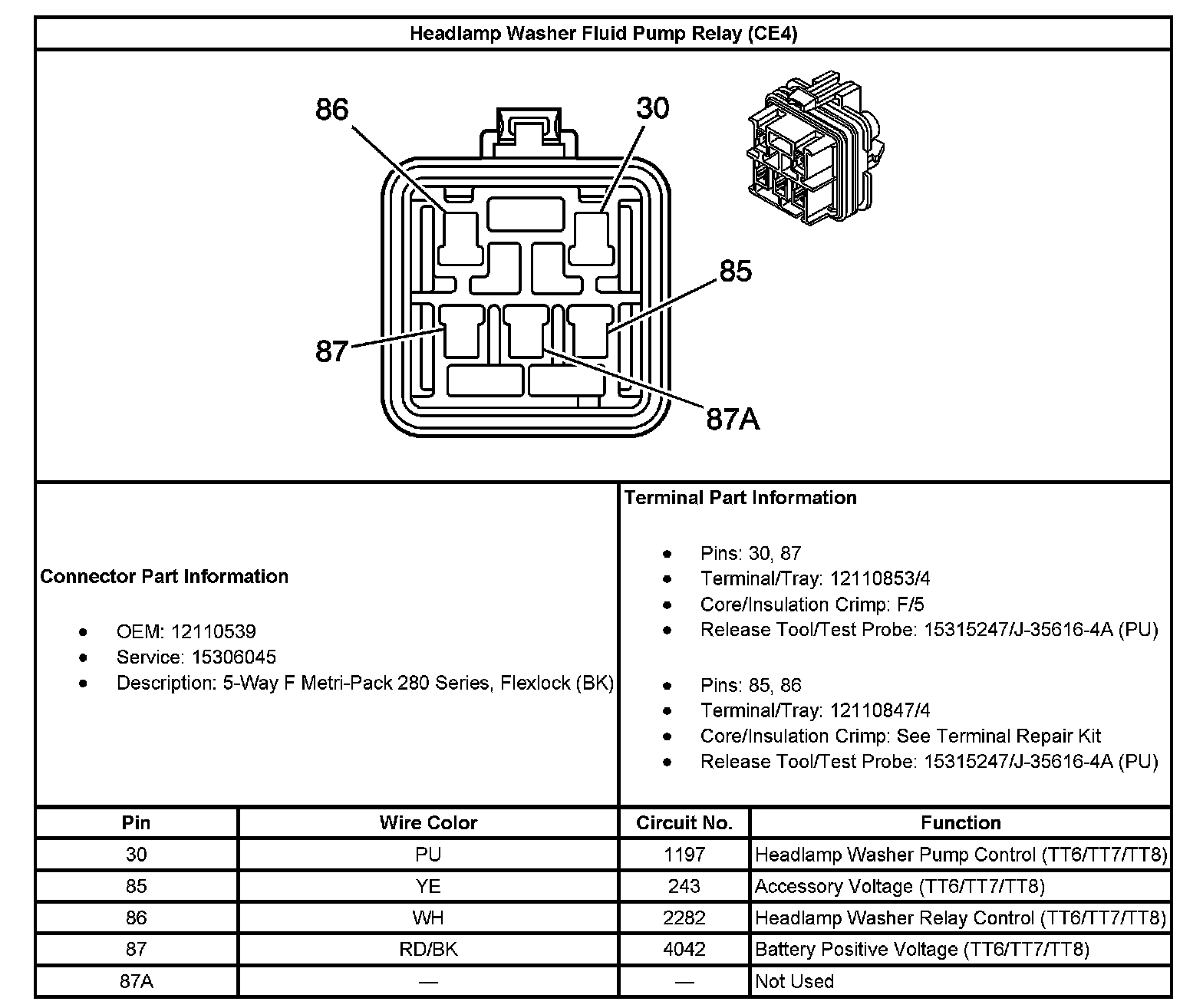

Headlamp Washer Fluid Pump Relay (With RPO Code CE4):
